Introduction:
• It uses air as raw material, molecular sieve as adsorbent, and uses the principle of pressure swing adsorption to separate oxygen and nitrogen in the air.
• Stable and reliable work, low working noise
• It can be used independently or built into the ozone equipment system.
Composition material:

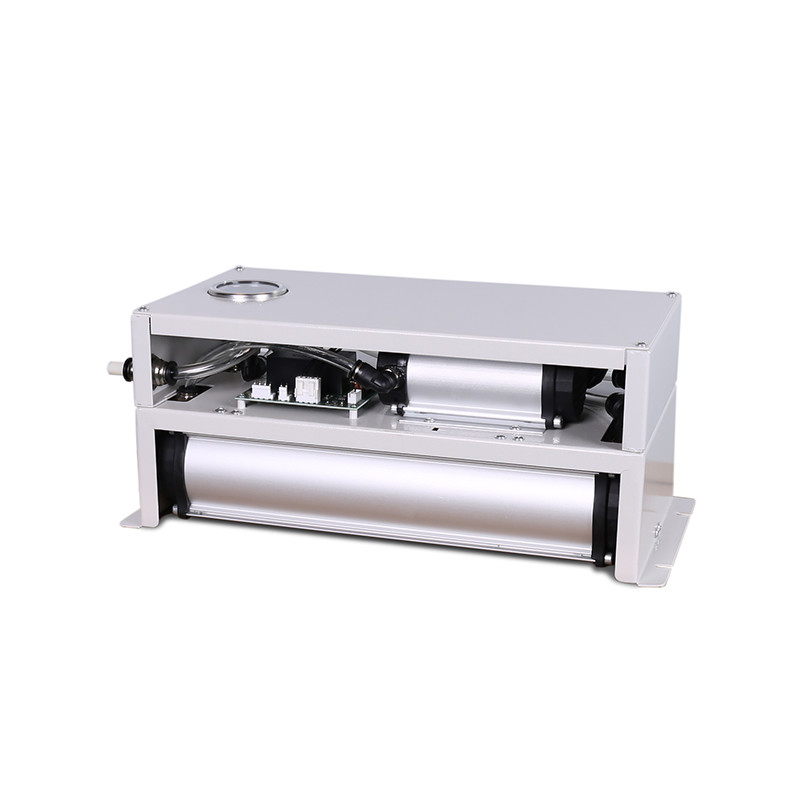

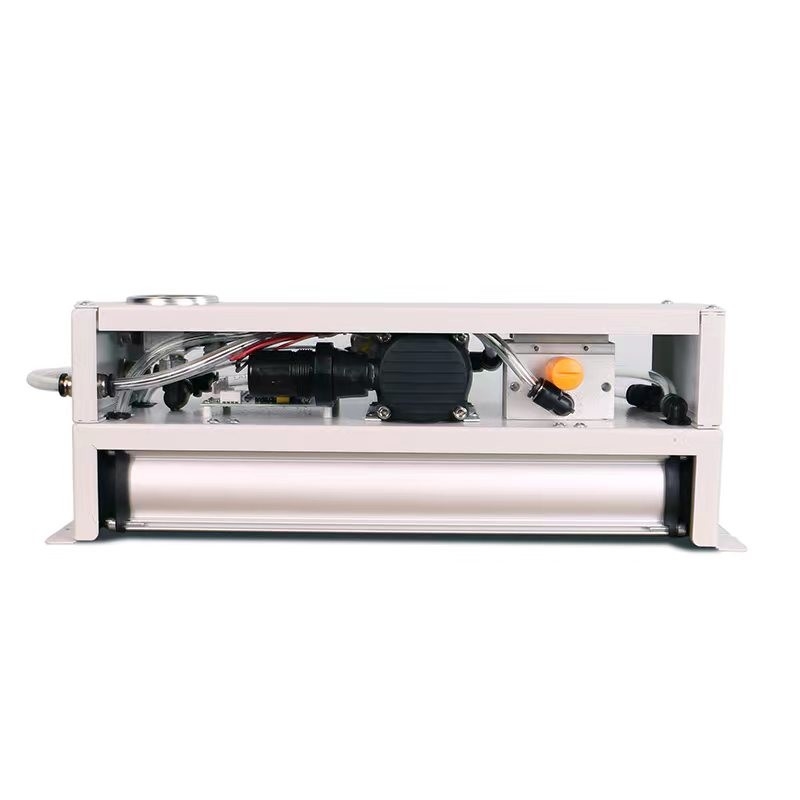

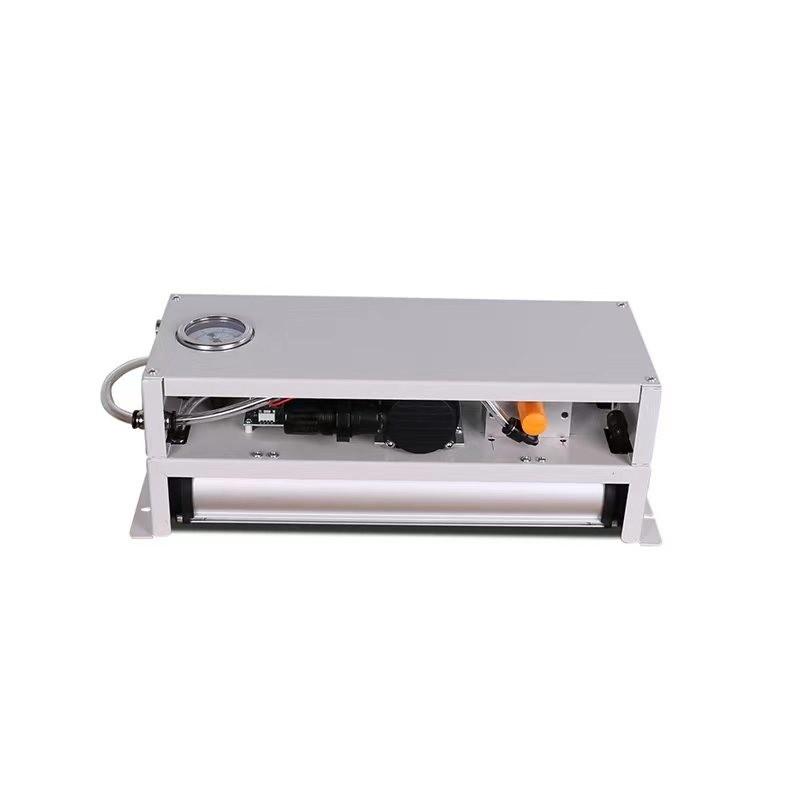

• It is composed of oxygen adsorption tower, gas collecting tank, solenoid valve, electric control board, oxygen outlet pressure regulating valve, flow restrictor, etc.
• This parts is manufactured according to the standard of medical oxygen generator, with high oxygen concentration.
Specification

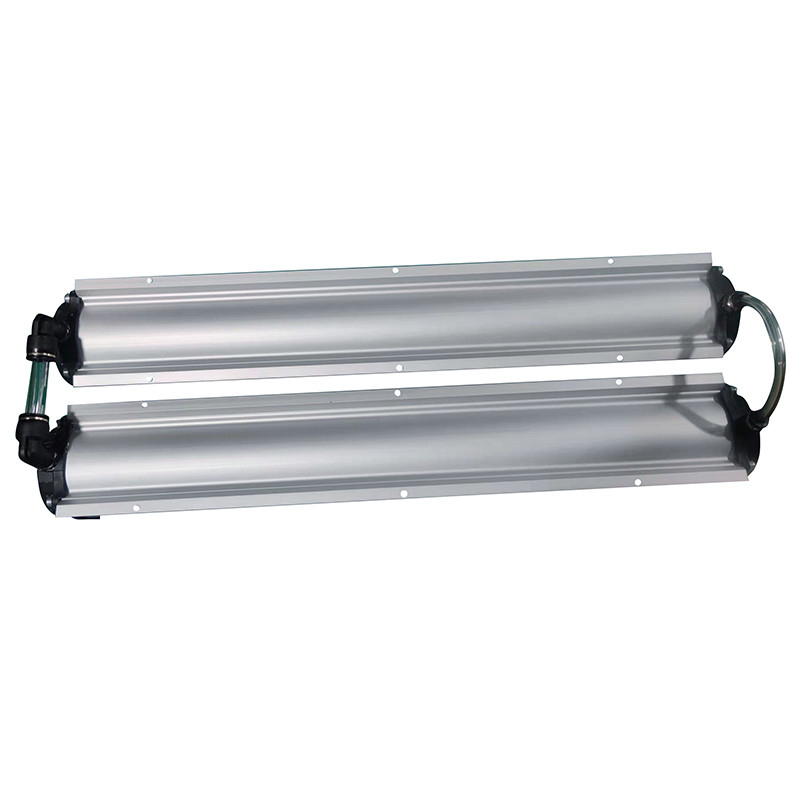

Product name | Two towers oxygen molecular sieve cylinder |
Model No. | HY-10L-G |
Oxygen concentration | 90%±3% |
Oxygen flow rate | ≥10L/min |
Gas Input | ≥140L/min@0.22MPa |
Gas dew point requirements | ≤-50℃ |
Input voltage | AC100-240V/50-60Hz |
Power consumption | ≤20W |
Oxygen pressure | 40KPa |
Ambient temperature | 5-45℃ |
Environment humidity | ≤80%RH |
Dimension | 616x185x180mm |
Net weight | 11kg |
Notice:
* Do not turn the pressure regulating valve; the pressure regulating valve requires professionals to connect the pressure gauge according to the design standard, and adjust it by reading the value of the instrument online. The pressure valve needs to be locked after the adjustment.
* If multiple two tower oxygen molecular sieve cylinder are required to synthesize an oxygen generator to use, it needs to be customized in advance.
