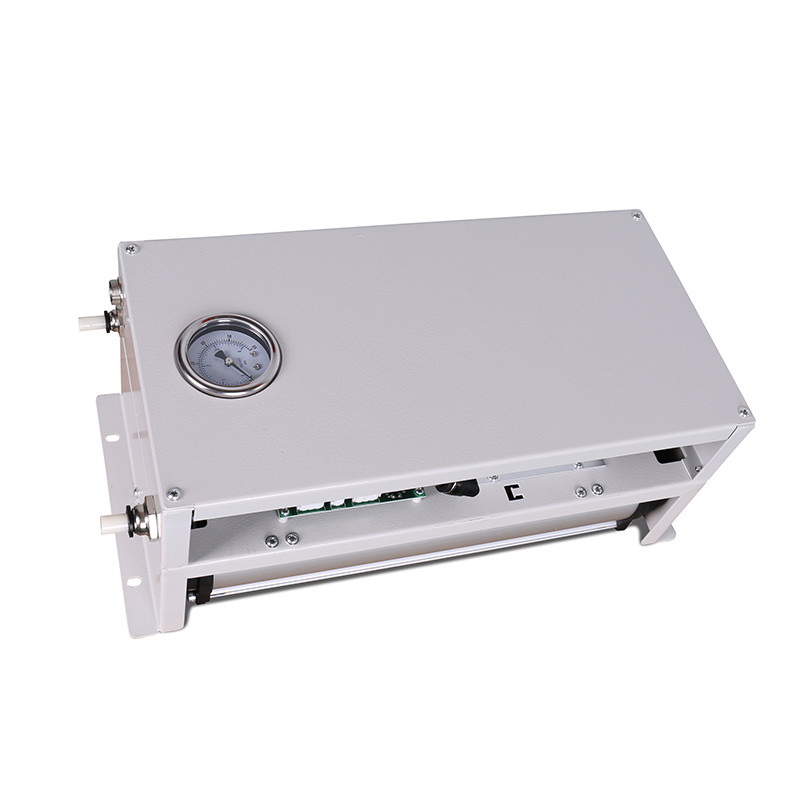

10L 8L oxygen sieve bed 5L PSA concentrator used for ozone generator
Features:
* Adopting double-row condensing radiator and powerful cooling fan, so that the high-temperature gas from the compressor can quickly form condensate droplets and be discharged.
* The multi-stage automatic water filtering function of the water filter and the dryer can fully filter the water in the compressed gas and greatly extend the service life of the molecular sieve.
* Powerful heat dissipation at the bottom and condensation technology at the top of the air compressor ensure that the air compressor can run for a long time without getting hot.
* Adopt sodium type molecular sieve molecular sieve material, which is stable and durable in operation.
* This parts is manufactured according to the standard of medical oxygen generator, with high oxygen concentration, low machine vibration and low noise.
Specification
Product name | Integrated 2 tower oxygen molecular sieve concentrator | |||
Model no. | HY-GOX3L | HY-GOX5L | HY-GOX8L | HY-GOX10L |
Oxygen output | 3L/min | 5L/min | 8L/min | 10L/min |
Oxygen concentration | ≥90%±3% | |||
Input voltage | AC220V/50Hz | |||
Power | ≤380W | ≤520W | ≤780W | ≤800W |
Oxygen output pressure | ≥40KPa | |||
Working noise | ≤48dB(A) | |||
Ambient temperature | 5-45℃ | |||
Environment humidity | ≤80%RH | |||
Dimension | 379*240*397mm | 430*258*461mm | 460*260*510 mm | 460*260*586 mm |
Net weight | 16.5kg | 22kg | 28kg | 30kg |
Notice:
In order to prevent the compressor from swinging during transportation, we fixed the compressor with cable ties at the four corners.
Before using it for the first time, please cut off the 4 cable ties at the bottom and pull it out, and then you do not need to open the case during this process.
Components :

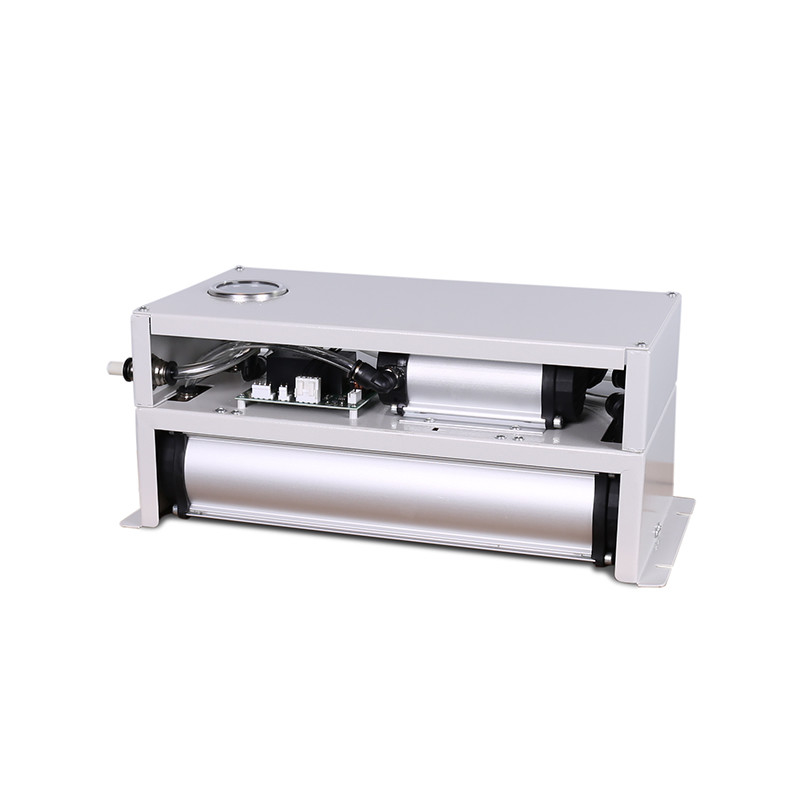

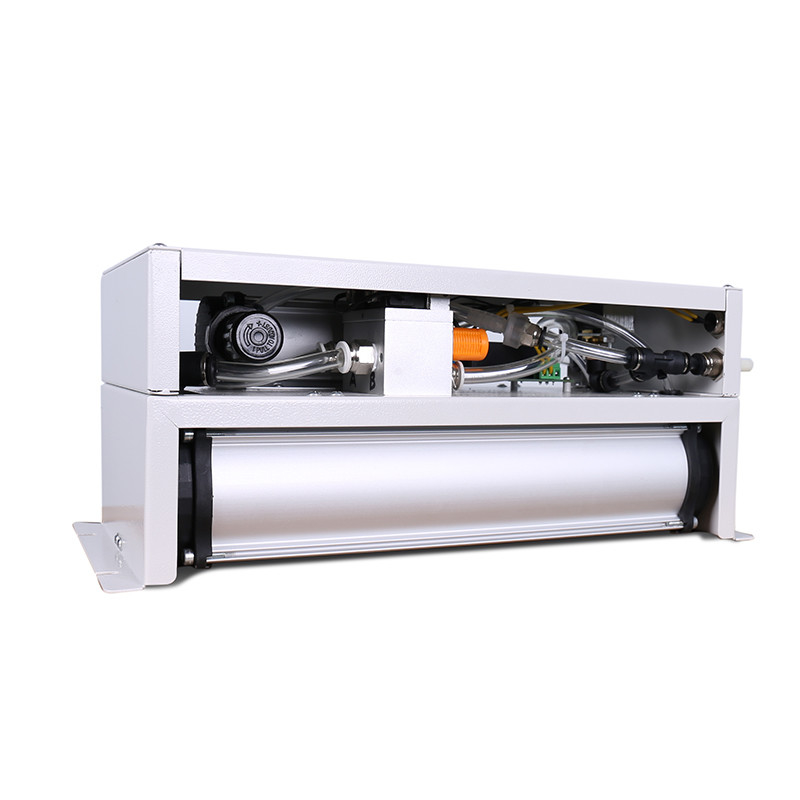

The oxygen molecular sieve concentrator is composed of an air compressor, intake filter, water filter, dryer, drain valve, oxygen adsorption tower, gas collecting tank, solenoid valve, electric control board, oxygen outlet pressure regulating valve, and oxygen flow meter etc.
