Water Treatment Mixing Equipment PVDF Tube Venturi For Mixing Ozone With Water

Water Treatment Mixing Equipment PVDF Tube Venturi For Mixing Ozone With Water

  • High Light

    molecular sieve zeolite

    ,

    refrigerated air dryer

  • Water Flow Rate
    0.05-0.25 T/Hr
  • Material
    PVDF
  • Inlet & Outlet Diameter
    Inlet & Outlet Diameter 1/5’’ External Screw Thread
  • Warranty
    One Year
  • Color
    Black
  • Usage
    Mixing Gas With Water
  • Application
    Water Treatment
  • Size
    57mm
  • MOQ
    1piece
  • Item
    Venturi
  • Place of Origin
    Guangzhou, China
  • Brand Name
    Netech
  • Certification
    ISO9001
  • Model Number
    A12057
  • Minimum Order Quantity
    1 piece
  • Packaging Details
    Carton packing
  • Delivery Time
    1-3 working days
  • Payment Terms
    T/T, Western Union, Paypal
  • Supply Ability
    1000 Piece/Pieces per Month

Water Treatment Mixing Equipment PVDF Tube Venturi For Mixing Ozone With Water

Water Treatment Mixing Equipment PVDF Tube Venturi For Mixing Ozone With Water


Specifications

1. PVDF material
2. Connect with ozone generator
3. For water treatment system



Introduction:

Venturi is designed to be used with ozone generator for water treatment. It is made of anti-ozone material, PVDF. Connected to your existing filtration system it allows an ozone injection point, where the vacuum effectively sucks the ozone gases into the water flow.


Specification:

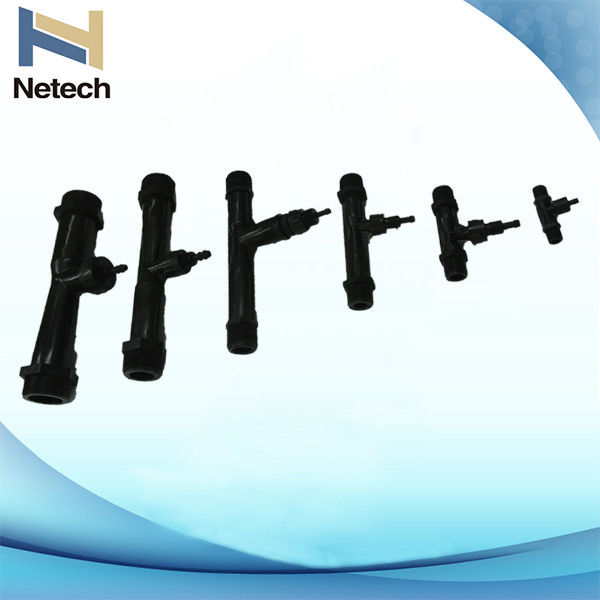

Venturi



Marks

Model

Quantity
(PC)

Size
(mm)

              Water Treatment Mixing Equipment PVDF Tube Venturi For Mixing Ozone With Water 0



1

A12057

1

57



2

A25100

1

100



3

A32235

1

235



4

A25152

1

152



5

A48275

1

275



6

A58295

1

295



Venturi is designed to be used with an ozone generator for water treatment. It is made of anti-ozone material, PVDF. Connected to your existing filtration system it allows an ozone injection point, where the vacuum effectively sucking the ozone gases into the water flow



Specifications



Model: A12057
Material:PVD
Water flow rate:0.05-0.25 T/Hr
Specification:

1.   Inlet & Outlet diameter 1/5’’ external screw thread

2.   Valve bonnet of Gas Inlet is 1/8”;

3.   flexible hose is 1/4’’;

4.   Length: 57 mm

Model: A25100
Material:PVDF
Water flow rate: 0.1-1 T/Hr
Specification:

1.   Inlet & Outlet diameter 1/2’’ external screw thread

2.   Valve bonnet of Gas Inlet is 1/4”;

3.   flexible hose is 1/4’’;

4.   Length: 100 mm

Model : A32235
Material: PVDF
Water flow rate:3-10 T/Hr
Specification:

1.   Inlet & Outlet diameter 1’’ external screw thread.

2.   Valve bonnet of Gas Inlet is 1/2”;

3.   flexible hose is 3/8”

4.   Length: 230 mm







Model: A25152
Material: PVDF
Water flow rate: 1~3 T/Hr
Specification:

1.   Inlet & Outlet diameter3/4’’ external screw thread

2.   Valve bonnet of Gas Inlet is 1/4”;

3.   flexible hose is 1/4’’;

4.   Length: 152 mm

Model: A48275
Material: PVDF
Water flow rate:10~25 T/Hr
Specification:

  1. Inlet & Outlet diameter 1.5’’ screw thread
  2. Valve bonnet of Gas Inlet is 1/2”;
  3. flexible hose is 1/2’’;
  4. Length: 275mm

Model: A58295
Material: PVDF
Water flow rate: 25~50T/Hr
Specification:

1.   Inlet & Outlet diameter 2’’ screw thread

2.   Valve bonnet of Gas Inlet is 1.25”;

3.   flexible hose is 1/2’’;

4.   Length: 295mm





Various Applications:

1. Air purification, removing odors, smoke, mold, etc.
2. Water clean for home, commercial, industrial used.
3. ozone for drinking water treatment and bottling clean.
4. ozone for aquaculture water purification.
5. ozone for removing iron and manganese.
6. ozone for reduce BOD, COD, wastewater, sewage, effluent treatment.
7. ozone for food storage, keep fruit, vegetable, products longer shelf life.
8. ozone for laundry system.
9. ozone for industrial polution control, removing odors, harmful gas.
10. ozone for food processing, factory, workshop clean.
11. ozone for milling.
12. ozone for fire or flood restoration.
13. ozone for agriculture
14. ozone for used
