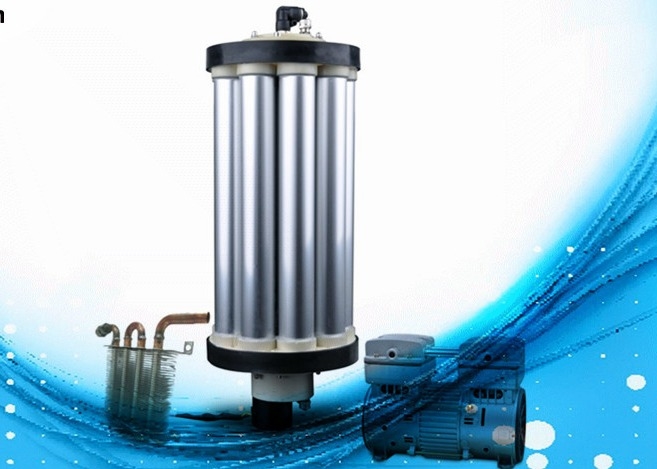

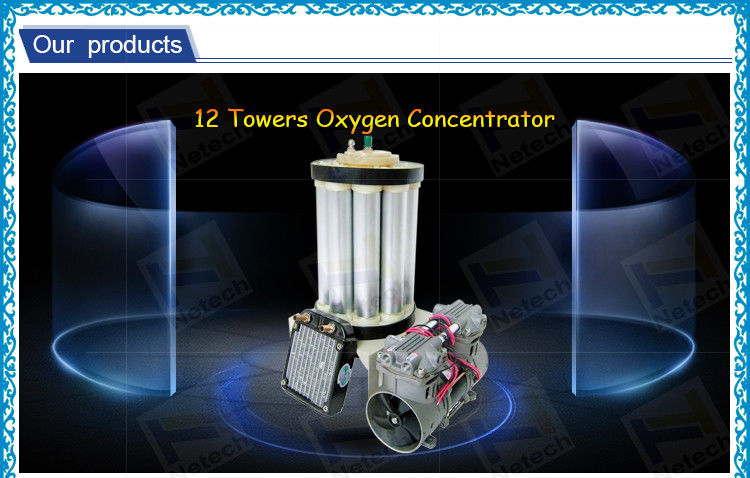

12 Towers Oxygen Concentrator Sieve / Zeolite Molecular Sieve
1. ed products
NT-OX series molecular sieve is an air separation plant which has already obtained domestic .
2.Rational construction
Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
3. Easy to control
Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.
4. The oxygen output is stable and continuously
5. Low-pressure oxygen production working pressure 1.5-2 Bar.
6. Working Voltage 110V/220V is available
Specifications:
Item |
Unit |
NTOX3AL |
NTOX5AL |
NTOX7AL |
NTOX10AL |
NTOX15AL |
Oxygen output |
LPM |
3 |
5 |
7.5 |
10 |
15 |
Oxygen concentration |
% |
90%±3% |
90%±3% |
90%±3% |
90%±3% |
90%±3% |
Air flow rate |
LPM |
36-45 |
60-75 |
90-115 |
90-115 |
180-200 |
Pressure(inlet) |
Mpa |
0.14-0.18 |
0.14-0.2 |
0.15-0.21 |
0.18-0.25 |
0.35 |
Pressure(outlet) |
Mpa |
0.06-0.08 |
0.06-0.08 |
0.06-0.08 |
0.06-0.08 |
0.06-0.08 |
Temperature |
℃ |
indoor temperature |
||||
Relative humidity |
% |
≤ 70%±10% |
||||
Noise |
Db |
≤60 |
≤60 |
≤60 |
≤60 |
≤60 |
Dimension |
mm |
Ф200×310 |
Ф200×430 |
Ф200×500 |
Ф200×560 |
Ф200×880 |
Net weight |
kg |
5.5 |
7 |
8 |
11 |
12.5 |
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
