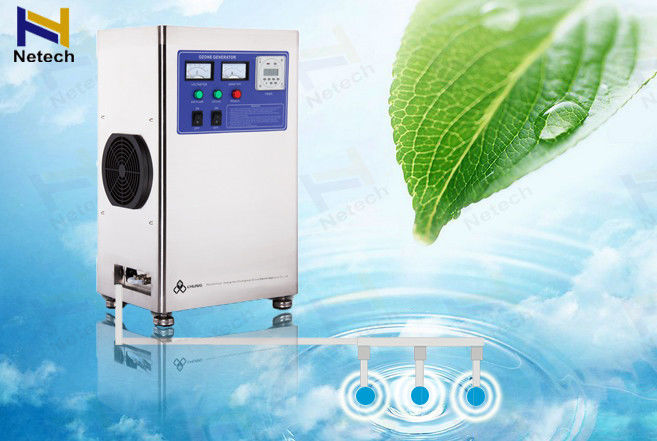

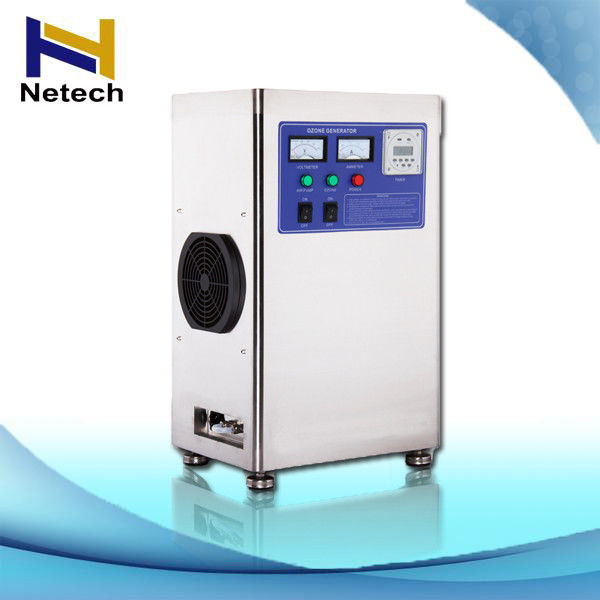

Water Treatment Ozone Generator 2 / 3 / 5 / 6 / 10 / 15 / 20G / Hr Ozone Output
Quick details
Brand Name: Netech
Model Number: NT-T-N
Certification: domestic
Ozone output way: air cooling
Description
| Gas source | air source or outside oxygen source |
| Material | Ceramic tube |
| Cooling | Air cooling |
| Power supply | 220V,50HZ |
| Commodity | Ozone water system |
| Ozone output | 2g/3g/5g/6g/10g/15g/20g |
Control panel:
Voltmeter, Ampere meter, Switch, Timer, Working light, Power light etc.
Timer: One or Two recycle working time
Applications:
1. treatment industry: clean ward operating room, treatment equipment, aseptic room, etc
2. Fruits and vegetables: keep fruits and vegetables fresh and store them
3. Sea food factory: Remove smell of sea food factory and kill bacterias , clean production water supply.
4. Slaughtering: Remove smell of slaughtering and kill bacteria, clean production water supply.
5. Poultry factory: Remove smell of poultry factory and kill bacteria ,clean water for poultry feeding.
6. Commercial use in House, hotel, Office, KTV, Super Market, Fruit shop etc.
Air Purifier: Remove formaldehyde, benzene compounds, Smoke, Odors, Molds, Virus to fresh air.
Water purifier: clean production Water supply.
7. Bottle Water, Domestic Water, Well Water, Pool Water cleanion & clean
Features:
1. Built in Domestic ed Product -Air cooling ceramic ozone generator
2. Built in Automatic air dryer, Feed dry air or outside oxygen source
3. Connect with external ozone injector for water treatment
4. It can be Movable with wheels & Handles or Wall mounted.
Specification:
| Item | Unit | NT-T | ||||||
| 2G | 3G | 5G | 6G | 10G | 15G | 20G | ||
| Oxygen flow rate | LPM | 0.5~2 | 1~3 | 1.2~3 | 1.5~3.5 | 2.4~6 | 3.6~9 | 3~10 |
| Ozone concentration | Mg/L | 28~50 | 28~65 | 32~60 | 28~56 | 32~60 | 32~60 | 38.9~42 |
| Ozone output | G/Hr | 1.5~3.0 | 4~5.0 | 4.3~5.7 | 5.0~5.8 | 8.6~14.5 | 13~17 | 18.6~20 |
| Power | W | 115 | 135 | 160 | 185 | 260 | 330 | 400 |
| Air flow rate (Suggested) | LPM | 40~60 | 50~75 | 50~90 | ||||
| Compressed air pressure | Mpa | 0.025 | ||||||
| Fuse of power supply | A | 3 | 5 | 5 | 5 | |||
| Size | cm | 36×26×61 | 40×30×77 | |||||
| Net Weight | kg | 11.25 | 11.30 | 11.50 | 18 | 20 | 35 | |
Question and answer
♦ Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one dead reported caused by ozone poisoning.
♦ Does the ozone generator work efficiently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide.It can kill escherichia coli,
bacteria efficiently and resolve the harmful material in a short
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
Our products are sold all over the world, you can rest assured.
