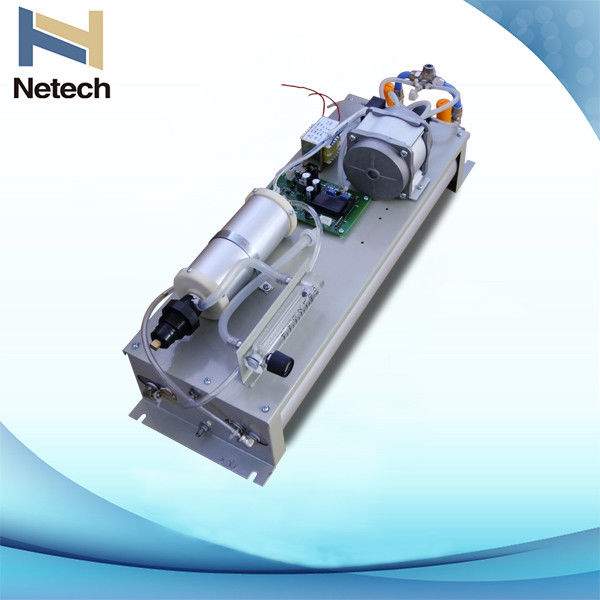

3L 5L 7L 10L 15L Oxygen Output Portable Oxygen Apparatus Oxygen Molecular Seive

Place of Origin Guangdong China
Brand Name Netech
Model Number NT-OX
Minimum Order Quantity 1 set
Price For further discussion
Packaging Details Safe double carton package with foam inside for protection
Delivery Time 3-5 working days after received your payment
Payment Terms L/C D/A D/P T/T Western Union Credit Card/ Paypal
Supply Ability 500 sets per month
Product Details
Power 280/450/650 W Pressure(outlet) 0.06-0.08 Mpa
Weight 5.5/5.8/7.8 KG Pressure(inlet) 0.18-0.2 Mpa
Ozone Parts Weight 0.50-0.65kg Oxygen Concentration 90%±3%
Dimension 550*160*80/550*180*80/610*310*120 Mm Relative Humidity ≤85%
Oxygen Output 3L 5L 7L 10L 15L MOQ 1 Set
High Light

oxygen concentrator repair

,

oxygen molecular sieve

Leave a Message
Product Description

3L 5L 7L 10L 15L Oxygen Output  Portable Oxygen Apparatus Oxygen Molecular Seive







Quick Detail



oxygen generator concentrator
1. About 95% concentration
2. Stable oxygen output
3. Each tower working independently
4. Durable


Description



Warranty 1 year

Noise   ≤ 60Db

Application   oxygen increasing

Output    3L 5L 7L 10L 15L

outlet pressure    0.06~0.08Mpa

oxygen purity    3% + - 3%

technology  pressure swing absorbtion (PSA)

                        oxygen to water with extra air compressor to increase the pressure

   usage          increase oxygen in the air or water

                       humidity environment no problem ,with refrigerating dryer







Item Unit NTOX3AL NTOX5AL NTOX7AL NTOX10AL NTOX15AL
Oxygen output LPM 3 5 7.5 10 15
Oxygen concentration % 90%±3% 90%±3% 90%±3% 90%±3% 90%±3%
Air flow rate LPM 36-45 60-75 90-115 90-115 180-200
Pressure(inlet) Mpa 0.14-0.18 0.14-0.2 0.15-0.21 0.18-0.25 0.35
Pressure(outlet) Mpa 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08
Temperature indoor temperature
Relative humidity % ≤ 70%±10%
Noise Db ≤ 60 ≤ 60 ≤ 60 ≤ 60 ≤ 60
Dimension mm Ф200 * 310 Ф200 * 430 Ф200 * 500 Ф200 * 560 Ф200 * 880
Net weight kg 15.70 18.30 19.30 30.60 32.5



Instruction

12 Towers Oxygen Concentrator
1. ed products NT-OT series molecular sieve is an air separation plant which has already obtained domestic .
2. Rational construction Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
3. Easy to control Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.
4. The oxygen output is stable and continuously
5. Low-pressure oxygen production working pressure less than 3 KG.


Appliance of oxygen machine:


•   Welding / Brazing Furnace Enrichment
•  Fermentation Glass Industry
•  Fish Farming Ozone Generator
•  Sewage Treatment Pulp & Paper
•  Chemical Oxidation Rough Cutting
•  Battery Manufacture Melting
•  Mini-Steel Mills Cement & Lime Kilns
•  Metal Spraying Copper Smelting




Quality control



Every procedure has personnel inspection.

All the products must be tested and qualified before packaging.



After sales service



We provide 12 months free maintenance.

The buyer should return the product in the original conditions to us and should

bear the shipping costs for return.
