0.5T - 50T PVDF Venturi Mixer Water Treatment Mixing Device Venturi

  • 0.5T - 50T PVDF Venturi Mixer Water Treatment Mixing Device Venturi
  • 0.5T - 50T PVDF Venturi Mixer Water Treatment Mixing Device Venturi
  • 0.5T - 50T PVDF Venturi Mixer Water Treatment Mixing Device Venturi
  • 0.5T - 50T PVDF Venturi Mixer Water Treatment Mixing Device Venturi
Place of Origin Guangzhou, China
Brand Name Netech
Model Number A25100
Minimum Order Quantity 1 piece
Price For further discussion
Packaging Details Carton packing
Delivery Time 1-3 working days
Payment Terms T/T, Western Union, Paypal, L/C
Supply Ability 1000 Piece/Pieces per Month
Product Details
Water Flow Rate 0.1-1 T/Hr Material PVDF
Warranty One Year Model A25100
Usage Mixing Gas With Water Application Water Treatment
Size 100mm Function Mixing Ozone And Water
High Light

aquarium protein skimmer

,

refrigerated air dryer
Leave a Message
Product Description

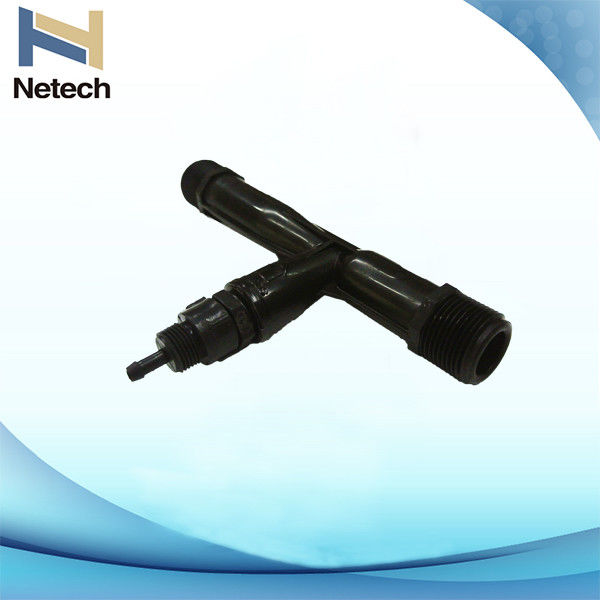

0.5T-50T PVDF Venturi Mixer for Water Treatment Mixing Device Venturi


Specifications

1. PVDF material
2. Connect with ozone generator
3. For water treatment system


Introduction:

Venturi is designed to be used with ozone generator for water treatment. It is made of anti-ozone material, PVDF. Connected to your existing filtration system it allows an ozone injection point, where the vacuum effectively sucks the ozone gases into the water flow.


Specification:

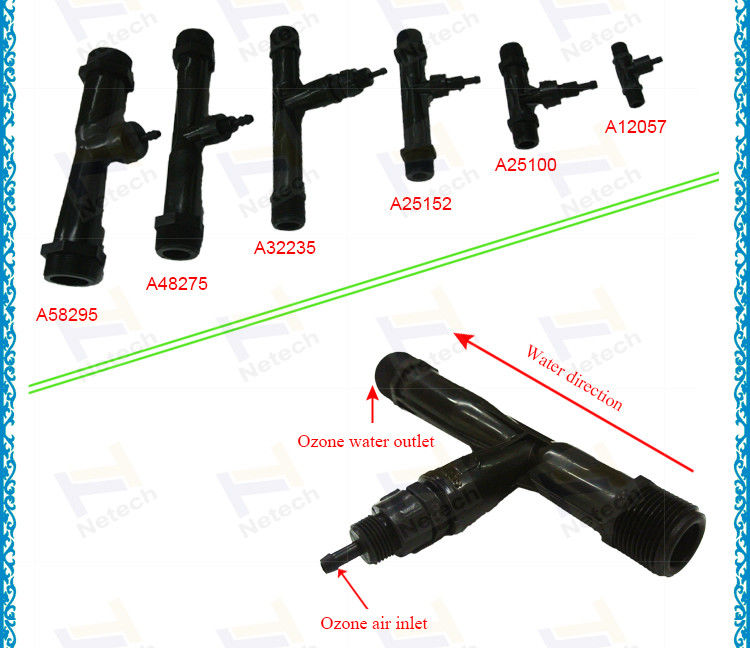

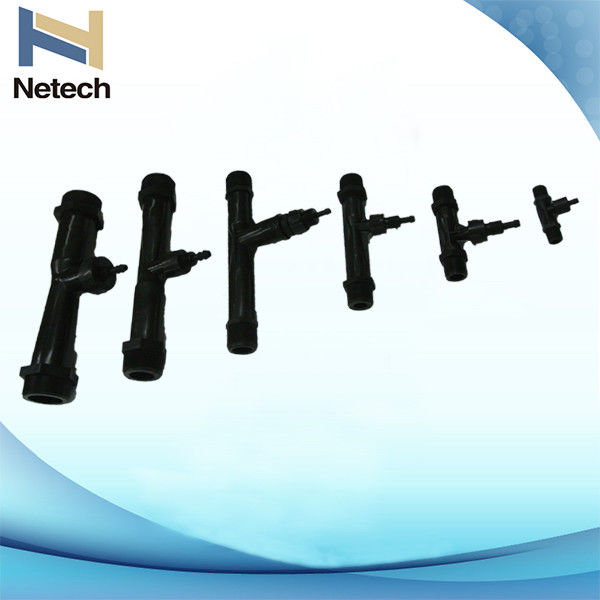

Venturi



Marks

Model

Quantity
(PC)

Size
(mm)

              0.5T - 50T PVDF Venturi Mixer Water Treatment Mixing Device Venturi 0



1

A12057

1

57



2

A25100

1

100



3

A32235

1

235



4

A25152

1

152



5

A48275

1

275



6

A58295

1

295



Venturi is designed to be used with an ozone generator for water treatment. It is made of anti-ozone material, PVDF. Connected to your existing filtration system it allows an ozone injection point, where the vacuum effectively sucking the ozone gases into the water flow



Specifications



Model: A12057
Material:PVDF
Water flow rate:0.05-0.25 T/Hr
Specification:

1.   Inlet & Outlet diameter 1/5’’ external screw thread

2.   Valve bonnet of Gas Inlet is 1/8”;

3.   flexible hose is 1/4’’;

4.   Length: 57 mm

Model: A25100
Material:PVDF
Water flow rate: 0.1-1 T/Hr
Specification:

1.   Inlet & Outlet diameter 1/2’’ external screw thread

2.   Valve bonnet of Gas Inlet is 1/4”;

3.   flexible hose is 1/4’’;

4.   Length: 100 mm

Model : A32235
Material: PVDF
Water flow rate:3-10 T/Hr
Specification:

1.   Inlet & Outlet diameter 1’’ external screw thread.

2.   Valve bonnet of Gas Inlet is 1/2”;

3.   flexible hose is 3/8”

4.   Length: 230 mm







Model: A25152
Material: PVDF
Water flow rate: 1~3 T/Hr
Specification:

1.   Inlet & Outlet diameter3/4’’ external screw thread

2.   Valve bonnet of Gas Inlet is 1/4”;

3.   flexible hose is 1/4’’;

4.   Length: 152 mm

Model: A48275
Material: PVDF
Water flow rate:10~25 T/Hr
Specification:

  1. Inlet & Outlet diameter 1.5’’ screw thread
  2. Valve bonnet of Gas Inlet is 1/2”;
  3. flexible hose is 1/2’’;
  4. Length: 275mm

Model: A58295
Material: PVDF
Water flow rate: 25~50T/Hr
Specification:

1.   Inlet & Outlet diameter 2’’ screw thread

2.   Valve bonnet of Gas Inlet is 1.25”;

3.   flexible hose is 1/2’’;

4.   Length: 295mm





Various Applications:

1. Air purification, removing odors, smoke, mold, etc.
2. Water clean for home, commercial, industrial used.
3. ozone for drinking water treatment and bottling clean.
4. ozone for aquaculture water purification.
5. ozone for removing iron and manganese.
6. ozone for reduce BOD, COD, wastewater, sewage, effluent treatment.
7. ozone for food storage, keep fruit, vegetable, products longer shelf life.
8. ozone for laundry system.
9. ozone for industrial polution control, removing odors, harmful gas.
10. ozone for food processing, factory, workshop clean.
11. ozone for milling.
12. ozone for fire or flood restoration.
13. ozone for agriculture
14. ozone for used



0.5T - 50T PVDF Venturi Mixer Water Treatment Mixing Device Venturi 1
