    Product Details:

    Place of Origin: Guangdong China
    Brand Name: Netech
    Model Number: NT-DGY250

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: for futher discussion
    Packaging Details: Safe double carton package with foam inside for protection
    Delivery Time: 40 days after payment confirmed
    Payment Terms: EXW / FOB / CIF
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Ozone Output: 250 G/h Material: Ozone Enamel Tube
    Application: Water Treatment,jean Color Fading Working Frequency: 800 Hz
    Operating Voltage: 3800V-4200V Cooling Water Flow Way: 0.3-0.4 M3/h
    Oxygen Feed Flow Rate: 2-2.5M3/h

    250g 500g Oxygen Source Industrial Ozone Generator Customization





    1.Applications

    Ozone be used in chemical, petroleum, papermaking, textile, fine chemical and flavors and fragrances industry as the oxidant, catalyst.



    Its super-oxidation capacity and easy to cut off the associative key of Alkenes, Alkynes, and Benzene organics, increase the process oxidation, synthesis of new compounds.



    Because the high-speed, high efficiency, low energy consumption, ozone being more and more popular for industrial and scientific research.



    Recently years, ozone is widely used in industrial sewage water treatment as it has the ability of high kill rate of bacteria, viruses and other microorganisms with high speed, and complete removing the organic compounds and other pollutants without creating secondary pollution, also can reduce the biological oxygen demand (BOD) and chemical oxygen demand (COD), remove nitrite, suspended solids and decolorization in water.



    2Technical Description

    1. Use enamel tubes for the core parts of ozone generator. The anti-force capability of resistant electricity is much better than glass and ceramic tubes.

    2. In order to ensure the safety and continuously operating of ozone discharge, each discharge cell is equipped with separated safety appliance. Single discharge unit failure does not affect the normal operation of other units.



    3. Discharge chamber

    1. Use stainless steel for the case, resistant to rust & corrosion, and can effectively prevent the cooling water fouling.



    4. High frequency of power supply

    1. Precise setting the Voltage and Working frequency. Output frequency resolution can be up to ± 0.1Ht. Voltage Precision ±1V.

    2. Has a perfect overload, automatic current-limiting, overpressure, short circuit, lack of phase and power-off protection.



    5. High voltage transformer

    1. Using Mn-Zn ferrites for magnetic core. Small wastage of iron core / low Resistivity / low temperature coefficient / high rate of dynamic permeability under high frequency working condition.

    2. Using special cables of high frequency & stranded conductor to reduce the skin effect of high-frequency current.



    NT-DGY 250G Ozone System Technical Parameters:



    Item NT-DGY250 Ozone Generator
    Ozone Output (G/Hr) 250 G/Hr
    Input Power Supply Voltage AC380V/50Hz/ three-phase four-wire
    Ozone Power 2-2.5KW/h
    Operating Voltage 3800V-4200V
    Working Frequency 800Hz
    Ozone Concentration 250G/H
    Oxygen Feed Flow Rate 2-2.5M3/h
    Air Source Dew Point -45℃
    Working Pressure of Discharge chamber 0.05-0.1MPa
    Air out Temperature ≤30℃
    Inlet Cooling Water Temperature ≤20℃
    Cooling Water Temperature Rise 4-6℃
    Cooling Water Flow 0.3-0.4 M3/h




    Remark:

    1. Different working condition there will be10%-20% different of ozone capacity.

    2. We can customize according to our customer's requirements





    NOTE: Pictures for reference only, subject to our existing products.

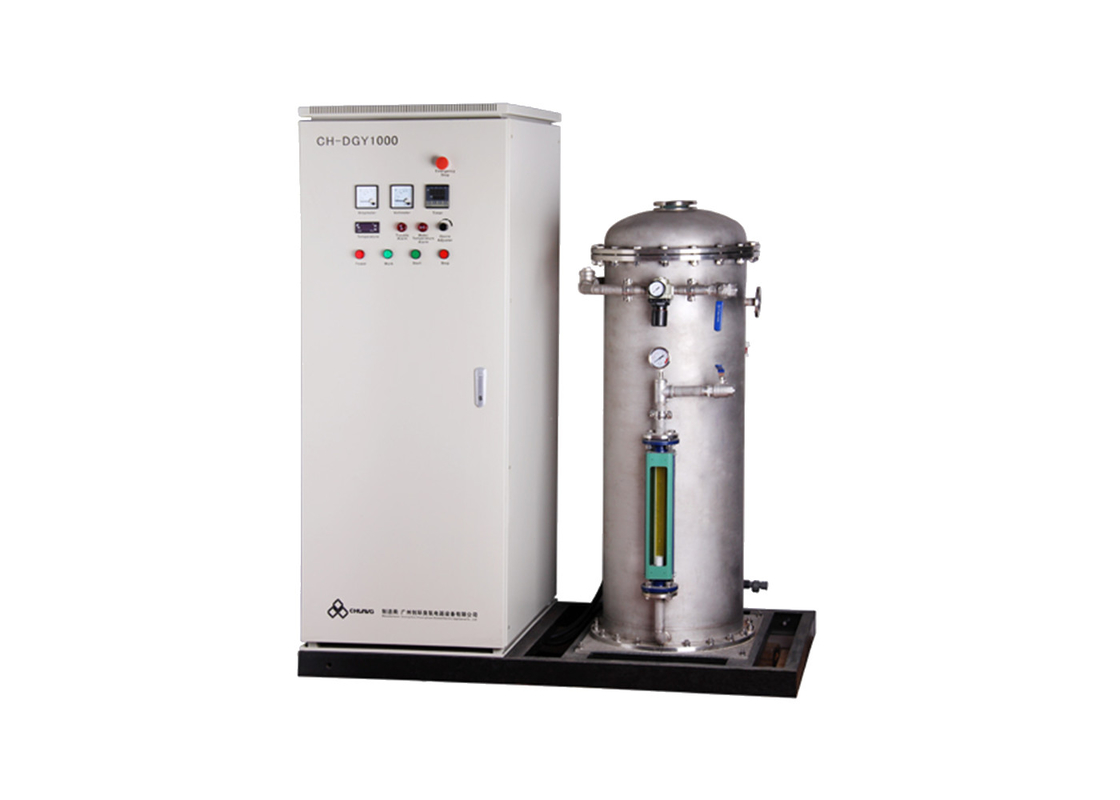

                 Picture are 1.6KG OZONE GENERATOR

    250g 500g Oxygen Source Industrial Ozone Generator Customization

    250g 500g Oxygen Source Industrial Ozone Generator Customization

    250g 500g Oxygen Source Industrial Ozone Generator Customization
