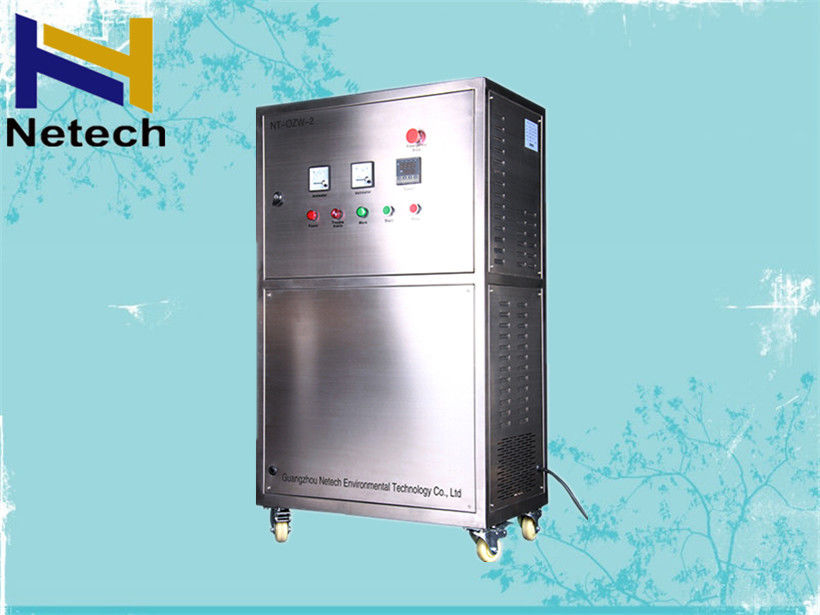

4mg/l to 15mg/l Ozone Dissolved Water Machine For Food Processing
Model Number: NT - WCZ - 2
Material: stainless steel housing
Warranty: one year warranty
Adjustable rate: 20% - 100% adjustable ozone
Usage:it can produce ozonated water directly
|Power supply||220V,50HZ / 60HZ|
|Commodity||Ozone water system|
|Rated Water flow||1800~2400 Liter per hour|
NT-WCZ-2, this system can produce OZONE WATER 1800~2400 liter per hour, and it can controls output of ozone dissolved water with concentration from 4mg/l to 15mg/l.
1. Stainless steel housing
2. Built-in Air dryer and PSA high purity oxygen concentrator
3. Built-in of product –ozone generator tube with high frequency electric board
4. Built-in High efficiency ozone mixing system
5. It can be Movable with wheels
6. Built in anti water return equipment, it can prevent water return back to machine.
7. All the pipe and pipe fittings is stainless steel material
8. It can custom-made according to customer’s requirement.
Ammeter, Voltmeter, Timer, Emergency stop, working light, Power light, Trouble Alarm, Working light, Start light, Stop light
* Food processing factory :It can be used to clean pipeline, production equipment and vessel during
* Food processing factory; wash fruits & vegetables to remove mold and bacteria; wash meat and poultry to remove bacteria and extend refrigerated shelf life. Pharmaceutical factory It can be used to clean pipeline,production equipment and vessel during pharmaceutical factory.
* Poultry factory :It can be used for removing smell of poultry factory and kill bacteria, cleaning water for poultry feeding.
* Swimming pool and SPA :It can be used for pool or spa water clean and cleanion. Sewerage water treatment It can be used for effectively destroy bacteria and in the processing of water laden with concentrations of industrial byproducts. Aquaculture and aquarium water clean it can be used to achieve water quality improvements by micro flocculating fine particulate matter (making particles that are easier to settle or filter) and oxidizing non biodegradable organic molecules (creating smaller and more biodegradable molecules), nitrite, and refractory organic molecules (reducing water color) in Fresh water & Seafood cultivating factory; Fresh water & Seawater hatcheries; aquarium, aquaculture, fishing farm.
|High pure ceramic ozone tube||Long use life, high ozone concentration, low temperature, continuous working|
|High frequency and high pressure ozone power board||Adjustable frequency, adjustable width and audible alarm. It will not damage the power board if circuit break or short circuit.|
|Oil free air compressor||Offer clean air source|
|Air dryer||Offer clean and dry air source|
|PSA high pure oxygen sieve||Offer oxygen purity: 93%|
|Stainless steel high efficiency gas liquid mixing pump||The pump sucks the liquid and air, then mix them. The micro air bubble of gas-liquid dissolving effect is good|
|Stainless steel high efficiency static mixer||Enhance dissolved effect is more than three times|
|Stainless steel anti water return equipment||It can prevent water return back to machine|
|Water level sensor||Prevent the equipment running without water or lack of water|
|Alarm device||Humanized remind users equipment anomalies|
|NT - WCZ - 2|
|Working Voltage||V / HZ||220V / 50HZ / 60HZ|
|Dissolved ozone concentration in water||PPM||4 - 15|
|Rated Water flow||L/hr||1800~2400 Liter per hour|
|Ambient temperature||℃||3 - 40℃|
|Ambient Humidity||%||≤ 70%|
|Mixing pressure||Mpa||0.25 - 0.4Mpa|
|Water Output Pressure||Mpa||0.05 - 0.2Mpa|
|Diameter of input water pipe||inch||1"|
|Diameter of output water pipe||inch||3 4"|
|Dimension||mm||750 * 450 * 1300mm|
Noted: Net weight will be 10% different for different plug
What we do?
1.We Provide high-quality ozone generator for : Ozone generator/oxygen generaotr wholesalers
2.OEM-The custom-made ozone generator are available. Upon customer's idea,
drawings, photos etc.
3.ODM-The modification of the ozone generator after customer's selection is accepted.
Excellent after-sales service:
1 year warranty again the manufacture defect, offer life time consultation on
2M silicone tube and 2PCS air stone gift for any ozone machine order.
Report on the making process.Marketing feedbacks tracing.
Why choosing us?
1.Having 10 years production experienced .We are trusty business partner.
2.Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.
3.NT-WCZ-2 Production Capacity: 1000 pcs per month.
4.We have serial products: ozone tube ,UV water cleanrs, ozonegenerators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
5.We supply OEM service according to customers' requests and give out professional suggestions.
Distributors Offer : Welcome to be our distributor .
We are the trusty partner! Buy base on the trust !
