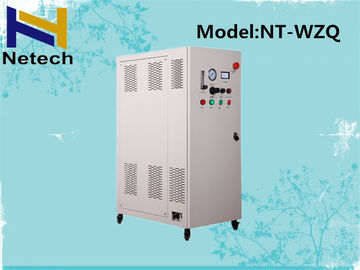

10g/h - 60g/h Water Cooled Ozone Equipment Feed Outside Oxygen Source
Quick Details
Brand Name | Netech |
Model Number | NT-WZQ |
Certification | Domestic |
Ozone Output Way | Water Cooling |
Warranty | One Year Warranty |
Description
Adjustable range | 20%-100% |
Cooling way | Air Cooling |
Ozone output | 10g 20g 30g 40g 50 g/hr |
Core parts | water cooling enamel ozone tube |
Commodity | Ozone Water cleanr |
Size | 460*390*840mm |
Timer | 0-30 mins or working continuously |
Functions | clean, Detoxication, Remove Odor... |
Applications:
* Drinking water treatment, Spring water treatment ozone generator, Vegetable and fruits wash machine, * Aquaculture water clean ozone generator, Aquaculture equipment, Remove alga equipment, Aquaculture ozone generator, Aquaculture recycle water treatment equipment, Raw water aquaculture equipment, Connect with outside gas feeding ozone generator, Nursery aquaculture equipment
Features:
1. SS housing / carbon steel sprayed with plastic housing
2. It must connect with outside oxygen generator or oxygen tank
3. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time
4. Small in size, adjustable ozone range: 20%--100%
5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety
Control Panel:
Ozone output adjuster, Flow meter , Pressure regulator, Voltmeter, Ammeter, Switch, Emergency stop, Working light, Power light, Alarm
Specifications:
Item | Unit | NT-WZQ | |||||
10G | 20G | 30G | 40G | 50G | 60G | ||
Oxygen flow rate | LPM | 1~3 | 2~7 | 3~10 | 5~10 | 8~18 | 8~20 |
Ozone concentration | Mg/L | 69~88 | 52~104 | 56~93 | 85~116 | 60~90 | 60-70 |
Ozone output | G/Hr | 5~12 | 12~22 | 16~33 | 34~51 | 43~64 | 72-84 |
Power | W | 220 | 250 | 400 | 510 | 600W | 840W |
Fuse | A | 3 | 3 | 3 | 5 | 6 | 6 |
Cooling water flow rate | LPM | 30 | 48 | 48 | |||
Size | mm | 460×390×840 |
NT-WZQP with ORP Monitor
Applications:
1. Aquactulture,Aquarium,Fish farming Water treatment
2. Cooling towers water treatment
3. Swimming pools Water treatment
4. Sewage water treatment
5. Water cleanion& clean
Features:
1. Carbon steel sprayed with plastic housing
2. Feed outside oxygen generator & oxygen tank or Air source
3. With built-in water cooling enamel ozone tube,high frequency electric board, thus max ozone concentration:100Mg/L with stable ozone capacity,Adjustable ozone output range: 20%--100%
4. ORP Measuring Range:0~14Ph-1000~+1000mV
5.Connect with external ozone injector for water treatment
6.With over current, over voltage, water protection device, for ensuring ozone machine running safety
Control panel:
Ozone output adjuster, Flow meter, ORP Monitor, Pressure regulator, Voltmeter, Ampmeter, Switch, Emergency stop, Working light, Power light,Alarm
ORP Level:
ORP level(mV) | Application |
0-150 | No Practical use |
150-250 | Aquaculture |
250-350 | Cooling towers |
400-475 | Swimming pools |
450-600 | Hot tubs |
600 | Water cleanion |
800 | Water clean |
Specifications:
Item | Unit | NT-WZQP | ||||
10G | 20G | 30G | 40G | 50G | ||
Oxygen flow rate | LPM | 1~3 | 2~7 | 3~10 | 5~10 | 8~18 |
Ozone concentration | Mg/L | 69~88 | 52~104 | 56~93 | 85~116 | 60~90 |
Ozone output | G/Hr | 5~12 | 12~22 | 16~33 | 34~51 | 43~64 |
Power | W | 220 | 250 | 400 | 510 | 1300 |
Fuse | A | 3 | 3 | 3 | 5 | 6 |
Cooling water flow | LPM | 30 | 48 | |||
Size | mm | 460×390×840 |
Noted:1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug.
