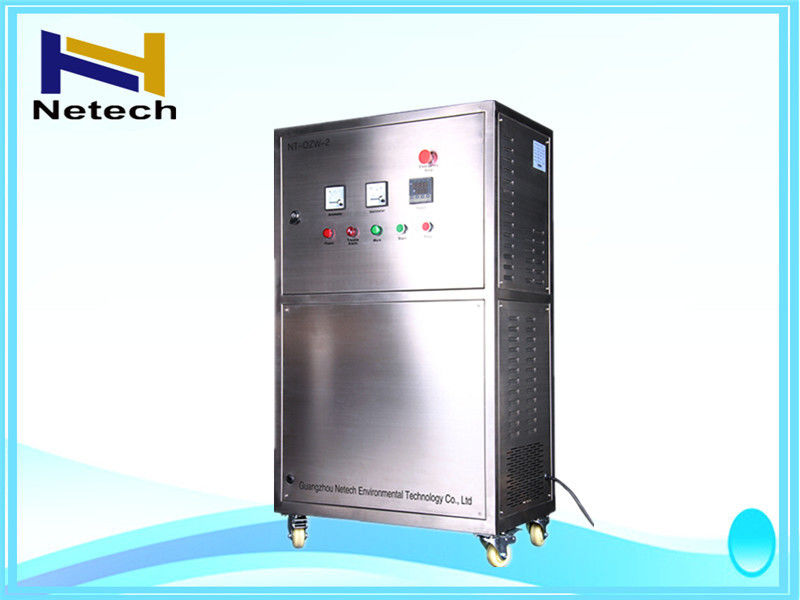

4PPM Water Ozone Generator / Ozone Dissolved Water Machine

4PPM Water Ozone Generator / Ozone Dissolved Water Machine

  • High Light

    corona discharge ozone generator drinking water

    ,

    water ozone machine

  • Operating Power
    1800W
  • Dissolved Ozone Concentration In Water
    4-15PPM
  • MOQ
    1 Unit
  • Guarantee Period
    One Year
  • Weight
    113KG
  • Dimension
    750×450×1300mm
  • Place of Origin
    Guangdong China
  • Brand Name
    Netech
  • Model Number
    NT - WCZ - 2
  • Minimum Order Quantity
    1 set
  • Price
    For futher discussion
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    5-10 days after payment confirmed
  • Payment Terms
    L/C D/A D/P T/T Western Union Credit Card/ Paypal
  • Supply Ability
    1000 sets per month

4PPM Water Ozone Generator / Ozone Dissolved Water Machine

4PPM Water Ozone Generator / Ozone Dissolved Water Machine


Quick details



Brand Name: Netech

Model Number: NT - WCZ - 2

Certification: domestic

Material: stainless steel housing
Adjustable rate: 20% - 100% adjustable ozone


Description


Gas sourceOxygen
Operating Power1800W
MaterialCeramic tube
CoolingAir cooling
Power supply220V,50HZ / 60HZ
CommodityOzone water system
Rated Water flow1800 ~ 2400 Lilter per hour
Size750*450*1300mm






NT-WZQ-2, this system can produce OZONE WATER 1800~2400liter per hour, and it can controls output of ozone dissolved water with concentration from 4mg/l to 15mg/l.


Features:

1. Stainless steel housing
2. Built-in Air dryer and PSA high purity oxygen concentrator
3. Built-in of product –ozone generator tube with high frequency electric board
4. Built-in High efficiency ozone mixing system
5. It can be Movable with wheels
6. Built in anti water return equipment, it can prevent water return back to machine.
7. All the pipe and pipe fittings is stainless steel material
8. It can custom-made according to customer’s requirement.
9. Easy operation.


Control panel:

Amp meter, Voltmeter, Timer, Emergency stop, working light, Power light, Trouble Alarm, Working light, Start light, Stop light


Applications:

treatment industry
It can be used to clean apparatus and instruments and treatment of disease.

Food processing factory
It can be used to clean pipeline, production equipment and vessel during

Food processing factory; wash fruits &vegetables to remove mold and bacteria; wash meat and poultry to remove bacteria and extend refrigerated shelf life. Pharmaceutical factory It can be used to clean pipeline,
production equipment and vessel during pharmaceutical factory.

Slaughtering
It can be used to remove smell of slaughtering and kill bacteria and clean production water supply.

Poultry factory
It can be used for removing smell of poultry factory and kill bacteria, cleaning water for poultry feeding.

Swimming pool and SPA
It can be used for pool or spa water clean and cleanion. Sewerage water treatment It can be used for effectively destroy bacteria and in the processing of water laden with concentrations of industrial byproducts. Aquaculture and aquarium water clean it can be used to achieve water quality improvements by micro flocculating fine particulate matter (making particles that are easier to settle or filter) and oxidizing non biodegradable organic molecules (creating smaller and more biodegradable molecules), nitrite, and refractory organic molecules (reducing water color) in Fresh water & Seafood cultivating factory; Fresh water & Seawater hatcheries; Ocean polis, aquarium, aquaculture, fishing farm. Ozone laundry system for Washing machine it can be used to reduce all bacteria and viruses that may be on any linens, wiping cloths, or clothing; reduce the cross contamination of illness in nursing home and hospital facilities.


Configuration:


High pure ceramic ozone tubeLong use life, high ozone concentration, low temperature, continuous working
High frequency and high pressure ozone power boardAdjustable frequency, adjustable width and audible alarm. It will not damage the power board if circuit break or short circuit.
Oil free air compressorOffer clean air source
Air dryerOffer clean and dry air source
PSA high pure oxygen sieveOffer oxygen purity: 93%
Stainless steel high efficiency gas liquid mixing pumpThe pump sucks the liquid and air, then mix them. The micro air bubble of gas-liquid dissolving effect is good
Stainless steel high efficiency static mixerImprove dissolved effect is more than three times
Stainless steel anti water return equipmentIt can prevent water return back to machine
Water level sensorPrevent the equipment running without water or lack of water
Alarm deviceHumanized remind users equipment anomalies



Specification

ItemUnitModel
NT - OZW - 2
Working VoltageV / HZ220V / 50HZ / 60HZ
Operating PowerW1800W
Dissolved ozone concentration in waterPPM4 - 15
Rated Water flowL/hr1800 ~ 2400Lilter per hour
Ambient temperature3 - 40℃
Ambient Humidity%≤ 70%
Mixing pressureMpa0.25 - 0.4Mpa
Water Output PressureMpa0.05 - 0.2Mpa
Diameter of input water pipeinch1"
Diameter of output water pipeinch3 4"
WeightKG113
Dimensionmm750 * 450 * 1300mm


Noted: Net weight will be 10% different for different plug


Question and answer

♦ Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoidfurther leakage.
So far there is no one died reported caused by ozone poisoning.

♦ Does the ozone generator work efficiently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacimethrin efficiently and resolve the harmful material in a short time.


QUALITY CONTROL


In order to ensure the best quality , every ozone generator has been strictly testedbefore delivery.

We promise the good performance and all parts completely
