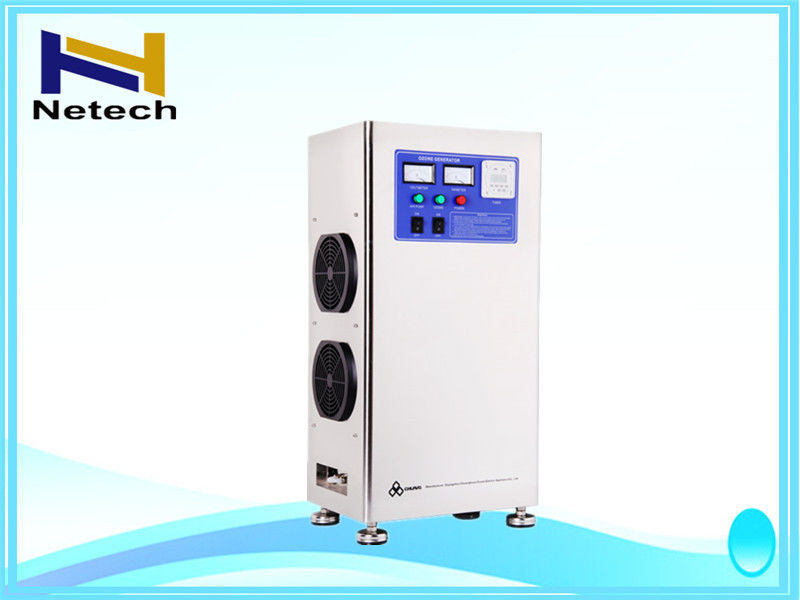

5g 10g Air Source Ozone Generator For Water Treatment Equipment / Water Ozonator
1. Quick details
Brand Name: Netech
Model Number: NT-T-N
Certification: domestic
Ozone output way: air cooling
Warranty: one year warranty
Description
| Gas source | Oxygen |
| Oxygen flow rate | 1-18LPM |
| Material | Ceramic tube |
| Cooling | Air cooling |
| Power supply | 220V,50/60HZ |
| Commodity | Ozone water system |
| Ozone output | 2g/3g/5g/6g/10g/15g/20g |
| Size | 360*260*610/400*300/770mm |
Control panel:
Voltmeter, Ammeter, Switch, Timer, Working light, Power light etc.
Timer: One or Two recycle working time
Applications:
1. treatment industry: clean ward, operating room, treatment equipment, aseptic room, etc
2. Fruits and vegetables: keep fruits and vegetables fresh and store them
3. Sea food factory: Remove smell of sea food factory and kill bacteria, clean production water supply.
4. Slaughtering: Remove smell of slaughtering and kill bacteria, clean production water supply.
5. Poultry factory: Remove smell of poultry factory and kill bacteria, clean water for poultry feeding.
6. Commercial use in House, hotel, Office, KTV, Super Market, Fruit shop etc.
Air Purifier: Remove formaldehyde, benzene compounds, Smoke, Odors, Molds, Virus to fresh air.
Water purifier: clean production Water supply.
7. Bottle Water, Domestic Water, Well Water, Pool Water cleanion & clean
Features:
1. Built in Domestic ed Product -Air cooling ceramic ozone generator
2. Built in Automatic air dryer, Feed dry air or outside oxygen source
3. Connect with external ozone injector for water treatment
4. It can be Movable with wheels & Handles or Wall mounted.
NT-T-N Specifications:
| Item | Unit | NT-T-N | ||||||
| 2G | 3G | 5G | 6G | 10G | 15G | 20G | ||
| Oxygen flow rate | LPM | 0.5~2 | 1~3 | 1.2~3 | 1.5~3.5 | 2.4~6 | 3.6~9 | 3~10 |
| Ozone concentration | Mg/L | 28~50 | 28~65 | 32~60 | 28~56 | 32~60 | 32~60 | 38.9~42 |
| Ozone output | G/Hr | 1.5~3.0 | 4~5.0 | 4.3~5.7 | 5.0~5.8 | 8.6~14.5 | 13~17 | 18.6~20 |
| Power | W | 115 | 135 | 160 | 185 | 260 | 330 | 400 |
| Air flow rate (Suggested) | LPM | 40~60 | 50~75 | 50~90 | ||||
| Compressed air pressure | Mpa | 0.025 | ||||||
| Fuse of power supply | A | 3 | 5 | 5 | 5 | |||
| Size | cm | 36×26×61 | 40×30×77 | |||||
| Net Weight | kg | 11.25 | 11.30 | 11.50 | 18 | 20 | 35 | |
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug.
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
Why choosing us?
· Having 10 years production experienced .We are trusty business partner.
· Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.
· NT-T-N Production Capacity: 1000 pcs per month.
· We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
· We supply OEM service according to customers' requests and give out professional suggestions.
Distributors Offer : Welcome to be our distributor
Our products are sold all over the world, you can rest assured.
