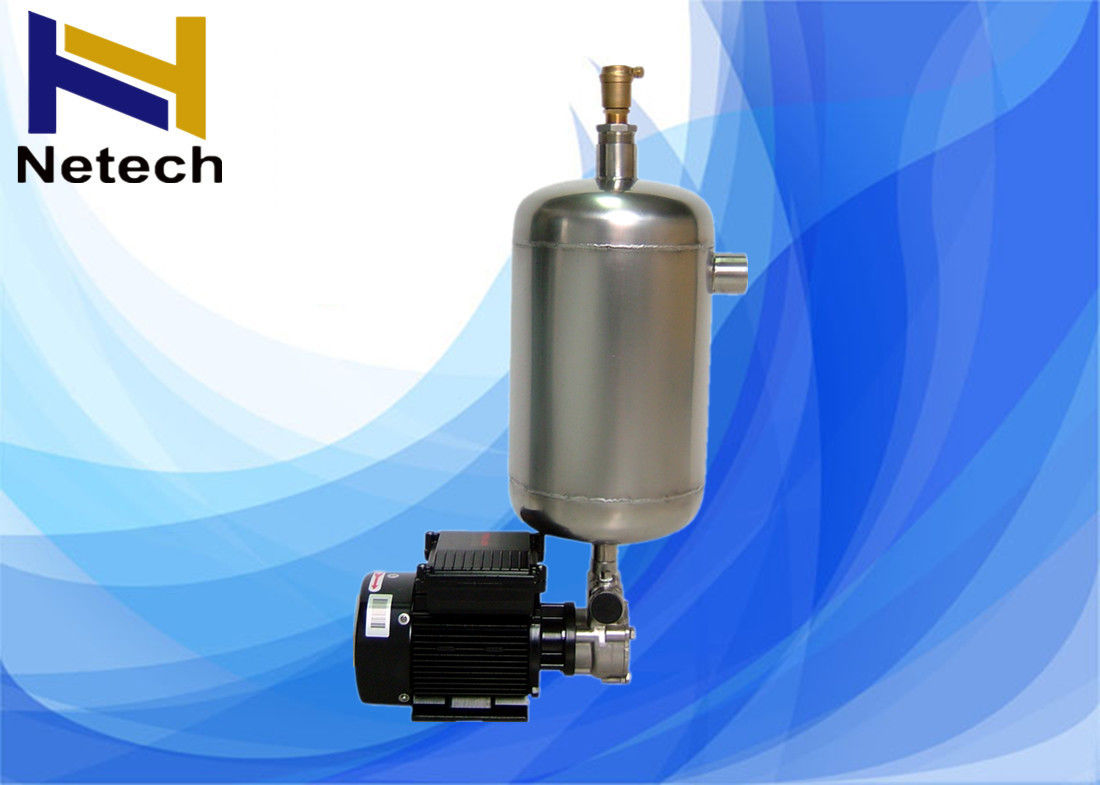

Negative Pressure Ozone Mixing Pump With Tank 1T 2T 12T PH 3~9 ISO
Place of Origin | Guangdong China |
---|---|
Brand Name | Netech |
Model Number | NT-P |
Minimum Order Quantity | 1 unit |
Price | It can be discussed |
Packaging Details | Safe double carton package with foam inside for protection |
Delivery Time | 3-5 working days after received your payment |
Payment Terms | L/C D/A D/P T/T Western Union Credit Card/ Paypal |
Supply Ability | 1000 units per month |
Voltage | 220V/380V | Mixer Type | Static Mixers |
---|---|---|---|
Flow Rate | 1T/H 2T/H 6T/H 12T/H | Mixing Efficiency | Up To 1PPM |
Mixing Type | Negative Pressure | Additional Capabilities | Dissolve Ozone Into Water |
High Light | molecular sieve zeolite,refrigerated air dryer |
Ozone Mixing Pump / Ozonated Water Mixing Pump With Tank 1T 2T 12T
Details:
1. Mixing system is simple and it intakes Ozone gas to the pump and mix Ozone with liquid in the pump, while conventional system needs additional equipment like "ejector" and "static mixer" to make ozone water.
2. Ozone dissolution ratio is more than 80~100% in case of out mixing system which is extremely high compared with conventional system.
3. NT system does not use compressor, pressure dissolve tank, ejector and static mixer, which makes our system small in size and competitive in price. In case of conventional centrifugal pump method, the pump sucks the liquid and air, and mix them and transport them.
4. NT Mixng pump is most suitable to pressurize the air and liquid, and let the air dissolved into the liquid, compared with any other type of pumps and apparatus like atatic mixer.
5. Diameter for micro bubble: 20-30µ
Working condition:
PH: 3~9
Highest environment temperature: 400C
Liquid temperature:-150C--1200C
Specifications:
Item |
20NT-1SS |
20NT-1DS |
25NT-2SS |
25NT-2DS |
40NT-6SS |
50NT-12SS |
Head of delivery |
40M |
50M |
||||
Flow rate |
1T/Hr |
2T/Hr |
6T/Hr |
12T/Hr |
||
Water input size |
0.75’’ |
1’’ |
1.5’’ |
2’’ |
||
Water output size |
0.5’’ |
0.75’’ |
1.2’’ |
1.5’’ |
||
Power |
0.55Kw |
1.1Kw |
3Kw |
5.5Kw |
||
Voltage |
380V |
220V |
380V |
220V |
380V |
380V |
Speed |
2900r/min |
|||||
Size of Tank |
Φ200×320mm (3mm thickness) |
Φ273×720mm (3mm thickness) |
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should bear the shipping costs for return.
Why choosing us?
1.Having 10 years production experienced .We are trusty business partner.
2.Quality Controlled:Quality Control personnel check the quality at every stage
of production, from the incoming raw materials to the finished product.
3.Mixing pump Production Capacity: 1000 pcs per month.
4.We have serial products: ozone tube ,UV water cleanrs, ozonegenerators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
5.We supply OEM service according to customers' requests and give out professional suggestions.
Distributors Offer : Welcome to be our distributor .
