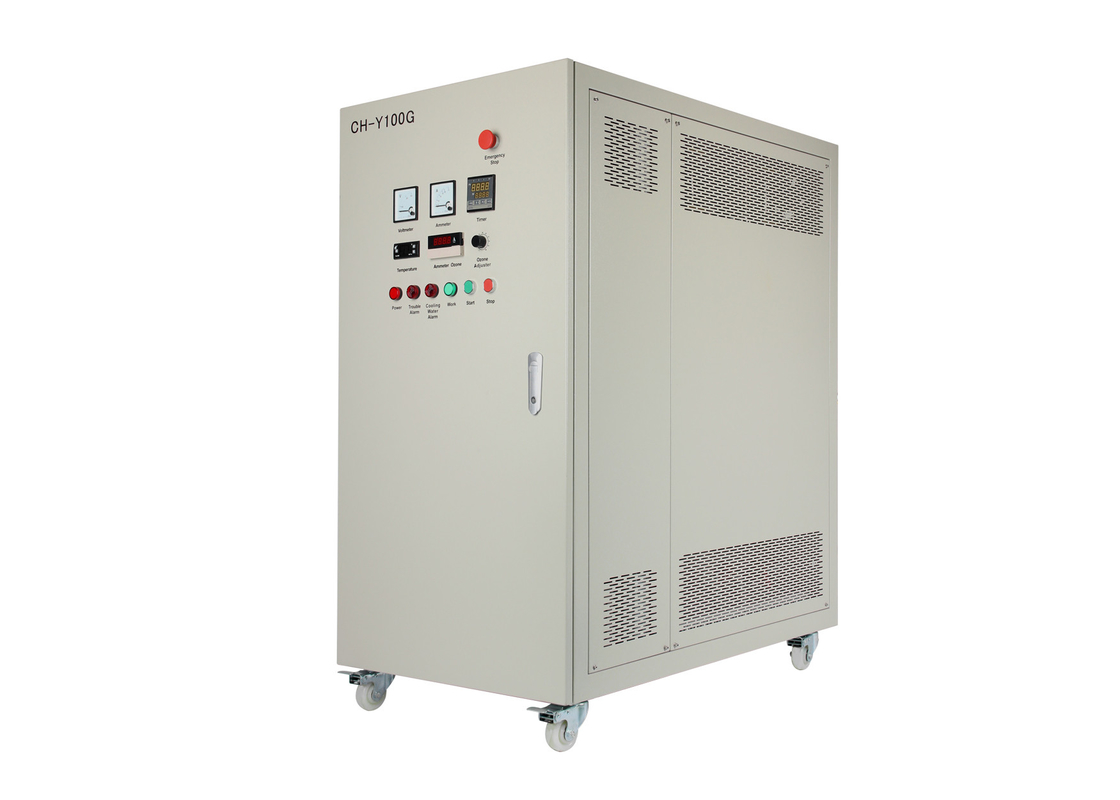

40g/h 50g/h 100g/h ozone water machines / ozone generator aquarium
Quick details
Brand Name: ozocenter
Model Number: CH-Y
Certification: domestic
Ozone output way: corona discharge
Adjustable rate: 20%-100% adjustable rate
Cooling way: water cooled
Description
| Gas source | Oxygen | ||
| Oxygen flow rate | 1-18LPM | ||
| Material | Enamel tube | ||
| Cooling | Water cooling | ||
| Power supply | 220V , 50HZ | ||
| Commodity | Ozone water system | ||
| Ozone output |
40g 50g 100g 150g |
Features:
1. It has the oxygen system, carbon steel sprayed with plastic or SS housing complete ozone generator
2. Use water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time
3. Adjustable ozone range: 20%--100%, it can working automatic
4. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety
Control panel:
Ozone output adjuster, Voltmeter, Ampere, Timer, Cooling water temperature indicator, Ozone Ampere, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm
Specifications
| Item | Unit | CH-Y40G | CH-Y50G | CH-Y100G | CH-Y150G |
| Oxygen flow rate | LPM | 5~15 | 8~18 | 16-32 | 24-54 |
| Ozone concentration | Mg/L | 90~56 | 90~60 | 90~58 | 58~90 |
| Ozone output | G/Hr | 27~50 | 43~64 | 86~111 | 129~188 |
| Power | Kw | ≤1.62 | ≤1.85 | 3.5 | 4 |
| Fuse | A | 15 | 20 | 20 | 25 |
| Cooling water flow | LPM | 48 | |||
| Size | mm | 650×1030×1230 | 650×1030×1230 | 1100*670*1355 | |
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug
What we do?
We Provide high-quality ozone generator for : Ozone generator wholesalers,Retailers and online shops
OEM-The custom-made ozone generator are available. Upon customer's idea, drawings, photos etc.
ODM-The modification of the ozone generator after customer's selection is accepted.
Excellent after-sales service:
1 year warranty again the manufacture defect, offer life time consultation on problems occurred.
Report on the making process. Marketing feedbacks tracing.
Why choosing us?
· Having 10 years production experienced .We are trusty business partner.
· Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.
· NT-Y Production Capacity: 1000 pcs per month.
· We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
· We supply OEM service according to customers' requests and give out professional suggestions.
Distributors Offer : Welcome to be our distributor
Our products are sold all over the world, you can rest assured.
