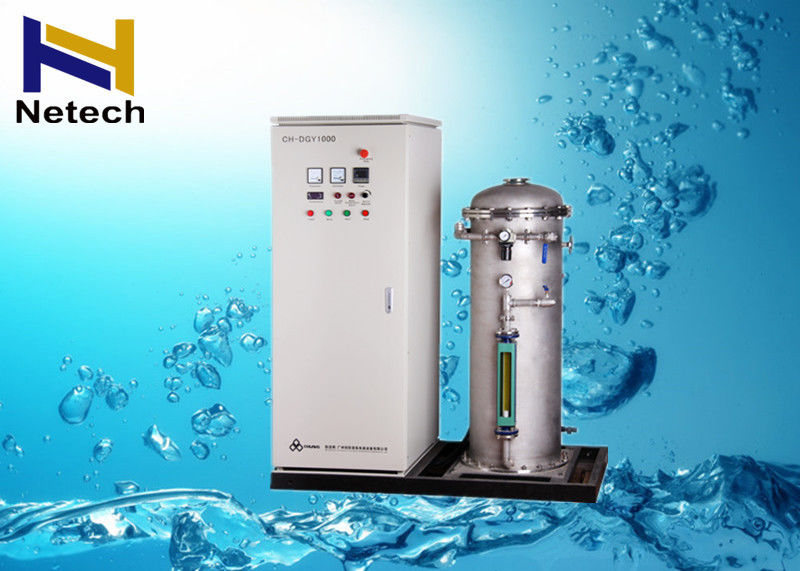

1000G 2KG Industrial Water Plant Portable Ozone Generator For Ozone Water Treatment System

Place of Origin Guangdong China
Brand Name Netech
Model Number NT-DGY 1.0
Minimum Order Quantity 1 set
Price for futher discussion
Packaging Details Safe double carton package with foam inside for protection
Delivery Time 40 days after payment confirmed
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 1000 sets per month
Product Details
Ozone Output 1 Kg/h Material Ozone Enamel Tube Or Quartz Glass Tube (customize)
Application Water Treatment,such As Waste Water,drinking Water,etc Guarantee Period 12 Months
Cooling Water Flow Way 1.2-1.5 M3/HKGO3 Ozone Concentration 80-100MG/L
Gas Source Oxygen Source
High Light

ozonator for drinking water

,

water ozone machine

Leave a Message
Product Description

1000G 2KG Industrial Water Plant Ozone Generator / Ozone Water Treatment System







1.Applications

Ozone be used in chemical, petroleum,textile,  fine chemical and flavors and fragrances industry as the oxidant, catalyst. Its super-oxidation capacity and easy to cut off the associative key of Alkenes, Alkynes, and Benzene organics, increase the process oxidation, synthesis of new compounds.



Ozone is widely used in drinking water treatment, industrial sewage water treatment as it has the ability of high kill rate of bacteria, viruses and other microorganisms with high speed, and complete removing the organic compounds and other pollutants without creating secondary pollution, also can reduce the biological oxygen demand (BOD) and chemical oxygen demand (COD), remove nitrite, suspended solids in water.



2Technical Description

1. Use enamel tubes for the core parts of ozone generator. The anti-force capability of resistant electricity is much better than glass and ceramic tubes.

2. So as to ensure the safety and continuously operating of ozone discharge, each discharge cell is equipped with separated safety appliance. Single discharge unit failure does not affect the normal operation of other units.



3. Discharge chamber

1. Use stainless steel for the case, resistant to rust & corrosion, and can effectively prevent the cooling water fouling.



4. High frequency of power supply

1. Precise setting the Voltage and Working frequency. Output frequency resolution can be up to ± 0.1Ht. Voltage Precision ±1V.

2. Has a perfect overload, automatic current-limiting, overpressure, short circuit, lack of phase and power-off protection.



5. High voltage transformer

1. Using Mn-Zn ferrites for magnetic core. Small wastage of iron core / low Resistivity / low temperature coefficient / high rate of dynamic permeability under high frequency working condition.

2. Using special cables of high frequency & stranded conductor to reduce the skin effect of high-frequency current.



NT-DGY 1.0  1KG Ozone System with oxygen system Technical Parameters:



Item

NT-DGY1.0  Ozone Generator

Ozone Output

1,078 G/Hr

Ozone Concentration

80-100MG/L

Power Supply Voltage

380  3PH  50HZ

Power

8-10KW/HKGO3

Operating Voltage

3800V-4200V

Working Frequency

800 Hz

Oxygen Feed Flow Rate

8-10NM3/HKGO3

Air Source Dew Point

≤-45℃

Working Pressure of Discharge chamber

0.05-0.1Mpa

Outlet Air Temperature

≤30℃

Inlet Cooling Water Temperature

≤20℃

Cooling Water Temperature Rise

4-6℃

Cooling Water Flow

1.2-1.5 M3/HKGO3





Remark: Different working condition there will be10%-20% different of ozone capacity.



For more details,please contact with us by Email (info@gznetech.com),thanks
