UV Food Ozone Generator for Industrial Water cleanion / UltraViolet Water Treatment

UV Food Ozone Generator for Industrial Water cleanion / UltraViolet Water Treatment

    • UV Food Ozone Generator for Industrial Water cleanion / UltraViolet Water Treatment
  • UV Food Ozone Generator for Industrial Water cleanion / UltraViolet Water Treatment

    Product Details:

    Place of Origin: China(guangzhou)
    Brand Name: Netech
    Model Number: NT-UV

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: For further discussion
    Packaging Details: Carton
    Delivery Time: 3-5 working days after received your payment
    Payment Terms: D/P, L/C, D/A, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 500 sets/month
    Contact Now
    Detailed Product Description
    Commodity Name: UV/ultraviolet Machine For Water Treatment Lamp Cover Material: 304 Or 316l Stainless Steel
    Water Flow Rate: 0.1-500 Ton/hr MOQ: 1 Unit
    Max Pressure: 0.8MPA Usage: Fish Farm / Drinking Water / Pools Water Clean
    High Light:

    odor free ozone generator

    ,

    food processing ozone generator

    UV cleanr for Industrial Water cleanion / UltraViolet Water Treatment







    Features:

    1. Water flow rate: 0.1-500 ton/hr which can meet with different water capacities.
    2. Warranty: 10 years warranty for stainless steel housing, other components are 1 year.
    3. Material: Use SS304 or SS316L material for reaction chamber, combined with full-automatic welding. All connections are smoothly without any corner;
    4. Chamber: Internal & external polishing mirror chamber with high brightness for greatly improved UV intensity and clean effect.
    5. Thickness: The thickening design of chamber which is strictly tested air & water pressure before shipping. It can withstand 0.8 Mpa, and fully prevents from water leakage.
    6. Lamp: Use imported low-pressure but high-strength mercury lamp, which has 9000-13000 hrs service life(Max); assorted with high-efficiency electron ballast, it improves product service life and effect, so that the cleaning rate up to 99.99%.
    7. The whole system adopts America NSF55 standard of “Ultraviolet microbial water treatment equipment” and domestic Ultraviolet cleanr industry standard for living and drinking water of CJ/T204-2000.



    Specifications:



    Model

    Water flow

    (T/Hr)

    Power

    (W)

    Size

    (mm)

    Water Input & Ouput Size

    Max Pressure

    (Mpa)

    NT-UV005G

    0.1

    8

    250×48×65

    1/4″

    0.8

    NT-UV01G

    0.2

    10

    295×60×80

    1/4″

    NT-UV02G

    0.5

    14

    370×60×80

    1/2″

    NT-UV04G

    1

    17

    450×73×110

    1/2″

    NT-UV06G

    1.3

    23

    520×73×110

    3/4″

    NT-UV08G

    1.8

    28

    650×73×110

    3/4″

    NT-UV12G

    2.7

    40

    950×73×110

    1″





                                                                              NT-UV3~30T

    Model

    Water flow

    (T/Hr)

    Power

    (W)

    Size

    (mm)

    Water Input & Ouput Size

    Max Pressure

    (Mpa)

    NT-UV3T

    3

    40×1

    950×125×250

    1″

    0.8

    NT-UV5T

    5

    40×2

    950×138×280

    1.2″

    NT-UV8T

    8

    40×3

    950×170×310

    1.5″

    NT-UV12T

    12

    40×4

    950×195×335

    2″

    NT-UV15T

    15

    40×5

    950×195×335

    2″

    NT-UV20T

    20

    80×3

    950×205×405

    2.5″

    NT-UV25T

    25

    80×4

    950×275×465

    2.5″

    NT-UV30T

    30

    120×3

    1250×275×545

    3″



    NT-UV40~500T



    Model

    Water flow

    (T/Hr)

    Power

    (W)

    Size

    (mm)

    Water Input & Ouput Size

    Max Pressure

    (Mpa)

    NT-UV40T 40 120×4 1250×275×550 3″ 0.8
    NT-UV50T 50 120×5 1250×275×550 4″
    NT-UV60T 60 150×5 1650×280×495 4″
    NT-UV70T 70 150×6 1650×305×520 5″
    NT-UV80T 80 150×7 1650×305×520 5″
    NT-UV100T 100 150×8 1650×335×550 6″
    NT-UV125T 125 150×10 1650×360×575 6″
    NT-UV150T 150 150×12 1650×385×600 8″
    NT-UV200T 200 150×16 1650×460×675 8″
    NT-UV500T 500 240×25 1650×650×750 DN300

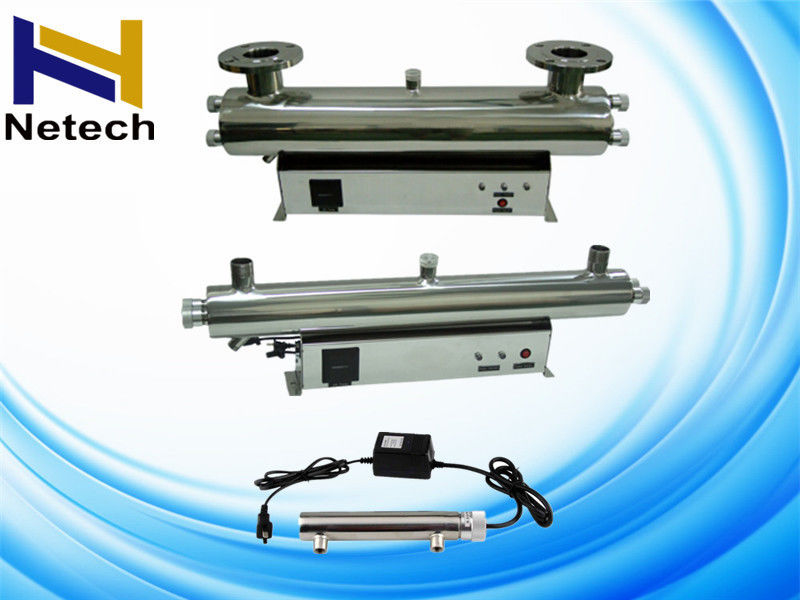

    NT-UV500T picture:

    UV Food Ozone Generator for Industrial Water cleanion / UltraViolet Water Treatment 0

    Quality control
    Every procedure has personnel inspection.
    All the products must be tested and qualified before packaging.



    Why choosing us?



    1.Having 10 years production experienced .We are trusty business partner.

    2.Quality Controlled:Quality Control personnel check the quality at every stage

    of production, from the incoming raw materials to the finished product.

    3.NT-UV Production Capacity: 3000 pcs per month.

    4.We have serial products: ozone tube ,UV water cleanrs, ozonegenerators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.

    5.We supply OEM service according to customers' requests and give out professional suggestions.
