2 Inch Ozonated Water Mixer Venturi Injector PVDF Ozone Resistance Material ISO

Place of Origin China
Brand Name Netech
Model Number NT-Venturi
Minimum Order Quantity 1 piece
Price For further discussion
Packaging Details with froth in carton or wooden case
Delivery Time 1 to 2 working days after payment confirmed
Payment Terms Paypal,T/T,Western union,credit card
Supply Ability 3000 per weeks
Product Details
Model A58295 Material PVDF
Water Flow Rate 25~50T/Hr Flexible Hose 1/2’’
Length 295mm Application For Gas And Water Mixing
High Light

molecular sieve zeolite

,

aquarium protein skimmer

Leave a Message
Product Description

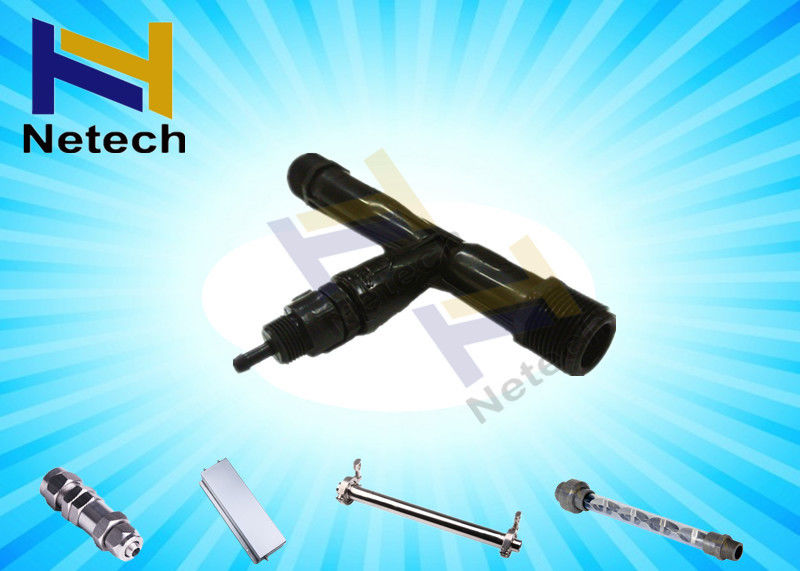

2 Inch Ozonated Water Mixer Venturi Injector PVDF Ozone Resistance Material





Quick Detail

water treatment Venturi

1. Material:PVDF, which is Corrosion, high temperature, durable,etc.

2. Connect with ozone generator

3. flexible hose is 1/4'';

4. Length: 100 mm



Description

Material                                 PVDF

Color                                     black

Water flow rate                     0.1-1T/Hr

MOQ                                     1 piece

Connection                            For water treatment, it needs to connect with ozone generator



Venturi is made of anti-ozone material, PVDF. Connected to your existing filtration system it allows an ozone injection point, where the vacuum effectively sucking the ozone gases into the water flow



Various Applications:

1. Air purification, removing odors, smoke, mold, etc.

2. Water clean for home, commercial, industrial used.

3. ozone for drinking water treatment and bottling clean.

4. ozone for aquaculture water purification.




Specification:

Marks Model

Quantity

(PC)

Size

(mm)

2 Inch Ozonated Water Mixer Venturi Injector PVDF Ozone Resistance Material ISO 0
1 A12057 1 57
2 A25100 1 100
3 A32235 1 235
5 A48275 1 275
6 A58295 1 295




Model: A12057
Material:PVD
Water flow rate:0.05-0.25 T/Hr
Specification:

1. Inlet & Outlet diameter 1/5'' external screw thread

2. Valve bonnet of Gas Inlet is 1/8’;

3. flexible hose is 1/4’’;

4. Length: 57 mm

Model: A25100
Material:PVDF
Water flow rate: 0.1-1 T/Hr
Specification:

1. Inlet & Outlet diameter 1/2’'external screw thread

2. Valve bonnet of Gas Inlet is 1/4’;

3. flexible hose is 1/4’’;

4. Length: 100 mm

Model : A32235
Material: PVDF
Water flow rate:3-10 T/Hr
Specification:

1. Inlet & Outlet diameter 1’'external screw thread.

2. Valve bonnet of Gas Inlet is 1/2’;

3. flexible hose is 3/8’

4. Length: 230 mm

Model: A25152
Material: PVDF
Water flow rate: 1~3 T/Hr
Specification:

1. Inlet & Outlet diameter3/4’'external screw thread

2. Valve bonnet of Gas Inlet is 1/4’;

3. flexible hose is 1/4’’;

4. Length: 152 mm

Model: A48275
Material: PVDF
Water flow rate:10~25 T/Hr
Specification:

  1. Inlet & Outlet diameter 1.5’' screw thread
  2. Valve bonnet of Gas Inlet is 1/2’;
  3. flexible hose is 1/2’’;
  4. Length: 275mm

Model: A58295
Material: PVDF
Water flow rate: 25~50T/Hr
Specification:

1. Inlet & Outlet diameter 2’' screw thread

2. Valve bonnet of Gas Inlet is 1.25’;

3. flexible hose is 1/2’’;

4. Length: 295mm





Why choosing us?

1.Having 10 years production experienced .We are trusty business partner.



2.Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.



3.Venturi Production Capacity: 3000 pcs per month.



4.We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.



5.We supply OEM service according to customers' requests and give out professional suggestions.



Distributors Offer : Welcome to be our distributor.
