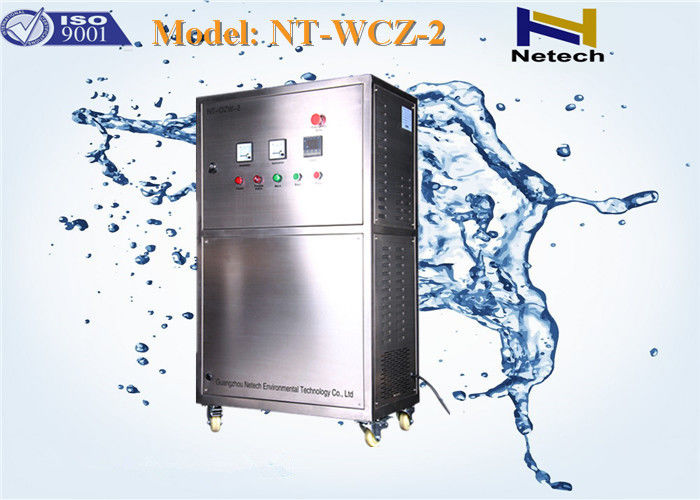

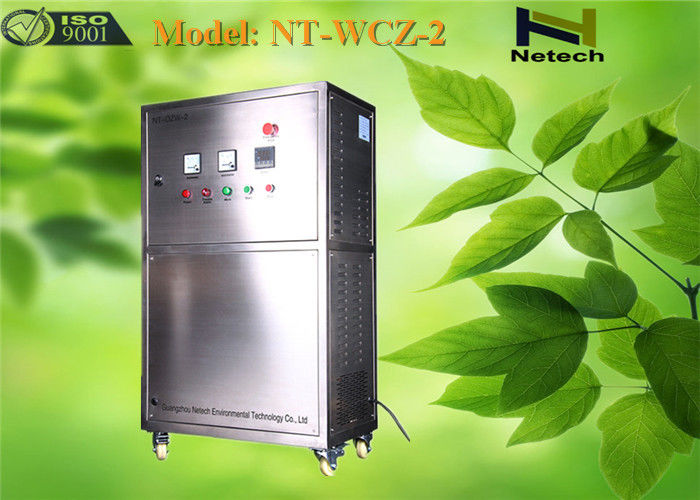

1800~2400 Liters 220v / 50hz Municipal Drinking Water Treatment Ozone Generator
Brand Name: Netech
Model Number: NT - WCZ - 2
Material: stainless steel housing
Warranty: one year warranty
Adjustable rate: 20% - 100% adjustable ozone
|Power supply||220V,50HZ / 60HZ|
|Commodity||Ozone water system|
|Rated Water flow||1800~2400 Liter per hour|
How to use ?
1. Before use this machine, put it in a stable flat place which can hold its weight.
2. Use the power equipped with the machine;
3. The machine use for air purification, firstly attach the silicone tube into the
ozone outlet and then turn on the power;
4. Set the timer and then come out ozone, and put the tube into the room.
5. When use for room air purification, it requires nobody is present , after 30
minutes people can walk into the room.
6. If use for water treatment, the air stone should be attached into the silicone
tube and put into the water.
7. Attention, the machine should be placed higher than the water, incase that the water reflux occur.
NT-WCZ-2, this system can produce OZONE WATER 1800~2400 liter per hour, and it can controls output of ozone dissolved water with concentration from 4mg/l to 15mg/l.
1. Stainless steel housing
2. Built-in Air dryer and PSA high purity oxygen concentrator
3. Built-in of product –ozone generator tube with high frequency electric board
4. Built-in High efficiency ozone mixing system
5. It can be Movable with wheels
6. Built in anti water return equipment, it can prevent water return back to machine.
7. All the pipe and pipe fittings is stainless steel material
8. It can custom-made according to customer’s requirement.
9. Easy operation.
Ammeter, Voltmeter, Timer, Emergency stop, working light, Power light, Trouble Alarm, Working light, Start light, Stop light
treatment industry It can be used to clean apparatus and instruments and treatment of disease.
Food processing factory It can be used to clean pipeline, production equipment and vessel during
Food processing factory; wash fruits & vegetables to remove mold and bacteria; wash meat and poultry to remove bacteria and extend refrigerated shelf life. Pharmaceutical factory It can be used to clean pipeline,
production equipment and vessel during pharmaceutical factory.
Beverage industry It can be used to clean production water supply for pure water, mineral water and any kinds of beverage, etc. Hotel, Dining Hall, Restaurant etc. It can be widely used in hotel, dining hall, restaurant, etc in order to clean tableware, vegetables, fruits, toy for children and surface of other objects. Sea food factory It can be used to make Ozonation Ice to pack fresh fish and seafood to prolong freshness; remove smell of sea food factory and kill bacteria; clean production water supply
Slaughtering It can be used to remove smell of slaughtering and kill bacteria and clean production water supply.
Poultry factory It can be used for removing smell of poultry factory and kill bacteria, cleaning water for poultry feeding.
Swimming pool and SPA It can be used for pool or spa water clean and cleanion. Sewerage water treatment It can be used for effectively destroy bacteria and in the processing of water laden with concentrations of industrial byproducts. Aquaculture and aquarium water clean it can be used to achieve water quality improvements by micro flocculating fine particulate matter (making particles that are easier to settle or filter) and oxidizing non biodegradable organic molecules (creating smaller and more biodegradable molecules), nitrite, and refractory organic molecules (reducing water color) in Fresh water & Seafood cultivating factory; Fresh water & Seawater hatcheries; aquarium, aquaculture, fishing farm. Ozone laundry system for Washing machine it can be used to reduce all bacteria and viruses that may be on any linens, wiping cloths, or clothing; reduce the cross contamination of illness in nursing home and hospital facilities.
|High pure ceramic ozone tube||Long use life, high ozone concentration, low temperature, continuous working|
|High frequency and high pressure ozone power board||Adjustable frequency, adjustable width and audible alarm. It will not damage the power board if circuit break or short circuit.|
|Oil free air compressor||Offer clean air source|
|Air dryer||Offer clean and dry air source|
|PSA high pure oxygen sieve||Offer oxygen purity: 93%|
|Stainless steel high efficiency gas liquid mixing pump||The pump sucks the liquid and air, then mix them. The micro air bubble of gas-liquid dissolving effect is good|
|Stainless steel high efficiency static mixer||Enhance dissolved effect is more than three times|
|Stainless steel anti water return equipment||It can prevent water return back to machine|
|Water level sensor||Prevent the equipment running without water or lack of water|
|Alarm device||Humanized remind users equipment anomalies|
|NT - WCZ - 2|
|Working Voltage||V / HZ||220V / 50HZ / 60HZ|
|Dissolved ozone concentration in water||PPM||4 - 15|
|Rated Water flow||L/hr||1800 ~ 2400L per hour|
|Ambient temperature||℃||3 - 40℃|
|Ambient Humidity||%||≤ 70%|
|Mixing pressure||Mpa||0.25 - 0.4Mpa|
|Water Output Pressure||Mpa||0.05 - 0.2Mpa|
|Diameter of input water pipe||inch||1"|
|Diameter of output water pipe||inch||3 4"|
|Dimension||mm||750 * 450 * 1300mm|
Noted: Net weight will be 10% different for different plug
Question and answer
♦ Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid further leakage.
So far there is no one died reported caused by ozone poisoning.
♦ Does the ozone generator work efficiently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficiently and resolve the harmful material in a short time.
In order to ensure the best quality , every ozone generator has been strictly tested before delivery.
We promise the good performance and all parts completely
according to you
Gold supplier--Guangzhou Netech Environmental Technology Co., Ltd ,15 years of experience in Water Treatment and Environment R&D and Engineering,
we are able to solve all your solutions in Environmental Protection and Water Treatment.
We provide 12 month free maintenance.The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced,the buyer should also pay for the costs of the parts to be replaced.
1. 3-7 days for portable ozone generator/ozone generator spare parts order;
2. 10-30 days for industrial/middle size ozone generator order;
3. Delivery could be courier, airline or sea
|A) Inner layer: plastic bag|
|B) Middle layer: EPE(Expandable Polyethylene)|
|C) Outer Layer: carton/composite wooden
