Sea water Fish Protein Skimmer for RAS aquaculture recirculating system
The protein skimmer can be used to reduce the physical and chemical gels. It used the role of adsorption of surface tension of the bubble to enrichment and separation organic, removal the colloidal suspension, cellulose, protein, bait and faeces and other organics in the wastewater. Meanwhile, the protein separator can be used as an ozone mixing tower, which can separate protein and use ozone to do the cleanions.

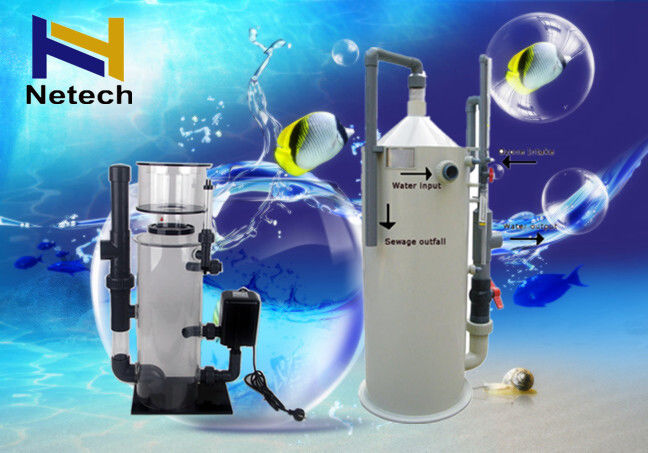

First, water enter from the bottom of Protein Skimmer, “S” shape water stream, water moving up and then roll down to the water outlet;
Second, using the PDO device for producing bubble, and it enters into the mixing chamber with water together, liquid and air fully mixing in water when the water is rolling then reaches to the water outlet, water goes out from the bottom, but the not dissolved & suspended particles are gather in the surface of micro-bubble, then enter into the collecting pipe, coming out from the sewage disposal;
Third, treated water coming out from the main water outlet, water outlet valve can adjust the liquid level of Protein skimmer.
1. Instead the using of Venturi, Booster pump, low power for saving energy.
2. Using the collecting pipe, no need to clean, for saving water.
3. PDO air intake device produces abundance air bubble, for high separate efficiency.
4. Using two ways water stream design, for high air-liquid mixing result, high separate efficiency.
5. Trouble-free design, long service life but free maintenance.
|Water Input /Output Size (mm)|
1. Removing organism such as night soil, colloid etc, for reducing the load of biological treatment and ensuring the water quality.
2. Increasing dissolved oxygen in water, for improving the biological treatment efficiency.
3. Removing the harmful air in water, stabilize the PH in water.
4. Mixing ozone in water also has the function of clean, clean ion and remove algae in water.
1. Seafood cultivating factory
2. Seawater hatcheries
3. Ocean polis , aquarium etc
4. Swimming pool water treatment
5. Sewage water treatment, and the lines used for ozone mixing into water
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should bear the shipping costs for return.
