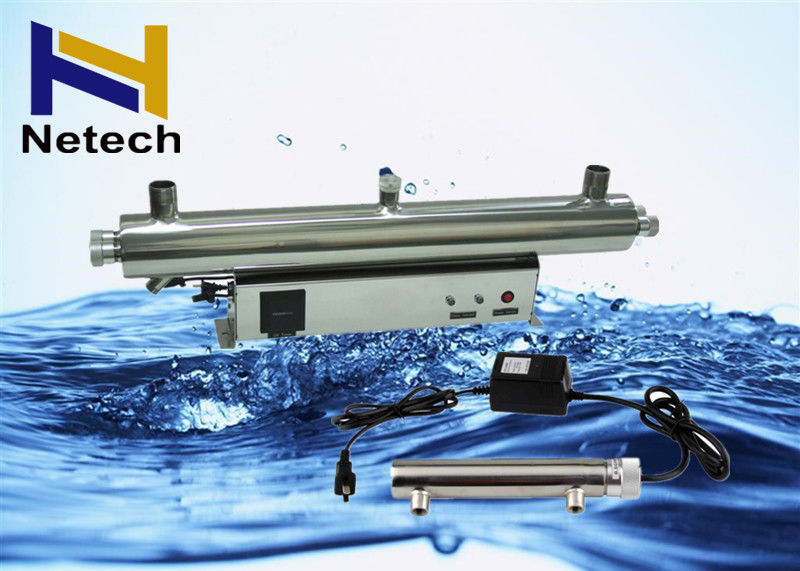

UV Water cleanr / UV Light cleanr For Sewage Water Treatment 40W 80W

UV Water cleanr / UV Light cleanr For Sewage Water Treatment 40W 80W

  • High Light

    ozone generator water treatment

    ,

    ozone generator wastewater treatment

  • Lamp Cover Material
    304 Or 316l Stainless Steel
  • Cleaning Rate
    99.99%
  • Water Flow Rate
    0.1 T/h-500 Ton/hr
  • Standard
    America NSF55 Standard And CJ/T204-2000
  • Lamp Tube
    America Hanovia Lamp Tube
  • UV Lamp Power
    8w 10w 14w 28w 40w 80w 120w
  • Place of Origin
    China(guangzhou)
  • Brand Name
    Netech
  • Model Number
    NT-UV
  • Minimum Order Quantity
    1 set
  • Price
    For further discussion
  • Packaging Details
    Carton
  • Delivery Time
    3-5 working days after received your payment
  • Payment Terms
    D/P, L/C, D/A, T/T, Western Union
  • Supply Ability
    1000 sets/month

UV Water cleanr / UV Light cleanr For Sewage Water Treatment 40W 80W

UV Water cleanr / UV Light cleanr For Sewage Water Treatment 40W 80W







Features:

  1. Water flow rate: 0.1t/h - 500 ton/hr which can meet with different water capacities.
  2. Warranty: 10 years warranty for stainless steel housing, other components are 1 year.
  3. Material: Use SS304 or SS316L material for reaction chamber, combined with full-automatic welding. All connections are smoothly without any corner;
  4. Chamber: Internal & external polishing mirror chamber with high brightness for greatly improved UV intensity and clean effect.
  5. Thickness: The thickening design of chamber which is strictly tested air & water pressure before shipping. It can withstand 0.8 Mpa, and fully prevents from water leakage.
  6. Lamp: Use imported low-pressure but high-strength mercury lamp, which has 9000-13000 hrs service life(Max); assorted with high-efficiency electron ballast, it improves product service life and effect, so that the cleaning rate up to 99.99%.



Application:



1.Food processing industry, including juices, milk, drinks, beer, practical oil and canned food.

2.Electronic industry.
3.Hospitals, various laboratory and high levels of pathogenic body water cleanion.

4.Households building, residential, office buildings, hotels, restaurants, water factories.
5.Purification and cleanion of shellfish, fish cleaning and cleanion

6.Military camp, field water supply system
7.Urban wastewater cleanion.
8.Swimming pool, other recreational water cleanion
9.Thermal power, nuclear power plant industrial, central air conditioning system cooling water.
10.Biological, chemical and pharmaceutical, cosmetics for the production of cooling water.
11.Sea water, fresh water breeding, aquaculture water

12.Agricultural water cleanio



Specifications:



Model

Water flow

(T/Hr)

Power

(W)

Size

(mm)

Water Input & Ouput Size

Max Pressure

(Mpa)

NT-UV005G

0.1

8

250×48×65

1/4″

0.8

NT-UV01G

0.2

10

295×60×80

1/4″

NT-UV02G

0.5

14

370×60×80

1/2″

NT-UV04G

1

17

450×73×110

1/2″

NT-UV06G

1.3

23

520×73×110

3/4″

NT-UV08G

1.8

28

650×73×110

3/4″

NT-UV12G

2.7

40

950×73×110

1″





                                                                          NT-UV3~30T

Model

Water flow

(T/Hr)

Power

(W)

Size

(mm)

Water Input & Ouput Size

Max Pressure

(Mpa)

NT-UV3T

3

40×1

950×125×250

1″

0.8

NT-UV5T

5

40×2

950×138×280

1.2″

NT-UV8T

8

40×3

950×170×310

1.5″

NT-UV12T

12

40×4

950×195×335

2″

NT-UV15T

15

40×5

950×195×335

2″

NT-UV20T

20

80×3

950×205×405

2.5″

NT-UV25T

25

80×4

950×275×465

2.5″

NT-UV30T

30

120×3

1250×275×545

3″


Quality control

Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.


Why choosing us?



1.Having 10 years production experienced .We are trusty business partner.

2.Quality Controlled:Quality Control personnel check the quality at every

stage of production, from the incoming raw materials to the finished product.

3.NT-UV Production Capacity: 1000 pcs per month.

4.We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.

5.We supply OEM service according to customers' requests and give out professional suggestions.



Distributors Offer : Welcome to be our distributor .
