    Product Details:

    Place of Origin: China Guangzhou
    Brand Name: Netech
    Model Number: Venturi

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: with froth in cartons or wooden case
    Delivery Time: 3 to 5 days
    Payment Terms: paypal,western union,T/T,credit card
    Supply Ability: 1000 per weeks
    Contact Now
    Detailed Product Description
    Model: A25100 Material: PVDF
    Water Flow Rate: 0.1-1 T/Hr Flexible Hose: 1/4’’
    Length: 100 Mm Application: For Water Treatment
    High Light:

    aquarium protein skimmer

    ,

    refrigerated air dryer

    0.05-50T/Hr Ozone Mixer Water Venturi Vacuum Valve For Drinking Water Treatment





    1.Quick Detail



    water treatment Venturi

    Material:PVDF, which is Corrosion, high temperature, durable,etc.

    Connect with ozone generator

    flexible hose is 1/4'';

    Length: 100 mm





    2.Description



    Material PVDF

    Color black

    Water flow rate 0.1-1T/Hr

    MOQ 1 piece

    Connection For water treatment, it needs to connect with ozone generator

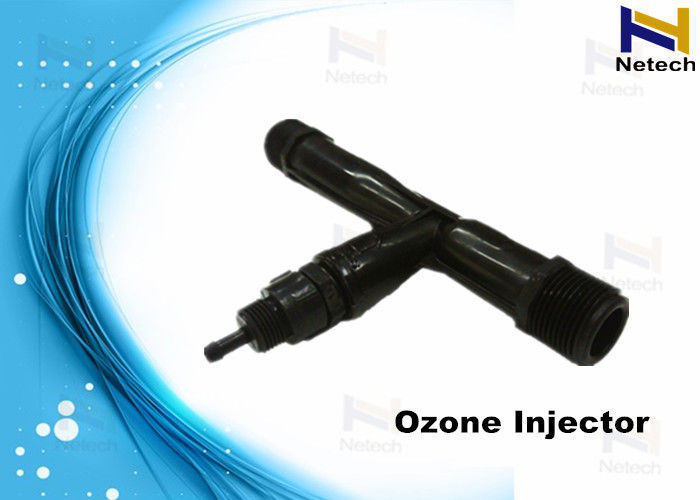

    Venturi is designed to be used with an ozone generator for water treatment. It is made of anti-ozone material, PVDF. Connected to your existing filtration system it allows an ozone injection point, where the vacuum effectively sucking the ozone gases into the water flow





    3.Specification:



    Marks Model

    Quantity

    (PC)

    Size

    (mm)

    2 inch 1/2 inch zone Water Venturi Vacuum Valve / Venturi Tubes / Ozone Mixer
    1 A12057 1 57
    2 A25100 1 100
    3 A32235 1 235
    5 A48275 1 275
    6 A58295 1 295

    Model: A12057
    Material:PVD
    Water flow rate:0.05-0.25 T/Hr
    Specification:

    1. Inlet & Outlet diameter1/5'' external screw thread

    2. Valve bonnet of Gas Inlet is 1/8’;

    3. flexible hose is 1/4’’;

    4. Length: 57 mm

    Model: A25100
    Material:PVDF
    Water flow rate: 0.1-1 T/Hr
    Specification:

    1. Inlet & Outlet diameter1/2’'external screw thread

    2. Valve bonnet of Gas Inlet is 1/4’;

    3. flexible hose is 1/4’’;

    4. Length: 100 mm

    Model : A32235
    Material: PVDF
    Water flow rate:3-10 T/Hr
    Specification:

    1. Inlet & Outlet diameter 1’'external screw thread.

    2. Valve bonnet of Gas Inlet is 1/2’;

    3. flexible hose is 3/8’

    4. Length: 230 mm

    Model: A25152
    Material: PVDF
    Water flow rate: 1~3 T/Hr
    Specification:

    1. Inlet & Outlet diameter3/4’'external screw thread

    2. Valve bonnet of Gas Inlet is 1/4’;

    3. flexible hose is 1/4’’;

    4. Length: 152 mm

    Model: A48275
    Material: PVDF
    Water flow rate:10~25 T/Hr
    Specification:

    1. Inlet & Outlet diameter 1.5’'screw thread

    2. Valve bonnet of Gas Inlet is 1/2’;

    3. flexible hose is 1/2’’;

    4. Length: 275mm

    Model: A58295
    Material: PVDF
    Water flow rate: 25~50T/Hr
    Specification:

    1. Inlet & Outlet diameter 2’' screw thread

    2. Valve bonnet of Gas Inlet is 1.25’;

    3. flexible hose is 1/2’’;

    4. Length: 295mm





    4. After sales service



    We provide 12 month free maintenance.

    The buyer should return the product in the original conditions to us and should bear the shipping costs for return.
