Durable Aquaculture Ozone Generator With Protein Skimmer Fish Farm Equipment O2 Machine

Place of Origin China
Brand Name Netech
Minimum Order Quantity 1 unit
Price For further discussion
Packaging Details with foam in carton or wooden case
Delivery Time 3 to 5 working days
Payment Terms T/T,Western union,credit card, L/C, D/A, D/P, MoneyGram
Supply Ability 1000 per weeks
Product Details
Application Saltwater Aquaria,fish Farm,etc MOQ 1 Unit
Warranty 12 Months
High Light

spa necessities ozone generator

,

ozone generator for fish farm

Leave a Message
Product Description

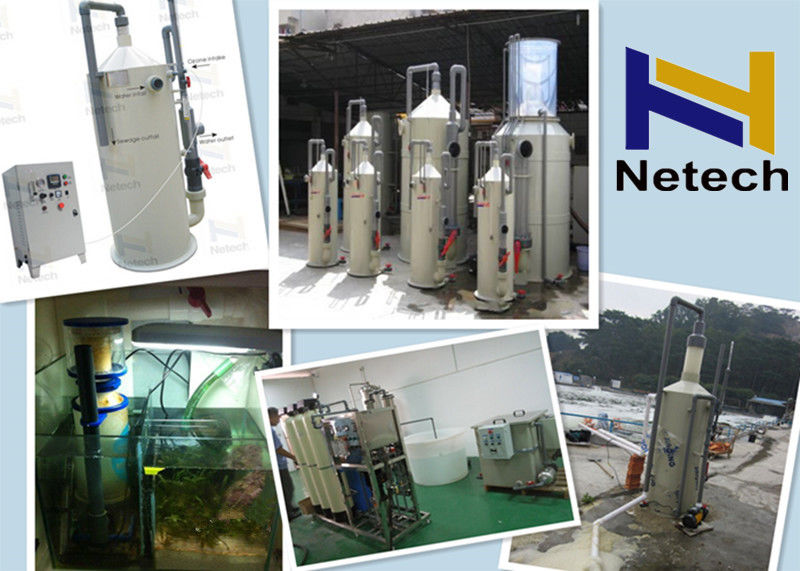

      Aquaculture Ozone Generator With Protein Skimmer Fish Farm Equipment O2 Machine




Descriptions:



Protein skimmers are used mostly in saltwater aquaria to remove organic compounds from the water before they break down into nitrogenous waste. Protein skimming is the only form of filtration that physically removes organic compounds before they begin to decompose, lightening the load on the biological filter and improving the water’s redox potential.

Protein skimmers extract dissolved organic waste products (proteins) from the aquarium by mechanically removing them through foam fractionation. Efficient skimmers remove proteins before they breakdown and pollute the water. Skimming enhances the quality of the aquarium’s environment as well as its appearance.



Features:


*  Instead the using of Venturi, Booster pump, low power for saving energy.
*  Using the collecting pipe, no need to clean, for saving water.
*  PDO air intake device produces abundance air bubble, for high separate efficiency.
*  Using two ways water stream design, for high air-liquid mixing result, high separate efficiency.
*  Trouble-free design, long service life but free maintenance.



Functions of protein skimmer:


◆    Protein skimming removes certain organic compounds, including proteins and amino acids, by using the polarity of the protein itself. Due to their intrinsic charge, water-borne proteins are attracted to the air/water interface. Protein skimmers works by injecting numerous tiny bubbles into the water column. The small bubbles present an enormous air/water interface for the protein molecules to cling to. The longer the bubble resides in the water, the more proteins it is able to attract. The action of a protein skimmer is often compared to the action of waves producing sea foam.
◆    Besides removing proteins, our skimmers also removes other substances such as fats and fatty acids, carbohydrates, metals such as copper complexed with proteins, and certain trace elements such as iodide, in addition to particulates and other detritus, phytoplankton, and bacteria.
◆    Increasing the dissolved oxygen in water, for improving the biological treatment efficiency.
◆   Removing the harmful air in water, stabilize the PH in water.
◆   Mixing ozone in water also has the function of clean, clean ion and remove algae in water.
◆   Although copper and other metals can be removed through protein skimming, the element is attached to organic molecules, and then removed with the organic. Oil molecules (fats) can cause skimmer foam to collapse, handicapping its efficiency to produce a dry foam.



Appliance:


◆   Seafood cultivating factory
◆   Seawater hatcheries
◆   Oceanopolis, aquarium etc
◆  Swimming pool water treatment
◆   Sewage water treatment, and the lines used for ozone mixing in water



External small Type



Model(L/H)

Size

(Dia./H mm)

Pump

Rated/actual power

Max size of tank (L)

XW-600

120/665

6530

50W/23W

600

XW-700

150/665

6530

50W/23W

700

XW-900

150/510

SP3

13W

900

XW-1200

200/740

6540

100W/33W

1200

XW-1800

200/595

SP3

13W×2

1800

XW-2200

200/820

6540×2

100W/33W×2

2200



Internal Small Type:



Model

Size

(Dia./H mm)

Pump

Rated/actual power

Max size of tank (L)

XN-600

120/510

6530

50W/23W

600

XN-700

150/510

6530

50W/23W

700

XN-750

120/510

SP2

10w

750

XN-900

150/510

SP3

13W

900

XN-1100

150/510

6540

100W/33W

1100

XN-1200

200/595

6540

100W/33W

1200

XN-1800

200/595

SP3

13W×2

1800

XN-2200

200/595

6540×2

100W/33W×2

2200



Remarks:

1.We also have large protein skimmer with 10-200m3/hr capacity.

2.It can use with the ozone generator for fish farm RAS system

3.Warranty :one year
