1 inch Other Ozone Generator Subsidiary Facilities PVDF Venturi Injector Ozone Water Mixing Device

1 inch Other Ozone Generator Subsidiary Facilities PVDF Venturi Injector Ozone Water Mixing Device

  • High Light

    molecular sieve zeolite

    ,

    aquarium protein skimmer

  • Model
    A32235
  • Material
    PVDF(anti-ozone Material)
  • Water Flow Rate
    3-10 T/H
  • Flexible Hose
    1/8’’
  • Length
    230 Mm
  • Application
    Water Treatment
  • Place of Origin
    China
  • Brand Name
    Netech
  • Minimum Order Quantity
    1 set
  • Price
    For further discussion
  • Packaging Details
    with froth in carton or wooden case
  • Delivery Time
    1 to 2 working days after payment confirmed
  • Payment Terms
    Paypal,T/T,Western union,credit card
  • Supply Ability
    1000 per weeks

1 inch Other Ozone Generator Subsidiary Facilities PVDF Venturi Injector Ozone Water Mixing Device

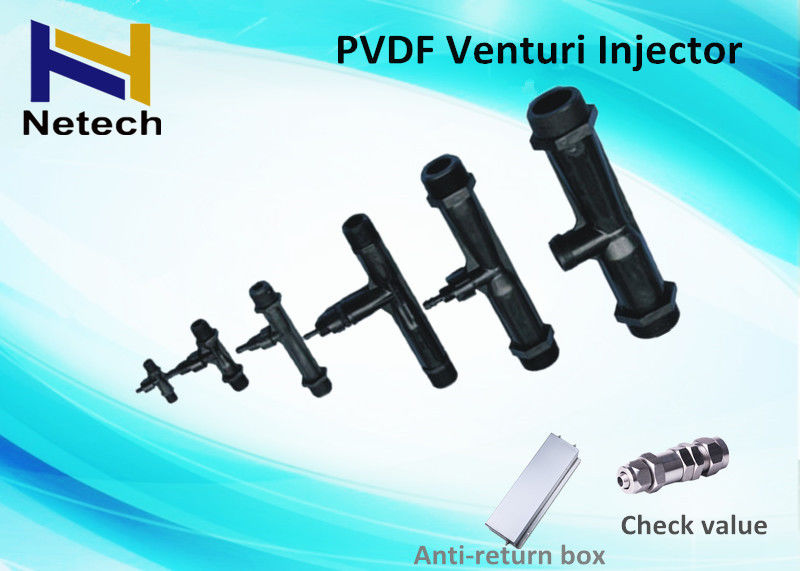

PVDF Venturi Injector , Ozone Water Mixing Device In Water Treatment 1 inch







Quick Detail

Item

Gas and water mixing device

Material PVDF(ozone resistance material)
Model Depends on the water flow
MOQ 1 piece
Usage Water treatment

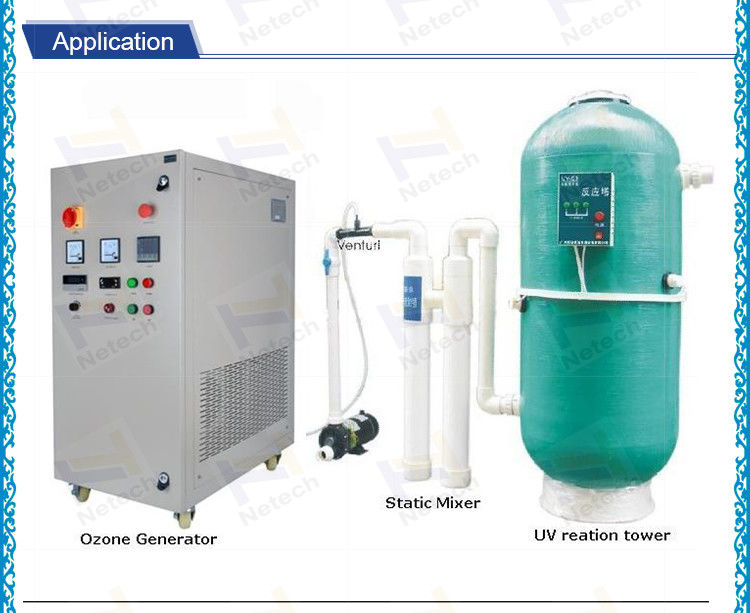

Application home drinking water,swimming pool,wastewater,etc
Warranty 12 months




Description:

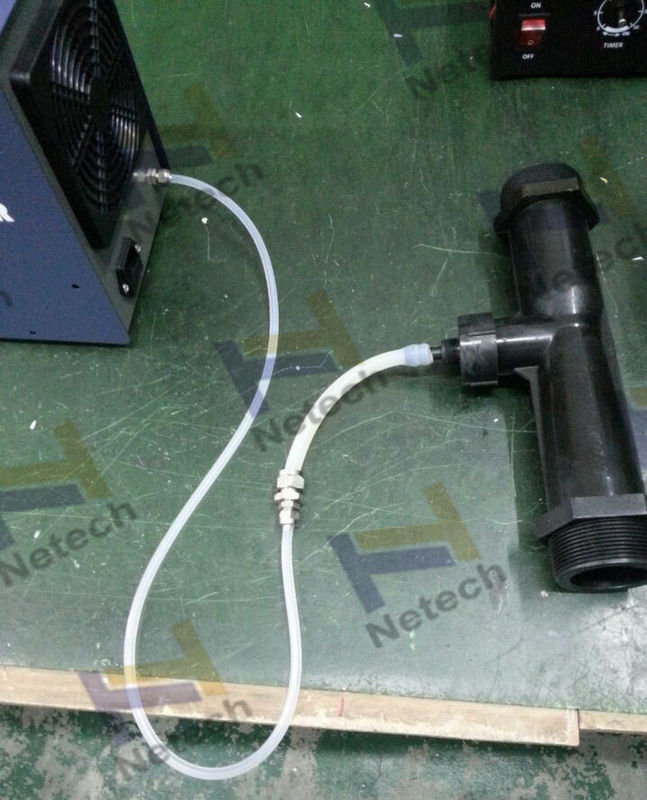

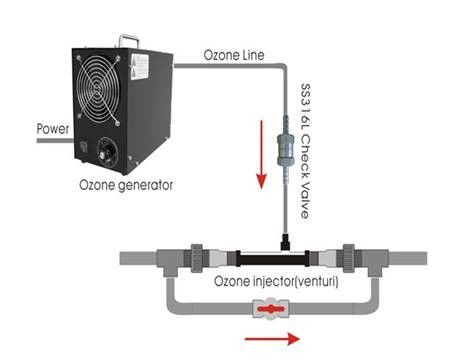

Venturi is designed to be used with an ozone generator for water treatment. It is made of anti-ozone material, PVDF. Connected to your existing filtration system it allows an ozone injection point, where the vacuum effectively sucking the ozone gases into the water flow


Specification:

Marks Model

Quantity

(PC)

Size

(mm)

1 inch Other Ozone Generator Subsidiary Facilities PVDF Venturi Injector Ozone Water Mixing Device 0
1 A12057 1 57
2 A25100 1 100
3 A32235 1 235
5 A48275 1 275
6 A58295 1 295

Model: A12057
Material:PVD
Water flow rate:0.05-0.25 T/Hr
Specification:

1. Inlet & Outlet diameter 1/5'' external screw thread

2. Valve bonnet of Gas Inlet is 1/8’;

3. flexible hose is 1/4’’;

4. Length: 57 mm

Model: A25100
Material:PVDF
Water flow rate: 0.1-1 T/Hr
Specification:

1. Inlet & Outlet diameter 1/2’'external screw thread

2. Valve bonnet of Gas Inlet is 1/4’;

3. flexible hose is 1/4’’;

4. Length: 100 mm

Model : A32235
Material: PVDF
Water flow rate:3-10 T/Hr
Specification:

1. Inlet & Outlet diameter 1’'external screw thread.

2. Valve bonnet of Gas Inlet is 1/2’;

3. flexible hose is 3/8’

4. Length: 230 mm

Model: A25152
Material: PVDF
Water flow rate: 1~3 T/Hr
Specification:

1. Inlet & Outlet diameter3/4’'external screw thread

2. Valve bonnet of Gas Inlet is 1/4’;

3. flexible hose is 1/4’’;

4. Length: 152 mm

Model: A48275
Material: PVDF
Water flow rate:10~25 T/Hr
Specification:

  1. Inlet & Outlet diameter 1.5’' screw thread
  2. Valve bonnet of Gas Inlet is 1/2’;
  3. flexible hose is 1/2’’;
  4. Length: 275mm

Model: A58295
Material: PVDF
Water flow rate: 25~50T/Hr
Specification:

1. Inlet & Outlet diameter 2’' screw thread

2. Valve bonnet of Gas Inlet is 1.25’;

3. flexible hose is 1/2’’;

4. Length: 295mm





Quality control



Every procedure has personnel inspection.

All the products must be tested and qualified before packaging.



After sales service



We provide 12 month free maintenance.

The buyer should return the product in the original conditions to us and should bear the shipping costs for return.
