High Purity Twelve Towers Oxygen Generator Easy Control , 60Db Noise

High Purity Twelve Towers Oxygen Generator Easy Control , 60Db Noise

  • High Light

    ozone accessories

    ,

    ceramic ozone tube

  • Relative Humidity
    70%±10%
  • Oxygen Output
    3lpm,5lpm,7lpm,10lpm,15lpm
  • Oxygen Concentration
    90%±3%
  • MOQ
    1 Set
  • Guarantee Period
    12 Months
  • Noise
    60Db
  • Place of Origin
    China Guangzhou
  • Brand Name
    Netech
  • Model Number
    NTOX3-15AL
  • Minimum Order Quantity
    1
  • Packaging Details
    with froth in cartons or wooden case
  • Delivery Time
    3 to 5 days
  • Payment Terms
    paypal,western union,T/T,credit card
  • Supply Ability
    1000 per weeks

High Purity Twelve Towers Oxygen Generator Easy Control , 60Db Noise

3L 5L 8L15L High Purity Twelve Towers Oxygen Generator Supplier Easy Control




1. Quick Detail



oxygen generator concentrator
About 95% concentration
Stable oxygen output
Each tower working independently,Durable


2. Description



Warranty: 1 year

Noise: ≤ 60Db

Application: oxygen increasing

Output: 3L 5L 7L 10L 15L

outlet pressure: 0.06~0.08Mpa

oxygen purity: 93% + - 3%

technology pressure swing absorbtion (PSA)





3. Specifications:



Item Unit NTOX3AL NTOX5AL NTOX7AL NTOX10AL NTOX15AL
Oxygen output LPM 3 5 7.5 10 15
Oxygen concentration % 90%±3% 90%±3% 90%±3% 90%±3% 90%±3%
Air flow rate LPM 36-45 60-75 90-115 90-115 180-200
Pressure(inlet) Mpa 0.14-0.18 0.14-0.2 0.15-0.21 0.18-0.25 0.35
Pressure(outlet) Mpa 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08
Temperature indoor temperature
Relative humidity % ≤ 70%±10%
Noise Db ≤ 60 ≤ 60 ≤ 60 ≤ 60 ≤ 60
Dimension mm Ф200 * 310 Ф200 * 430 Ф200 * 500 Ф200 * 560 Ф200 * 880
Net weight kg 15.70 18.30 19.30 30.60 32.5



4. Instruction

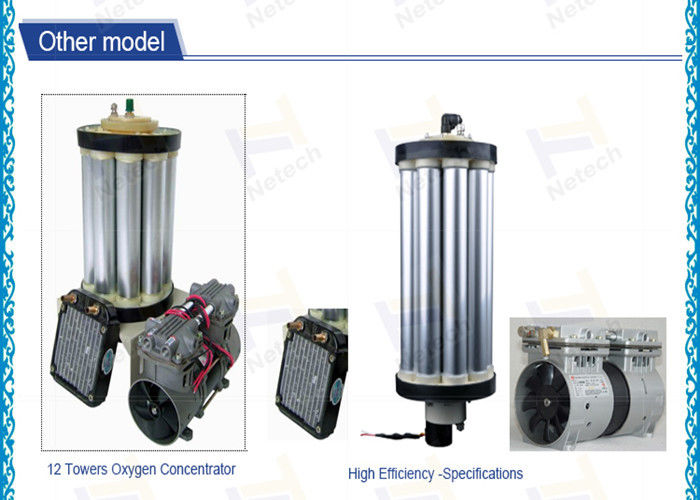

12 Towers Oxygen Concentrator
ed products NT-OT series molecular sieve is an air separation plant which has already obtained domestic .
Rational construction Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
Easy to control Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.
The oxygen output is stable and continuously
Low-pressure oxygen production working pressure less than 3 KG.





5. Appliance of oxygen machine:


• Fish Farming Ozone Generator
• Sewage Treatment Pulp & Paper
• Chemical Oxidation Rough Cutting
• Battery Manufacture Melting
• Mini-Steel Mills Cement & Lime Kilns





6. Quality control



Every procedure has personnel inspection.

All the products must be tested and qualified before packaging.





7. After sales service



We provide 12 months free maintenance.

The buyer should return the product in the original conditions to us and should bear the shipping costs for return.
