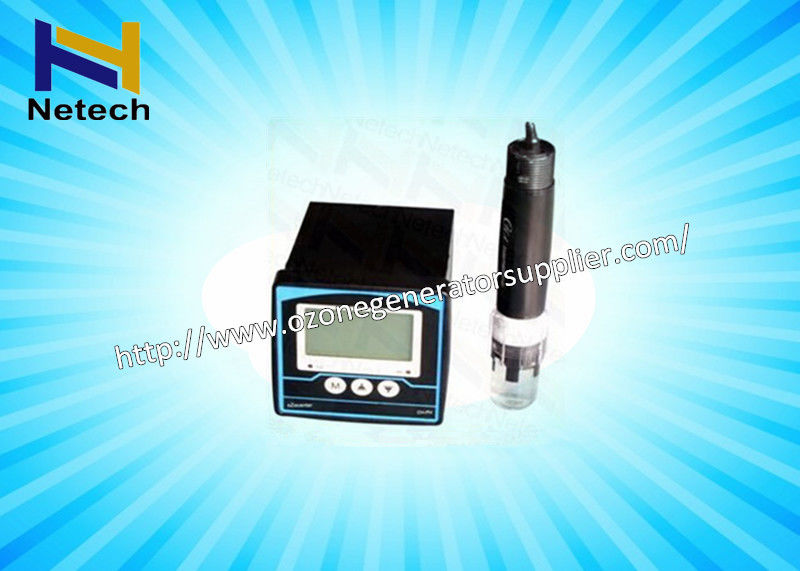

Precison PH / ORP Meter In Water Treatment With Sensor Redox ORP Controller
1. An ORP meter measures very small voltages generated with a probe placed in ozonated water. The electrode is made of platinum or gold, which reversibly looses its electrons to the oxidizer. A voltage is generated which is compared to a silver (reference) electrode in a silver salt solution, similar to a pH probe.
2. ORP Advantages:
ORP is valid over a wide pH range, and ORP probes are rugged enough to be place into processes for in-line measurement. The probes can withstand process pressures in excess of 30 PSI.

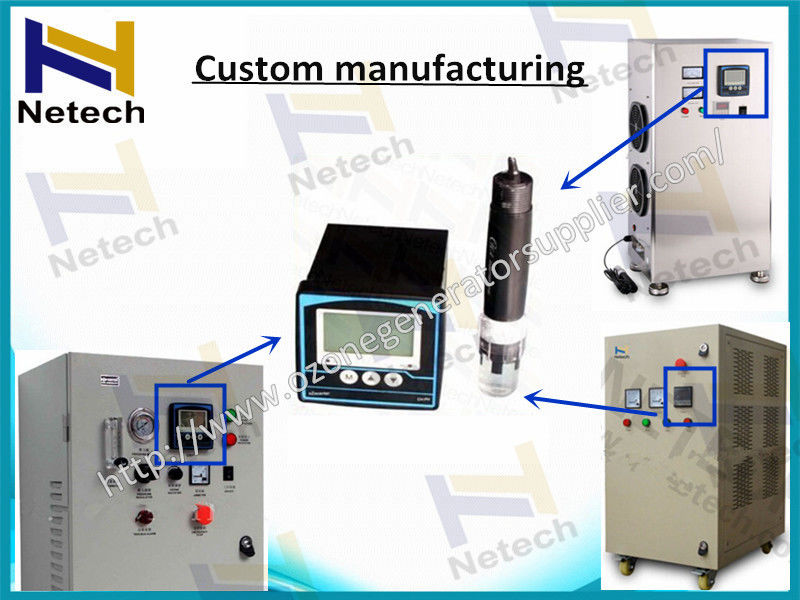

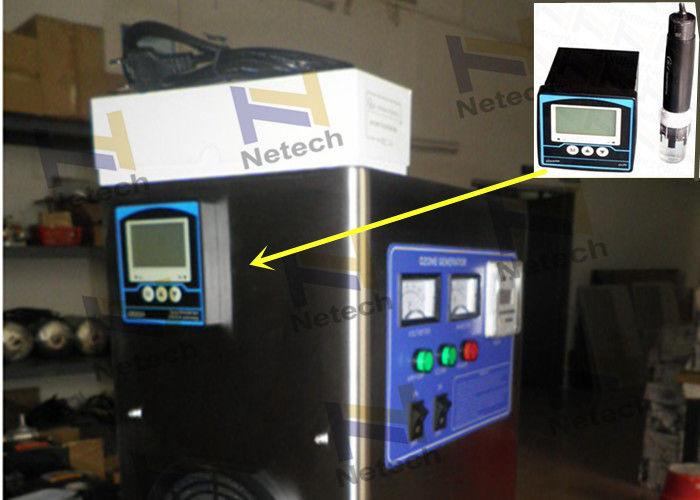

3.It can customization and install on the ozone generator and Realize the function of the linkage.
|ORP Measuring Range||0~14Ph-1000~+1000mV|
|Definition||±0.01 PH 1mV|
|Resolution ratio||0.01PH 1mV|
|pH adjust range||0±4.5pH slope±30%|
|Control||ON/OFF relay tip|
1. LCD digital display
2. Direct reading and accurate control with Micro chip for data processing. 4-20mA current output realize long distance signal output.
3. It has strong anti-interference and automatically break away the power.
4. LCD Screen: used to display mV valve, high and low limits of ranges as well as error marks.
Function of ozone:
1. Aquaculture, Aquarium, Fish farming Water treatment
2. Swimming pools Water treatment
3. Sewage water treatment
4. Various Water cleaniont clean
5. Car Air purification and clean
6. Food cleanion,household air and water purifier
7. Ozone generator for kitchen exhaust,poultry farm, laundry , water tanks , hospitals
Why choosing us?
1.Having 10 years production experienced .We are trusty business partner.
2.Quality Controlled:Quality Control personnel check the quality at every
stage of production, from the incoming raw materials to the finished product.
3.NT-ORP: Production Capacity: 500 sets per month.
4.We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
5.We supply OEM service according to customers' requests and give out professional suggestions.
Distributors Offer : Welcome to be our distributor .
