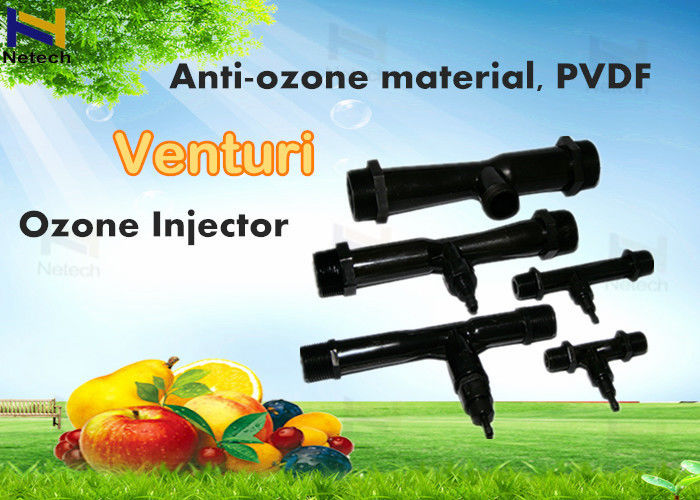

PVDF Venturi Air Injector Ozone Generator Parts For Ozone Water Treatment Systems

  • PVDF Venturi Air Injector Ozone Generator Parts For Ozone Water Treatment Systems
  • PVDF Venturi Air Injector Ozone Generator Parts For Ozone Water Treatment Systems
  • PVDF Venturi Air Injector Ozone Generator Parts For Ozone Water Treatment Systems
  • PVDF Venturi Air Injector Ozone Generator Parts For Ozone Water Treatment Systems
Place of Origin China Guangzhou
Brand Name Netech
Model Number Venturi
Minimum Order Quantity 1
Packaging Details with froth in cartons or wooden case
Delivery Time 3 to 5 days
Payment Terms paypal,western union,T/T,credit card
Supply Ability 1000 per weeks
Product Details
Material PVDF Water Flow Rate 0.05-50 M3/hr
Pipe Size 1/4-2 Inch Gas Inlet 1/8-1/2 Inch
Type Venturi Tube/ozone Venturi Injector Application Ozone Gas And Water Mixing For Ozone Water Treatment
High Light

ceramic ozone tube

,

ozone generator tube
Leave a Message
Product Description

PVDF Venturi Air Injector Ozone Generator Parts For Ozone Water Treatment Systems





1.Quick Detail



water treatment Venturi

Material:PVDF, which is Corrosion, high temperature, durable,etc.

Connect with ozone generator

flexible hose is 1/4'';

Length: 100 mm





2.Description



Material PVDF

Color black

Water flow rate 0.1-1T/Hr

MOQ 1 piece

Connection For water treatment, it needs to connect with ozone generator



Venturi is designed to be used with an ozone generator for water treatment. It is made of anti-ozone material, PVDF. Connected to your existing filtration system it allows an ozone injection point, where the vacuum effectively sucking the ozone gases into the water flow





3.Specification



Marks Model

Quantity

(PC)

Size

(mm)

 2 inch 1/2 inch zone Water Venturi Vacuum Valve / Venturi Tubes / Ozone Mixer
1 A12057 1 57
2 A25100 1 100
3 A32235 1 235
5 A48275 1 275
6 A58295 1 295

Model: A12057
Material:PVD
Water flow rate:0.05-0.25 T/Hr
Specification:

1. Inlet & Outlet diameter1/5'' external screw thread

2. Valve bonnet of Gas Inlet is 1/8’;

3. flexible hose is 1/4’’;

4. Length: 57 mm

Model: A25100
Material:PVDF
Water flow rate: 0.1-1 T/Hr
Specification:

1. Inlet & Outlet diameter1/2’'external screw thread

2. Valve bonnet of Gas Inlet is 1/4’;

3. flexible hose is 1/4’’;

4. Length: 100 mm

Model : A32235
Material: PVDF
Water flow rate:3-10 T/Hr
Specification:

1. Inlet & Outlet diameter 1’'external screw thread.

2. Valve bonnet of Gas Inlet is 1/2’;

3. flexible hose is 3/8’

4. Length: 230 mm

Model: A25152
Material: PVDF
Water flow rate: 1~3 T/Hr
Specification:

1. Inlet & Outlet diameter3/4’'external screw thread

2. Valve bonnet of Gas Inlet is 1/4’;

3. flexible hose is 1/4’’;

4. Length: 152 mm

Model: A48275
Material: PVDF
Water flow rate:10~25 T/Hr
Specification:

1. Inlet & Outlet diameter 1.5’'screw thread

2. Valve bonnet of Gas Inlet is 1/2’;

3. flexible hose is 1/2’’;

4. Length: 275mm

Model: A58295
Material: PVDF
Water flow rate: 25~50T/Hr
Specification:

1. Inlet & Outlet diameter 2’' screw thread

2. Valve bonnet of Gas Inlet is 1.25’;

3. flexible hose is 1/2’’;

4. Length: 295mm





4. Applications



Usage: Gas and water mixing

Fertilizer and chemical injection through drip and sprinkler irrigation systems.
A venturi is a device which creates a vacuum when fluid flows through it. The fluid which creates the vacuum is known as the motive fluid. The motive fluid for irrigation injectors is the irrigation water itself. Vacuum created by the venturi sucks fertilizer or chemical into motive water.





5. After sales service



We provide 12 month free maintenance.

The buyer should return the product in the original conditions to us and should bear the shipping costs for return.



PVDF Venturi Air Injector Ozone Generator Parts For Ozone Water Treatment Systems 1







PVDF Venturi Air Injector Ozone Generator Parts For Ozone Water Treatment Systems 2
