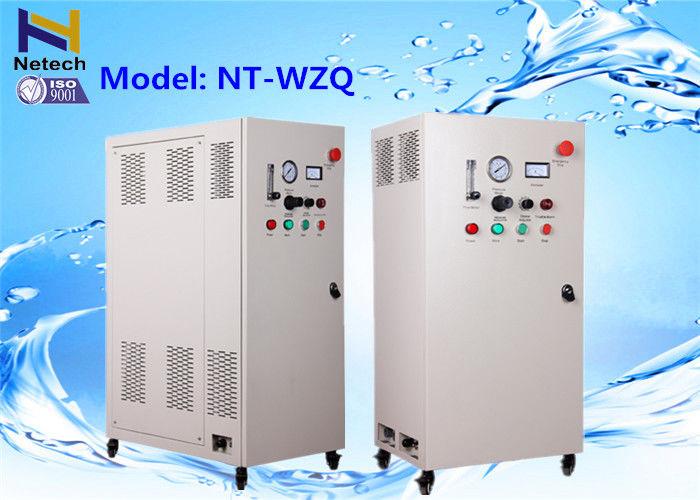

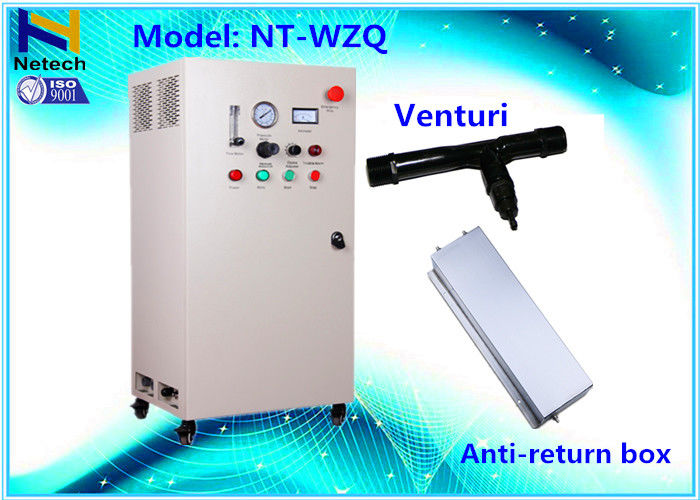

220V Oxygen Source Large Ozone Generator cleaning Water / Well Water Ozone Generator

220V Oxygen Source Large Ozone Generator cleaning Water / Well Water Ozone Generator

  • High Light

    high output ozone generator

    ,

    longevity ozone generators

  • Oxygen Flow Rate
    1-20LPM
  • Ozone Concentration
    69~88Mg/L
  • Ozone Output
    5-84
  • Fuse
    3A
  • Cooling Water Flow Rate
    30/48LPM
  • Size
    460×390×840mm
  • Place of Origin
    Guangdong China
  • Brand Name
    Netech
  • Model Number
    NT-WZQ
  • Minimum Order Quantity
    1 unit
  • Price
    $800
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    3-7 working days after received your payment
  • Payment Terms
    T/T Western Union Credit Card/ Paypal
  • Supply Ability
    50 sets per month

220V Oxygen Source Large Ozone Generator cleaning Water / Well Water Ozone Generator

220V Oxygen Source 10g-60g Ozone cleaning Water / Well Water Ozone Generator





        Quick Details



Brand Name Netech
Model Number NT-WZQ
Certification Domestic
Ozone Output Way Water Cooling
Warranty One Year Warranty
Ozone Concentration High Concentration




Description



Adjustable range 20%-100%
Cooling way Air Cooling
Ozone output 10g 20g 30g 40g 50 g/hr
Material Ceramic Tube
Commodity Ozone Water Purifier
Size 460*390*840mm
Timer 0-30 mins or working continuously
Functions clean, Detoxication, Remove Odor...







How To Use ?



1. Before use this machine, put it in a stable flat place which can hold its weight.

2. Use the power equipped with the machine;

3. The machine use for air purification, firstly attach the silicone tube into the

ozone outlet and then turn on the power;

4. Set the timer and then come out ozone, and put the tube into the room.

5. When use for room air purification, it requires nobody is present , after 30

minutes people can walk into the room.

6. If use for water treatment, the air stone should be attached into the silicone

tube and put into the water.

7. Attention, the machine should be placed higher than the water, incase that the water reflux occur.





Applications



Drinking water treatment, Spring water treatment ozone generator, Vegetable and fruits wash machine, Chemical oxidation, Decolour and bleach ozone machine, Ocean Ranch equipment, Ocean Ranch ozone generator, Aquaculture water clean ozone generator, Aquaculture equipment, Remove alga equipment, Aquaculture ozone generator, Aquaculture recycle water treatment equipment, Raw water aquaculture equipment, Connect with outside gas feeding ozone generator, Nursery aquaculture equipment





 Features



1. SS housing / carbon steel sprayed with plastic housing

2. It must connect with outside oxygen generator or oxygen tank

3. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time

4. Small in size, adjustable ozone range: 20%--100%

5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety



Control Panel



Ozone output adjuster, Flow meter , Pressure regulator, Voltmeter, Ammeter, Switch, Emergency stop, Working light, Power light, Alarm





Specifications



Item Unit NT-WZQ
10G 20G 30G 40G 50G
Oxygen flow rate LPM 1~3 2~7 3~10 5~10 8~18
Ozone concentration Mg/L 69~88 52~104 56~93 85~116 60~90
Ozone output G/Hr 5~12 12~22 16~33 34~51 43~64
Power W 220 250 400 510 1300
Fuse A 3 3 3 5 6
Cooling water flow rate LPM 30 48
Size mm 460×390×840





Question And Answer



♦ Is ozone harmful to human body ?

Once the ozone concentration fails to meet the hygiene and safety standard,

we can notice with our sense of smell and dodge away or take actions to avoid

further leakage.

So far there is no one dead reported caused by ozone poisoning.

♦ Does the ozone generator work efficiently?

Undeniably, ozone can clean and remove odor and formaldehyde.

It is reported that ozone is a widely used bactericide. It can kill escherichia coli,

bacteria efficiently and resolve the harmful material in a short time.



Quality Control



In order to ensure the best quality, every ozone generator has been strictly tested

before delivery.

We promise the good performance and all parts completely

according to your



ABOUT US



Gold supplier--Guangzhou Netech Environmental Technology Co., Ltd ,15 years of experience in Water Treatment and Environment R&D and Engineering,

we are able to solve all your solutions in Environmental Protection and Water Treatment.



QUALITY CONTROL



Every procedure has personnel inspection. All the products must be tested and qualified before packaging.



AFTER SERVICE



We provide 12 month free maintenance. The buyer should return

the product in the original conditions to us and should bear

the shipping costs for return.

If any part is required to be replaced,the buyer should also pay for th costs of the parts to be replaced.



PROMPT DELIVERY



1. 3-7 days for portable ozone generator/ozone generator spare parts order;

2. 10-30 days for industrial/middle size ozone generator order;

3. Shipping could be express, airline or sea
