|Ozone output way||Corona Discharge|
|Warranty||One Year Warranty|
|Adjustable rate||20-100% Adjustable Ozone|

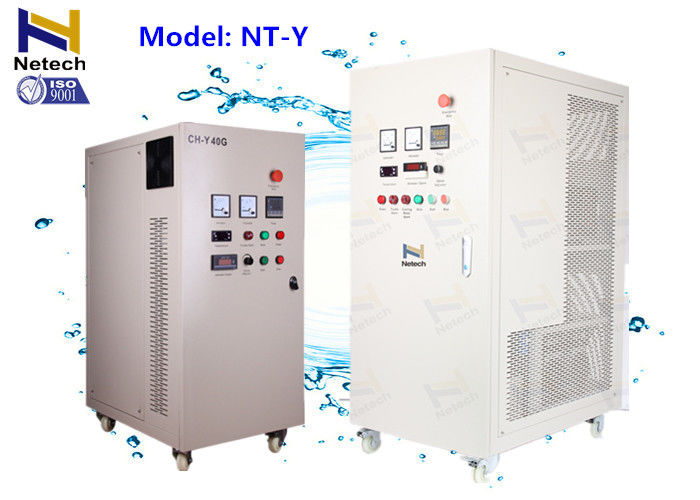

1. With built-in oxygen system, carbon steel sprayed with plastic or SS housing complete ozone generator
2. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time
3. Adjustable ozone range: 20%--100%, it can working automatic
4. Compact assembly,Movable with Wheels
5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety
Ozone output adjuster, Voltmeter, Ampmeter, Timer, Cooling water temperature indicator, Ozone Ampmeter, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm
|Oxygen flow rate||LPM||5~15||8~18||20||16-32|
|Cooling water flow||LPM||48|
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug
How to use?
1. Before use this machine, put it in a stable flat place which can hold its weight.
2. Use the power equipped with the machine;
3. The machine use for air purification, firstly attach the silicone tube into the
ozone outlet and then turn on the power;
4. Set the timer and then come out ozone, and put the tube into the room.
5. When use for room air purification, it requires nobody is present , after 30
minutes people can walk into the room.
6. If use for water treatment, the air stone should be attached into the silicone
tube and put into the water.
7. Attention, the machine should be placed higher than the water, incase that the water reflux occur.
Question and answer
♦ Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
So far there is no one dead reported caused by ozone poisoning.
♦ Does the ozone generator work efficiently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bac efficiently and resolve the harmful material in a short time
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should bear the shipping costs for return.
Shipping: we can arrange the shipping directly or work with your designated shipping agent.
Sea transportation: Multiple containers for different customized size.
