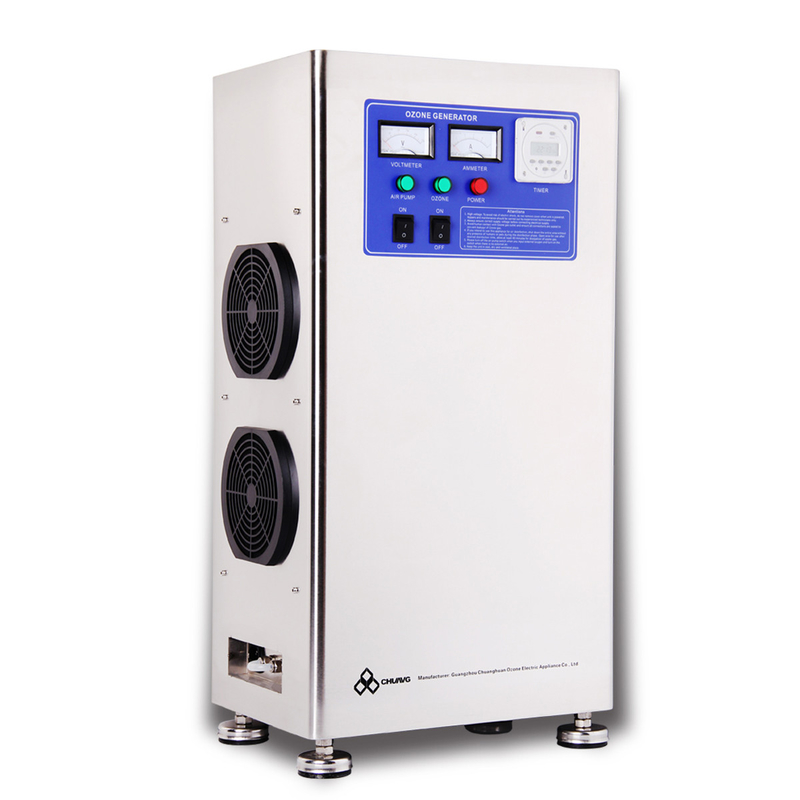

Food Ozone Generator Used In Food Processing Industry 15g 20g 30g Air Cooled
1. Quick details
| Gas source | Oxygen source or air source |
| Oxygen flow rate | 0.5-10LPM |
| Material | Ceramic tube |
| Cooling | Air cooling |
| Ozone output | 2g/3g/5g/6g/10g/15g/20g/30g |
| Timer | one or two recycle working time |
2. Ozone Advantages
- the most powerful oxidizer available
- environmentally friendly
- no chemical storage required
- three-thousand times more germicidal than chlorine
- instant pathogen destruction
- no harmful chemical residual
3. Features:
1. Builted in Domestic ed Product -Air cooling ceramic ozone generator
2. Builted in Automatic air dryer,Feed dryed air or outside oxygen source
3. ORP Measuring Range: 0~14Ph-1000~+1000mV
4. It can be Movable with wheels & Handles or Wall mounted.
5. Connect with external ozone injector for water treatment
6. Timer: One or Two recycle working time.
4.Specifications:
| Item | Unit | CH-T-N | |||||||
| 2G | 3G | 5G | 6G | 10G | 15G | 20G | 30G | ||
| Oxygen flow rate | LPM | 0.5~2 | 1~3 | 1.2~3 | 1.5~3.5 | 2.4~6 | 3.6~9 | 3~10 | 3-10 |
| Ozone concentration | Mg/L | 28~50 | 28~65 | 32~60 | 28~56 | 32~60 | 32~60 | 38.9~42 | 51~70 |
| Ozone output | G/Hr | 1.5~3.0 | 4~5.0 | 4.3~5.7 | 5.0~5.8 | 8.6~14.5 | 13~17 | 18.6~20 | 12.6~30.6 |
| Power | W | 115 | 135 | 160 | 185 | 260 | 330 | 400 | 1100 |
| Air flow rate (Suggested) | LPM | 40~60 | 50~75 | 50~90 | 36 | ||||
| Compressed air pressure | Mpa | 0.025 | 0.14 | ||||||
| Fuse of power supply | A | 3 | 5 | 5 | 5 | 10 | |||
| Size | cm | 36×26×61 | 40×30×77 | 40*28*101 | |||||
| Net Weight | kg | 11.25 | 11.30 | 11.50 | 18 | 20 | 35 | 33.5 | |
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug.
5. Ozone in the Food Industry
Because ozone is a safe, powerful cleanant, it can be used to control biological growth of unwanted organisms in products and equipment used in the food processing industries. Ozone is particularly suited to the food industry because of its ability to clean microorganisms without adding chemical by-products to the food being treated, or to the food processing water or atmosphere in which food are stored.
Ozone Applications for Food Products and Processing
- Washing fruits and vegetables
- Meat and Poultry Production and Processing
- Seafood Processing and Aquaculture
- Food Storage
- Pest Management
- Irrigation
- Air Quality
- Beverage Production
Our products are sold all over the world, you can rest assured.
