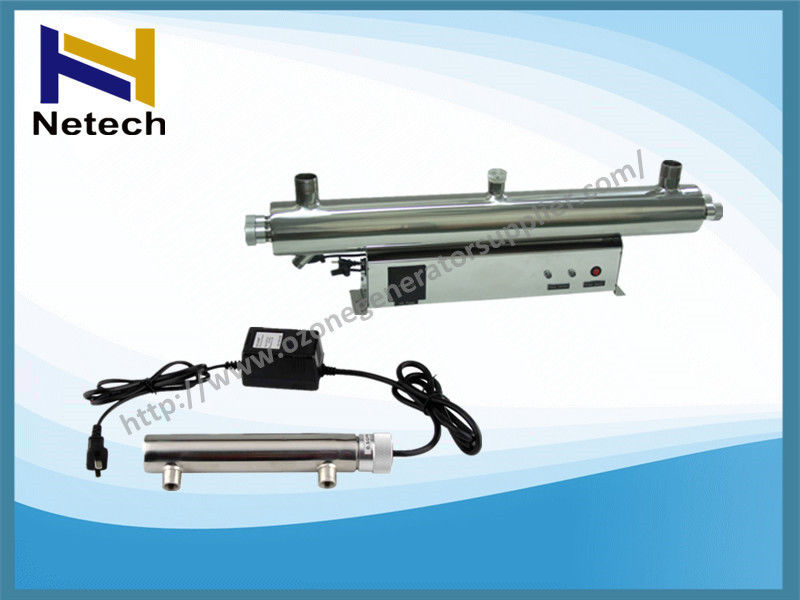

UV Drinking Water cleanr / Drinking Water Filter UV cleanr System 100T

Place of Origin China(guangzhou)
Brand Name Netech
Model Number NT-UV
Minimum Order Quantity 1 set
Price For further discussion
Packaging Details Carton
Delivery Time 3-5 working days after received your payment
Payment Terms D/P, L/C, D/A, T/T, Western Union
Supply Ability 1000 sets/month
Product Details
Lamp Cover Material 304 Or 316l Stainless Steel Sterilizing Rate 99.99%
Water Flow Rate 0.1-500 Ton/hr Standard America NSF55 Standard And CJ/T204-2000
Lamp Tube America Hanovia Lamp Tube Max Pressure 0.8MPA
High Light

ozone generator water treatment

,

ozone generator wastewater treatment

Leave a Message
Product Description

UV drinking water cleanr / Drinking Water Filter UV cleanr System 100T





Specifications:







Model

Water flow

(T/Hr)

Power

(W)

Size

(mm)

Water Input & Ouput Size

Max Pressure

(Mpa)

NT-UV005G

0.1

8

250×48×65

1/4″

0.8

NT-UV01G

0.2

10

295×60×80

1/4″

NT-UV02G

0.5

14

370×60×80

1/2″

NT-UV04G

1

17

450×73×110

1/2″

NT-UV06G

1.3

23

520×73×110

3/4″

NT-UV08G

1.8

28

650×73×110

3/4″

NT-UV12G

2.7

40

950×73×110

1″





                                                                          NT-UV3~30T

Model

Water flow

(T/Hr)

Power

(W)

Size

(mm)

Water Input & Ouput Size

Max Pressure

(Mpa)

NT-UV3T

3

40×1

950×125×250

1″

0.8

NT-UV5T

5

40×2

950×138×280

1.2″

NT-UV8T

8

40×3

950×170×310

1.5″

NT-UV12T

12

40×4

950×195×335

2″

NT-UV15T

15

40×5

950×195×335

2″

NT-UV20T

20

80×3

950×205×405

2.5″

NT-UV25T

25

80×4

950×275×465

2.5″

NT-UV30T

30

120×3

1250×275×545

3″



Features:



Water flow rate: 0.1-500 ton/hr which can meet with different water capacities.

Material: Use SS304 or SS316L material for reaction chamber, combined with full-automatic welding. All connections are smoothly without any corner;

Chamber: Internal & external polishing mirror chamber with high brightness for greatly improved UV intensity and clean effect.

Thickness: The thickening design of chamber which is strictly tested air & water pressure before shipping. It can withstand 0.8 Mpa, and fully prevents from water leakage.

Lamp: Use imported low-pressure but high-strength mercury lamp, which has 9000-13000 hrs service life(Max); assorted with high-efficiency electron ballast, it improves product service life and effect, so that the sterilizing rate up to 99.99%.



Kind note that except the UV cleanr, the ozone generator also suitable for water treatment, such as swimming pool,drinking water, wastewater,fish farm,etc.



If interest,please contact us via emails!



Quality control
 Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.


Why choosing us?



We are OEM and ODM manufactory,which has passed ISO certification.

We own our core technology, large sales teams, strong R&D team and standardized production workshop.

Have strong competitive advantages on quality and price.

Our R & D team always leads ozone technical reform and innovation.

Our markets extend to all over the world.



Distributors Offer : Welcome to be our distributor .
