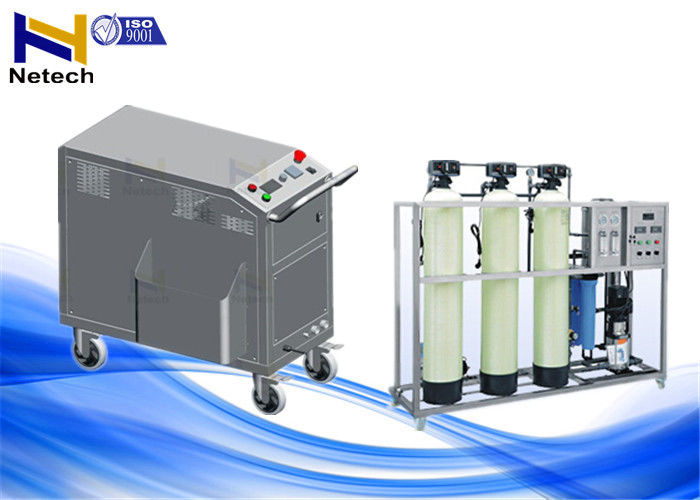

Stainless Steel Water Ozone Generator Water Purification / Air Purifier With ORP Meter
Ozone Output | 2g,3g,5g,6g,10g,15g,20g | Usage | Hotel,house,Food Processing,fish Farm,etc |
---|---|---|---|
Gas Source | Air Source | Technology | Corona Discharge |
Material | Stainless Steel | Customize | It Can Come With ORP Meter |
High Light | ozonator for drinking water,water ozone machine |
Water And Air Ozonator For Water Purification And Air Purified With ORP Meter
Netech Ozone products Catalogue.pdf
Description:
Gas source | Air source |
Oxygen flow rate | 0.5-10 LPM |
Material | Ceramic tube |
Technology | corona discharge |
Cooling | Air cooled |
Power supply | 220V,50HZ |
Ozone output | 2g/3g/5g/6g/10g/15g/20g |
Size |
360*260*610/400*300/770mm |
Applications:
1. treatment industry: clean sickroom, operating room, treatment equipment,aseptic room, etc
2. Fruits and vegetables:keep fruits and vegetables fresh and store them
3. Sea food factory: Remove smell of sea food factory and kill bacterias ,clean production water supply.
4. Slaughtering: Remove smell of slaughtering and kill bacterias,clean production water supply.
5. Poultry factory: Remove smell of poultry factory and kill bacterias ,clean water for poultry feeding.
6. Commercial use in House,hotel,Office,KTV,Super Market,Fruit shop etc.
Air Purifier:Remove formaldehyde,benzene compounds,Smoke,Odors,Molds,Bactrias,Virus to fresh air.
Water purifier:clean production Water supply.
7. Bottle Water,Domestic Water,Well Water,Pool Water cleanion & clean
Features:
1. Builted in Domestic ed Product -Air cooling ceramic ozone generator
2. Builted in Automatic air dryer,Feed dryed air or outside oxygen source
3. Connect with external ozone injector for water treatment
4. It can be Movable with wheels & Handles or Wall mounted.
5. No breakdown with easy operation and maintenance.
Specifications:
Item | Unit | NT-T-N | |||||||
2G | 3G | 5G | 6G | 10G | 15G | 20G | 30G | ||
Oxygen flow rate | LPM | 0.5~2 | 1~3 | 1.2~3 | 1.5~3.5 | 2.4~6 | 3.6~9 | 3~10 | 3-10 |
Ozone concentration | Mg/L | 28~50 | 28~65 | 32~60 | 28~56 | 32~60 | 32~60 | 38.9~42 | 51~70 |
Ozone output | G/Hr | 1.5~3.0 | 4~5.0 | 4.3~5.7 | 5.0~5.8 | 8.6~14.5 | 13~17 | 18.6~20 | 12.6~30.6 |
Power | W | 115 | 135 | 160 | 185 | 260 | 330 | 400 | 1100 |
Air flow rate (Suggested) | LPM | 40~60 | 50~75 | 50~90 | 36 | ||||
Compressed air pressure | Mpa | 0.025 | 0.14 | ||||||
Fuse of power supply | A | 3 | 5 | 5 | 5 | 10 | |||
Size | cm | 36×26×61 | 40×30×77 | 40*28*101 | |||||
Net Weight | kg | 11.25 | 11.30 | 11.50 | 18 | 20 | 35 | 33.5 |
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug.
Ozone bas several significant advantages over its chemical alternatives:
Ozone can be generated on-site.
Ozone is one of the most active, readily available oxidizing agents.
Ozone rapidly decomposes to oxygen leaving no traces.
Reactions do not produce toxic halogenated compounds.
Ozone acts more rapidly, and more completely than other common cleaning agents do.
Ozone reacts swiftly and effectively on all strains of viruses.
FAQ:
1.What’s your after sales service?
We offer one year warranty and also provide technical support even exceed the warranty period.
2. When will you ship after I pay?
Normally we can ship within 5 days for sample order, 5-10 days for small order, please confirm the actual delivery time with our sales according to your quantity .
3. How can I pay?
We accept T/T, Paypal ,and western Union, please let us know your payment method and we will send you the account information accordingly.
4. What shipping method I can choose?
A:We can ship by Sea and air for bulk order ;
B: DHL, FEDEX, UPS, TNT,EMS and some other special line express with competitive price are optional, it takes 5-10 days to get the parcel based on your area.
