Oxygen Source Ozone Generator For Industry Wastewater Treatment O2 Concentrator

Oxygen Source Ozone Generator For Industry Wastewater Treatment O2 Concentrator

    • Oxygen Source Ozone Generator For Industry Wastewater Treatment O2 Concentrator
    • Oxygen Source Ozone Generator For Industry Wastewater Treatment O2 Concentrator
    • Oxygen Source Ozone Generator For Industry Wastewater Treatment O2 Concentrator
  • Oxygen Source Ozone Generator For Industry Wastewater Treatment O2 Concentrator

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: Netech
    Model Number: NT-OX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $ 600 - $ 1200 / set
    Packaging Details: Safe double carton package with foam inside for protection
    Delivery Time: 3-5 working days after payment confirmed
    Payment Terms: L/C D/A D/P T/T Western Union Credit Card/ Paypal
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Gas Type: Oxygen Working Voltage: 110V/220V
    Guarantee: One Year Low-pressure: Oxygen Production Working Pressure Less Than 3 KG
    Output Type: Stable And Continuously Oxygen Output: 3LPM,5LPM,7LPM,10LPM,15LPM
    High Light:

    molecular sieve unit

    ,

    oxygen molecular sieve

    Oxygen Source Ozone Generator For Industry Waste Water Treatment O2 Concentrator

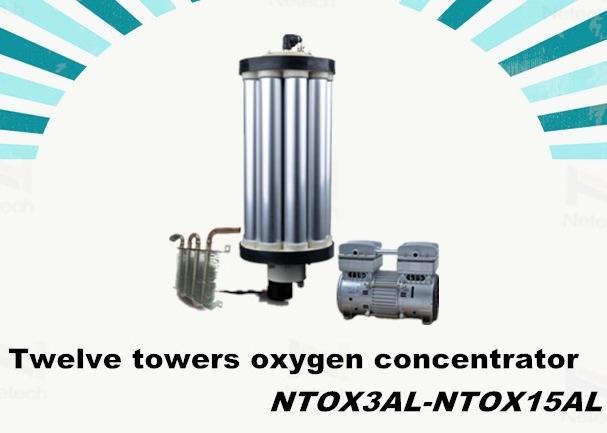

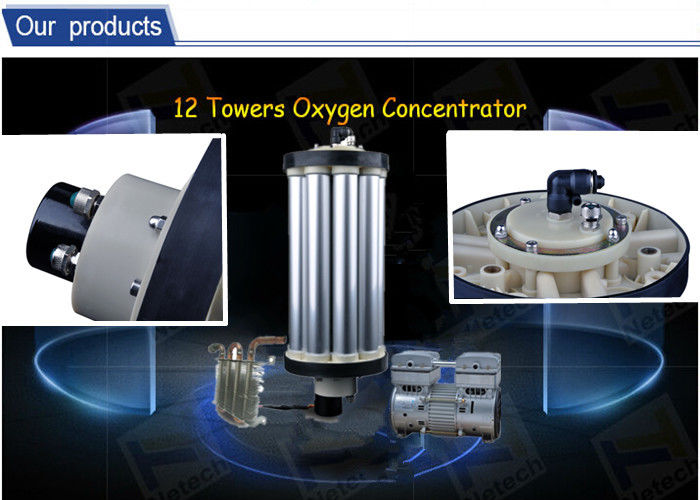

    Twelve Towers Oxygen Concentrator


    Twelve towers oxygen concentrator is unique design, advanced technology, excellent service support.
    1.Rational construction
    Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
    2.Easy to control
    Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.
    3.The oxygen output is stable and continuously
    4.Low-pressure oxygen production working pressure less than 3 KG.





    Specifications:

    Item Unit NTOX3AL NTOX5AL NTOX7AL NTOX10AL NTOX15AL
    Oxygen output LPM 3 5 7.5 10 15
    Oxygen concentration % 90%±3% 90%±3% 90%±3% 90%±3% 90%±3%
    Air flow rate LPM 36-45 60-75 90-115 90-115 180-200
    Pressure(inlet) Mpa 0.14-0.18 0.14-0.2 0.15-0.21 0.18-0.25 0.35
    Pressure(outlet) Mpa 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08
    Temperature indoor temperature
    Relative humidity % ≤ 70%±10%
    Noise Db ≤60 ≤60 ≤60 ≤60 ≤60
    Dimension mm Ф200×310 Ф200×430 Ф200×500 Ф200×560 Ф200×880
    Net weight kg 15.70 18.30 19.30 30.60 32.5

    NOTE:

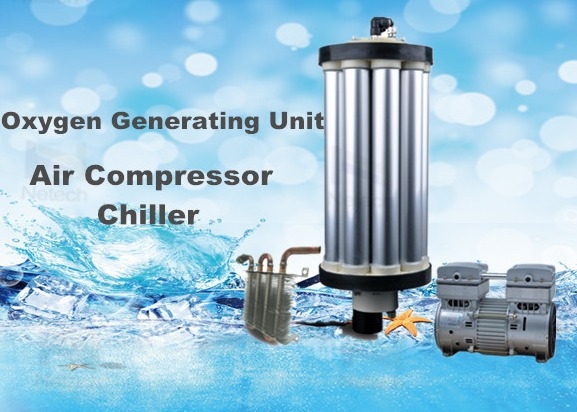

    1. One set including oxygen generating unit, air compressor, and chiller. (It also can be sold separately)
    2. NTOX15AL-2 comes with 2 units air compressors,2 chiller.
     Oxygen Source Ozone Generator For Industry Wastewater Treatment O2 Concentrator 0

    Related Products: Two Towers Oxygen Concentrator



    Descriptions:

    1. Simple structure, easy to operate, and stable oxygen output.

    2. Material: molecular sieve; each unit can work independently, and oxygen output can reach to 3-10 LPM or higher.

    3. With chiller for cooling air, no need additional refrigerant dryer for reducing cost.

    4. Oxygen purity can up to 90+5%. Two oxygen cylinders exchange working, auto drain water, nitrogen and other impurities output.

    5. Parts with shipping: air compressor, chiller.

    6. Oxygen outlet pressure: 0.06-0.08Mpa.



    Specification:

    Item Unit NT03L NT05L NT08L NT10L
    Oxygen output LPM 3 5 8 10
    Oxygen concentration % 90%±3%
    Power W 280 450 / 650
    Pressure(inlet) Mpa 0.18-0.2 0.2 0.2 0.2
    Pressure(outlet) Mpa 0.06-0.08
    Temperature indoor temperature
    Relative humidity % ≤85%
    Noise Db ≤ 55 ≤60 ≤70 ≤70
    Dimension mm 550×160×80 550×180×80 610×290×120 610×310×120
    Weight kg 9.25 16.70 18.50 19.10

    Oxygen Source Ozone Generator For Industry Wastewater Treatment O2 Concentrator 1
