1T Durable Industrial Mixing Pump Micro Nano Bubble Ozone Mixing Pump 380V 220V

1T Durable Industrial Mixing Pump Micro Nano Bubble Ozone Mixing Pump 380V 220V

    • 1T Durable Industrial Mixing Pump Micro Nano Bubble Ozone Mixing Pump 380V 220V
    • 1T Durable Industrial Mixing Pump Micro Nano Bubble Ozone Mixing Pump 380V 220V
    • 1T Durable Industrial Mixing Pump Micro Nano Bubble Ozone Mixing Pump 380V 220V
  • 1T Durable Industrial Mixing Pump Micro Nano Bubble Ozone Mixing Pump 380V 220V

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: Netech
    Model Number: NT-P

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: It can be discussed
    Packaging Details: Safe double carton package with foam inside for protection
    Delivery Time: 3-5 working days after received your payment
    Payment Terms: L/C D/A D/P T/T Western Union Credit Card/ Paypal
    Supply Ability: 1400 sets per month
    Contact Now
    Detailed Product Description
    Mixer Type: Static Mixers Flow Rate: 1T/H 2T/H 6T/H 12T/H,50T/H
    Mixing Efficiency: 80%-100% Mixing Type: Negative Pressure
    Additional Capabilities: Dissolve Gas Into Water MOQ: One Set
    Voltage: 380V/50Hz
    High Light:

    ozone accessories

    ,

    ceramic ozone tube

    1T Durable Industrial Mixing Pump Micro Nano Bubble Ozone Mixing Pump 380V 220V​







    Descriptions:

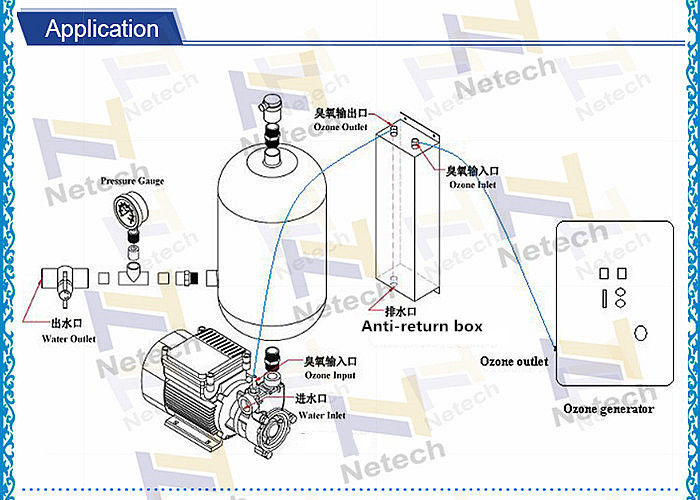

    1. Mixing system is simple and it intakes Ozone gas to the pump and mix Ozone with liquid in the pump, while conventional system needs additional equipment like "ejector" and "static mixer" to make ozone water.



    2. Ozone dissolution ratio is more than 80~100% in case of out mixing system which is extremely high compared with conventional system. This dissolution ratio varies depending on water temperature, gas concentration, PH concentration etc.



    3. NT Mixng pump is most suitable to pressurize the air and liquid, and let the air dissolved into the liquid, compared with any other type of pumps and apparatus like atatic mixer.



    4. NT system does not use compressor, pressure dissolve tank, ejector and static mixer, which makes our system small in size and competitive in price. In case of conventional centrifugal pump method, the pump sucks the liquid and air, and mix them and transport them.



    Specifications:

    Flow rate Model Parameter Max.lift head(m)/
    Flow rate(L/min;m³/h)
    Flow rate of 40 meters head
    (L/min;m³/h)
    Highest temperature(℃)
    1T 20WSS04 380/50HZ
    three phase
    0.37KW

    45m
    12L/min
    0.72m³/h
    14L/min
    0.84m³/h
    120
    2T 25WSS07 380/50HZ
    three phase
    0.75KW

    50m
    17L/min
    1.02m³/h
    25L/min
    1.5m³/h
    120
    3-4T 32WSS15 380/50HZ
    three phase
    1.5KW

    60m
    35L/min
    2.1m³/h
    52L/min
    3.12m³/h
    120
    5-6T 40WSS22 380/50HZ
    three phase
    2.2KW

    50m
    82L/min
    4.92m³/h
    102L/min
    6.12m³/h
    120
    10-15T 50WSS75 380/50HZ
    three phase
    7.5KW

    80m
    50L/min
    3.0m³/h
    150L/min
    9m³/h
    180
    25-30T 65WSS110 380/50HZ
    three phase
    11KW

    60m
    300L/min
    18m³/h
    500L/min
    30m³/h
    180
    45-50T 80WSS220 380/50HZ
    three phase
    22KW

    60m
    650L/min
    39m³/h
    850L/min
    51m³/h
    180



    NOTES:The micro bullble pump can be customize according to our customers requirement.
