Ozone Water Treatment Systems Ozone Generator Parts Venturi Air Injector

  • Ozone Water Treatment Systems Ozone Generator Parts Venturi Air Injector
  • Ozone Water Treatment Systems Ozone Generator Parts Venturi Air Injector
  • Ozone Water Treatment Systems Ozone Generator Parts Venturi Air Injector
  • Ozone Water Treatment Systems Ozone Generator Parts Venturi Air Injector
Place of Origin Guangdong China
Brand Name Netech
Model Number A12057 - A58295
Minimum Order Quantity 1
Packaging Details with froth in cartons or wooden case
Delivery Time 3 to 5 days
Payment Terms paypal,western union,T/T,credit card
Supply Ability 1000 per weeks
Product Details
Material PVDF Water Flow Rate 0.05-50 M3/hr
Pipe Size 1/4-2 Inch Gas Inlet 1/8-1/2 Inch
Type Venturi Tube/ozone Venturi Injector Application Ozone Gas And Water Mixing For Ozone Water Treatment
High Light

ceramic ozone tube

,

ozone generator tube
Leave a Message
Product Description

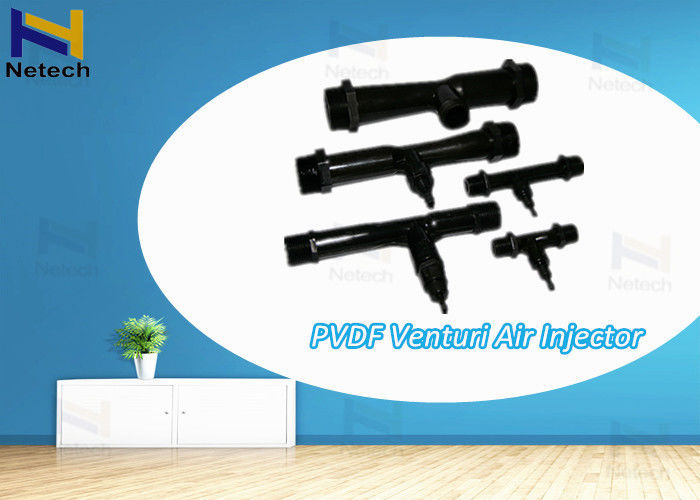

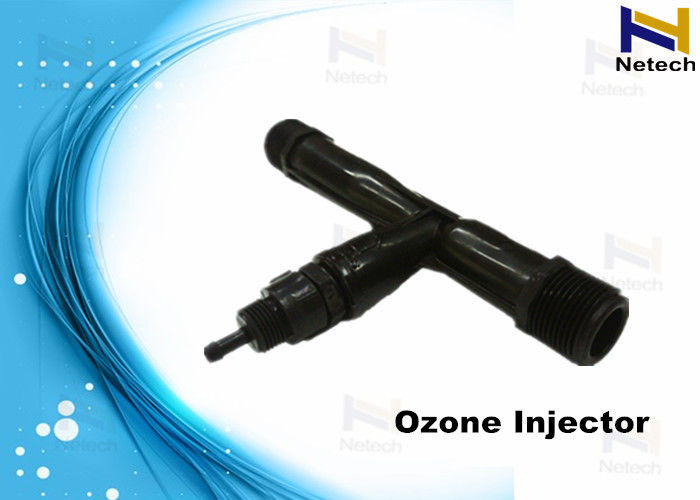

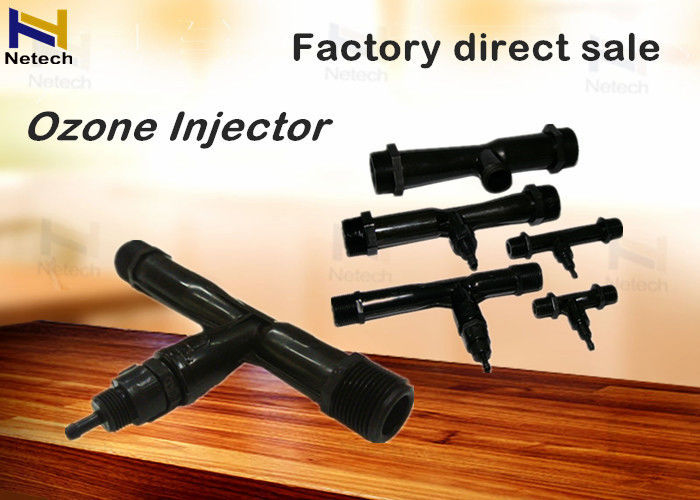

Ozone Water Treatment Systems Ozone Generator Parts Venturi Air Injector





Function:



Venturi is designed to be used with ozone generator for water treatment. It is made of anti-ozone material, PVDF. Connected to your existing filtration system it allows an ozone injection point, where the vacuum effectively sucks the ozone/oxygen gases into the water flow.





Descriptions:



Ozone mixing water venturi injector nozzle/tube

PVDF(fluoroplastic)





Applications:


Usage: Gas and water mixing

Fertilizer and chemical injection through drip and sprinkler irrigation systems.
A venturi is a device which creates a vacuum when fluid flows through it. The fluid which creates the vacuum is known as the motive fluid. The motive fluid for irrigation injectors is the irrigation water itself. Vacuum created by the venturi sucks fertilizer or chemical into motive water.





Specifications:



Item Unit Model
A12057 A25100 A25152 A32235 A48275 A58295
Pipe Size Inch 1/4 1/2 3/4 1 1+1/2 2
Gas Inlet Inch 1/8 1/4 1/4 3/8 1/2 1/2
Water Flow m3/hr 0.05-0.25 0.10-1.0 1.0-3.0 3.0-10.0 10.0-25.0 25.0-50.0
Length mm 60 100 152 230 275 295



Ozone Water Treatment Systems Ozone Generator Parts Venturi Air Injector 0

Ozone Water Treatment Systems Ozone Generator Parts Venturi Air Injector 1
