PSA Industrial 93% Oxygen Concentraor Parts 5L 10L 15L For O3 Machine Water

PSA Industrial 93% Oxygen Concentraor Parts 5L 10L 15L For O3 Machine Water

  • High Light

    oxygen concentrator repair

    ,

    molecular sieve unit

  • Gas Type
    Oxygen
  • Working Voltage
    110V/220V
  • Guarantee
    One Year
  • Low-pressure
    Oxygen Production Working Pressure Less Than 3 KG
  • Output Type
    Stable And Continuously
  • Oxygen Output
    3LPM,5LPM,7LPM,10LPM,15LPM
  • Place of Origin
    Guangdong China
  • Brand Name
    Netech
  • Model Number
    NT-OX
  • Minimum Order Quantity
    1 set
  • Price
    $ 600 - $ 1200 / set
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    3-5 working days after payment confirmed
  • Payment Terms
    L/C D/A D/P T/T Western Union Credit Card/ Paypal
  • Supply Ability
    1000 sets per month

PSA Industrial 93% Oxygen Concentraor Parts 5L 10L 15L For O3 Machine Water

PSA Industrial 93% Oxygen Concentraor Parts 5L 10L 15L For O3 Machine Water

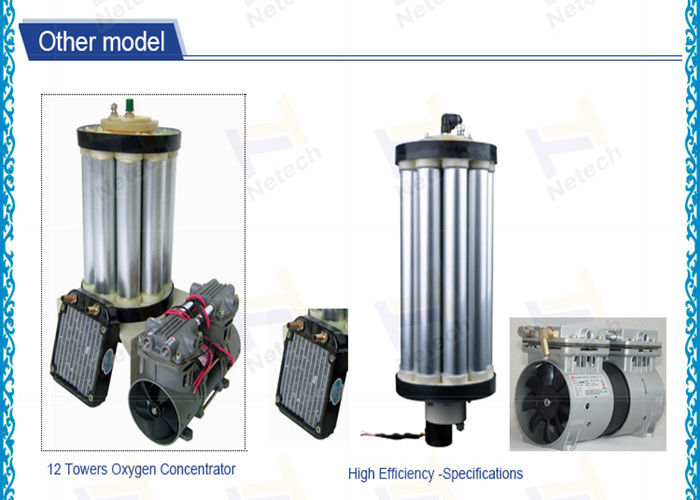

Twelve Towers Oxygen Concentrator


Twelve towers oxygen concentrator is unique design, advanced technology, excellent service support.
1.Rational construction
Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
2.Easy to control
Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.
3.Low-pressure oxygen production working pressure less than 3 KG.





Specifications:

Item Unit NTOX3AL NTOX5AL NTOX7AL NTOX10AL NTOX15AL
Oxygen output LPM 3 5 7.5 10 15
Oxygen concentration % 90%±3% 90%±3% 90%±3% 90%±3% 90%±3%
Air flow rate LPM 36-45 60-75 90-115 90-115 180-200
Pressure(inlet) Mpa 0.14-0.18 0.14-0.2 0.15-0.21 0.18-0.25 0.35
Pressure(outlet) Mpa 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08
Temperature indoor temperature
Relative humidity % ≤ 70%±10%
Noise Db ≤60 ≤60 ≤60 ≤60 ≤60
Dimension mm Ф200×310 Ф200×430 Ф200×500 Ф200×560 Ф200×880
Net weight kg 15.70 18.30 19.30 30.60 32.5

NOTE:

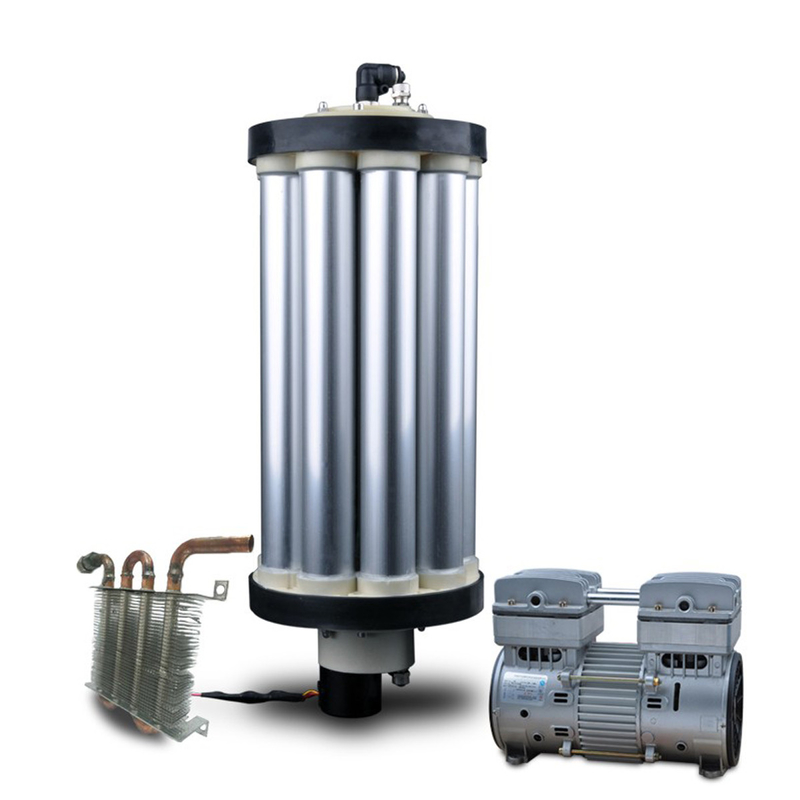

1. One set including oxygen generating unit, air compressor, and chiller. (It also can be sold separately)
2. NTOX15AL-2 comes with 2 units air compressors,2 chiller.
 PSA Industrial 93% Oxygen Concentraor Parts 5L 10L 15L For O3 Machine Water 0

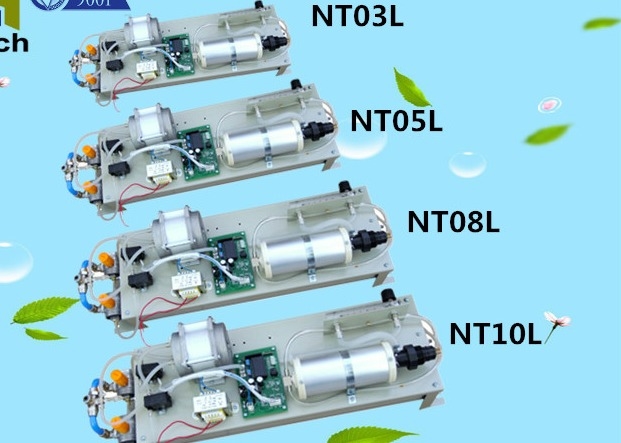

Related Products: Two Towers Oxygen Concentrator



Descriptions:

1. Simple structure, easy to operate, and stable oxygen output.

2. Material: molecular sieve; each unit can work independently, and oxygen output can reach to 3-10 LPM or higher.

3. With chiller for cooling air, no need additional refrigerant dryer for reducing cost.

4. Oxygen purity can up to 90+5%. Two oxygen cylinders exchange working, auto drain water, nitrogen and other impurities output.

5. Parts with shipping: air compressor, chiller.

6. Oxygen outlet pressure: 0.06-0.08Mpa.



Specification:

Item Unit NT03L NT05L NT08L NT10L
Oxygen output LPM 3 5 8 10
Oxygen concentration % 90%±3%
Power W 280 450 / 650
Pressure(inlet) Mpa 0.18-0.2 0.2 0.2 0.2
Pressure(outlet) Mpa 0.06-0.08
Temperature indoor temperature
Relative humidity % ≤85%
Noise Db ≤ 55 ≤60 ≤70 ≤70
Dimension mm 550×160×80 550×180×80 610×290×120 610×310×120
Weight kg 9.25 16.70 18.50 19.10

PSA Industrial 93% Oxygen Concentraor Parts 5L 10L 15L For O3 Machine Water 1

ABOUT US

*We are OEM and ODM manufactory,which has passed ISO certification.

*We own our core technology, large sales teams, strong R&D team and standardized production workshop.

*Have strong competitive advantages on quality and price.

*Our R & D team always leads ozone technical reform and innovation.

*Our markets extend to all over the world.
