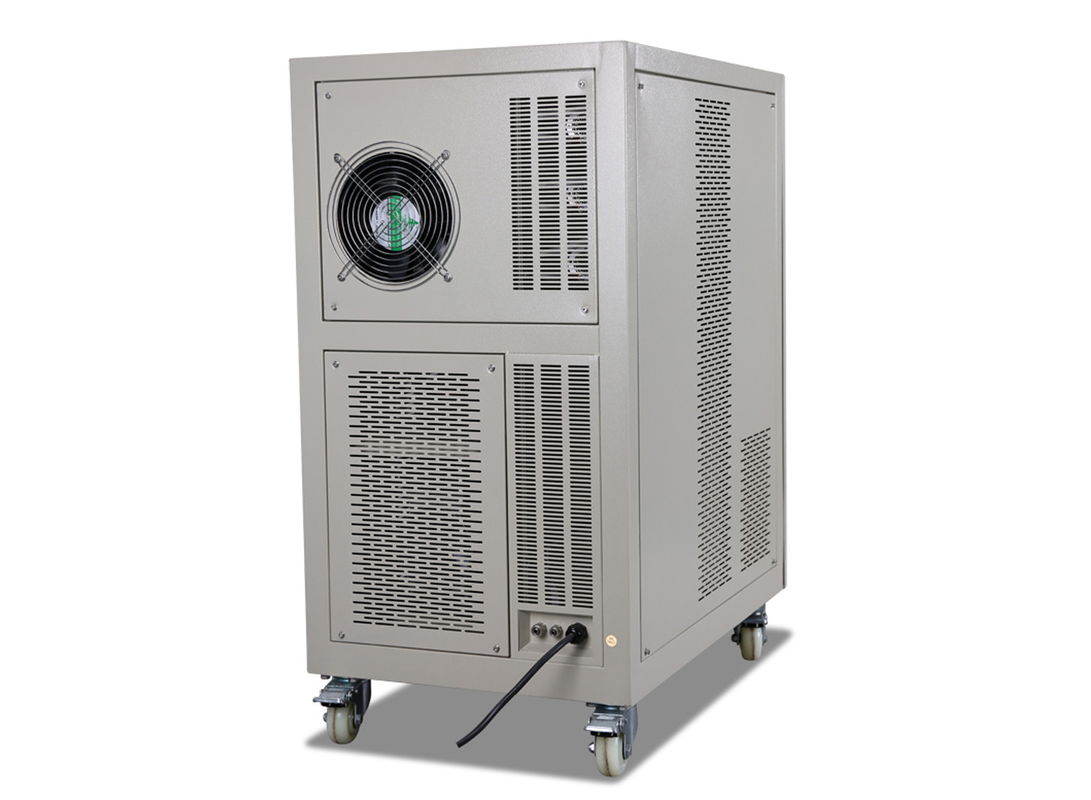

Oxygen Feed Swimming Pool Ozone Generator High Efficiency 1 Year Warranty

Oxygen Feed Swimming Pool Ozone Generator High Efficiency 1 Year Warranty

  • High Light

    ozone generator swimming pool

    ,

    ozone generator water treatment swimming pools

  • Materia
    Carbon Steel
  • Ozone Tube
    Air Cooling Ozone Ceramic Tube
  • Ozone Output
    5g 10g 15g 20g 30g
  • Ozone Adjuster
    20% To 100%
  • Usage
    Water Treatment
  • Voltage
    220 110v
  • Oxygen Flow Rate
    3LPM To10LPM
  • Warranty
    1 Year
  • Place of Origin
    CHINA
  • Brand Name
    ozocenter
  • Model Number
    CH-YFC
  • Minimum Order Quantity
    1 piece
  • Price
    500 to 3000USD
  • Packaging Details
    Pack with wooden case
  • Payment Terms
    D/A, L/C, T/T, D/P, Western Union, MoneyGram,PAYPAL
  • Supply Ability
    1000 piece per month

Oxygen Feed Swimming Pool Ozone Generator High Efficiency 1 Year Warranty

30g/hr oxygen feed very high efficiency ozone generator for swimming pool





Detailed Product Description
Gas Flow Rate: 10-17 Ozone Output: 5g 10g 15g 20g 30g
Power: 480-1230W Source: Internal Oxygen System
Voltage: 220V/50HZ Oxygen Flow Rate: 3-10LPM
Power Source:: Electrical




5g/h - 30g/h Oxygen Feed Inside Swimming Pool Ozone Generator / Water Purifier


1. Quick details

Model Number: NT-YFC

Ozone output way: air cooling

Warranty: one year warranty
Adjustable ozone rate: 20-100% adjustable ozone


Control panel:



Voltmeter, Ammeter, Switch, Timer, Working light, Power light etc.





Timer: One or Two recycle working time


Applications:


1. treatment industry: clean sick room, operating room, treatment equipment, aseptic room, etc
2. Fruits and vegetables: keep fruits and vegetables fresh and store them
3. Sea food factory: Remove smell of sea food factory and kill bacteria, clean production water supply.
4. Slaughtering: Remove smell of slaughtering and kill bacteria, clean production water supply.
5. Poultry factory: Remove smell of poultry factory and kill bacteria, clean water for poultry feeding.
6. Commercial use in House, hotel, Office, KTV, Super Market, Fruit shop etc.


Features:

1. Carbon steel sprayed with plastic housing;
2. Built-in PSA high purity twelve tower oxygen sieve;
3. Built-in of product - Air cooling Ceramic ozone tube with high frequency electric board, high ozone concentration and stable ozone capacity, long life time;
4. Built-in Oil-free air compressor;
5. Built-in Air dryer and filters. To supply cool, dry, clean air source for air compressor and PSA oxygen concentrator;
6. Manual control, easy operation and maintenance.




Features:
1. Built in Domestic ed Product -Air cooling ceramic ozone generator
2. Built in Automatic air dryer, Feed dry air or outside oxygen source
3. Connect with external ozone injector for water treatment
4. It can be Movable with wheels & Handles or Wall mounted.
5. No breakdown with easy operation and maintenance.


Specifications

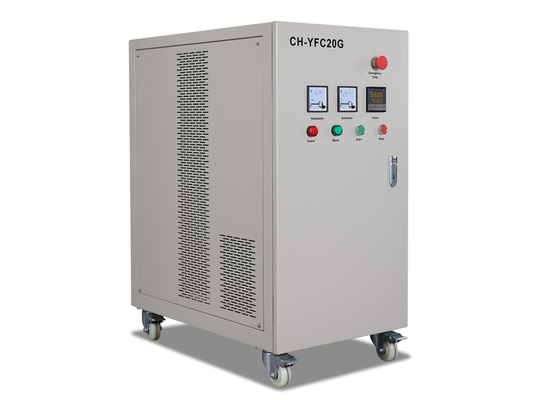

Item Unit CH-YFC5G CH-YFC10G CH-YFC15G CH-YFC20G CH-YFC30G
Oxygen flow rate LPM 3 3.5 5 8 10
Ozone concentration Mg/L 48.5~52.3 48.5~52.3 49.5~51.2 38.9~41.7 53.2~56.1
Ozone output G/Hr 5 10~11 14.8~15.4 18.6~20 32~34
Power KW ≤0.48 ≤0.81 ≤0.924 ≤1.00 ≤1.23
Current A 2.2 3.6 4.2 4.5~4.7 5.6±5%
Voltage V 220V/50HZ
NW KG 64 86 89 92 97
Size cm 45x50x84 50×66×95 45*93*118



Question and answer

♦ Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one dead reported caused by ozone poisoning.


Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.


After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
