Fashion Water Treatment Industrial Ozone Generator For Laundry Room Odor Removal
Ozone Output | 2-20g/hr | Gas Source | Air Source |
---|---|---|---|
Material | Stainless Steel | Compressed Air Pressure | 0.025Mpa |
MOQ | 1 Set | Timer | One Or Two Recycle Working Time |
High Light | ozone generator industrial,water treatment industrial ozone generator,6g odor removal ozone generator |

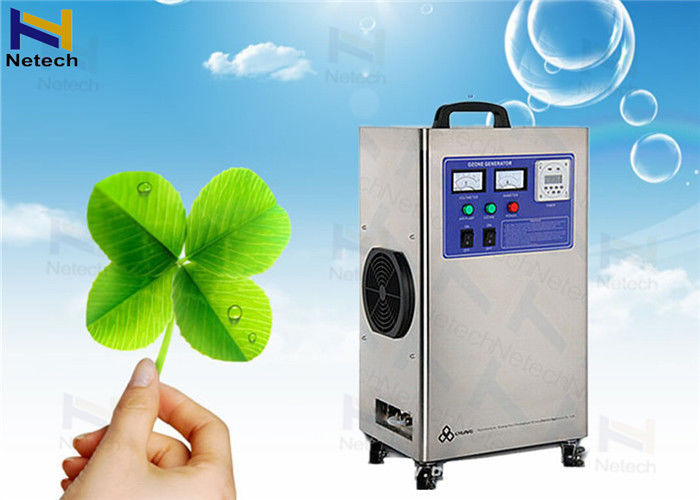

Industrial Ozone clean Machine For Laundry Room For Odor Removal
1. Applications
treatment industry: clean sick room, operating room, treatment equipment, aseptic room, etc
Fruits and vegetables: keep fruits and vegetables fresh and store them
Slaughtering: Remove smell of slaughtering and kill bacteria, clean production water supply.
Poultry factory: Remove smell of poultry factory and kill bacteria,clean water for poultry feeding.
Commercial use in House, hotel, Office, KTV, Super Market, Fruit shop etc.
Air Purifier: Remove formaldehyde, benzene compounds, Smoke, Odors, Molds, Virus to fresh air.
Water purifier: clean production Water supply.
Bottle Water, Domestic Water, Well Water, Pool Water cleanion & clean
2. Features
Built in Domestic ed Product -Air cooling ceramic ozone generator
Built in Automatic air dryer, Feed dry air or outside oxygen source
Connect with external ozone injector for water treatment
It can be Movable with wheels & Handles or Wall mounted.
No breakdown with easy operation and maintenance.
3.Specification
Item |
Unit | NT-T-N | ||||||
2G | 3G | 5G | 6G | 10G | 15G | 20G | ||
Oxygen flow rate | LPM | 0.5~2 | 1~3 | 1.2~3 | 1.5~3.5 | 2.4~6 | 3.6~9 | 3~10 |
Ozone concentration | Mg/L | 28~50 | 28~65 | 32~60 | 28~56 | 32~60 | 32~60 | 38.9~42 |
Ozone output | G/Hr | 1.5~3.0 | 4~5.0 | 4.3~5.7 | 5.0~5.8 | 8.6~14.5 | 13~17 | 18.6~20 |
Power | W | 115 | 135 | 160 | 185 | 260 | 330 | 400 |
Air flow rate (Suggested) | LPM | 40~60 | 50~75 | 50~90 | ||||
Compressed air pressure | Mpa | 0.025 | ||||||
Fuse of power supply | A | 3 | 5 | 5 | 5 | |||
Size | cm | 36×26×61 | 40×30×77 | |||||
Net Weight | kg | 11.25 | 11.30 | 11.50 | 18 | 20 | 35 |
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug.
4. Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
