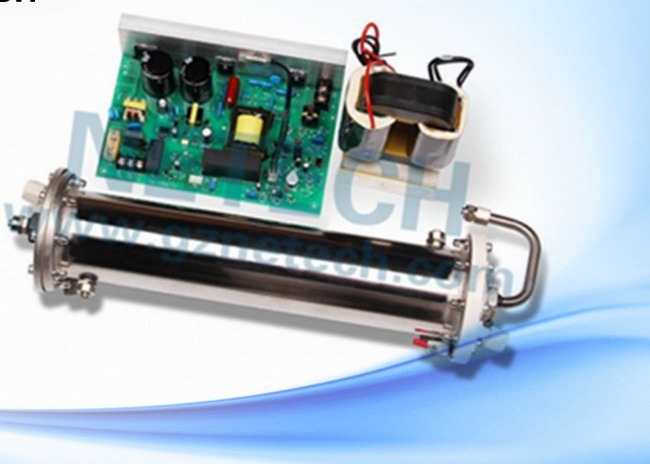

40g/Hr Oxygen Source Water Cooling Ozone Generator Tube For Waste Water

40g/Hr Oxygen Source Water Cooling Ozone Generator Tube For Waste Water

  • High Light

    water treatment ozone generator

    ,

    ozone generator water treatment

  • Cooling Way
    Water Cooling
  • Ozone Output
    18g/hr To 80g/hr
  • Technology
    Corona Discharge
  • Usage
    For Waste Water Treatment
  • Dimension
    210*146*62mm
  • Weight
    8kg
  • Materia
    Ozone Enamel Tube
  • Place of Origin
    China
  • Brand Name
    Netech
  • Model Number
    CH-PC
  • Minimum Order Quantity
    1
  • Price
    250USD to 800USD
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    3 to 5 days
  • Payment Terms
    paypal,western union,T/T,credit card
  • Supply Ability
    1000 per weeks

40g/Hr Oxygen Source Water Cooling Ozone Generator Tube For Waste Water

40g/Hr Oxygen Source water cooling ozone generator tube for waste water




Quick Detail

ozone generator parts

1. concentration up to 95%

2. 20%-100% adjustable range

3. water cooling ozone enamel tube

4. high efficiency ozone output,



Description

MOQ 1 sets

ozone produced medium enamel

ozone tube weight 6kg

adjustable range 20%-100%

ozone produced method corona discharge

voltage 220V/ 50Hz or 110V/60Hz

cooling way internal & external water cooling

warranty repair or change new parts during 12 month



 Electrodes:

Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless steel external electrode, it produces high concentration ozone output. It uses insulation materials for connections, for preventing creepage.



Cooling way

Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.



Adjustable ozone output: 20-100%.

Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.

CH-PC 18-80G/Hr

Item Unit CH-PC18G CH-PC30G CH-PC40G CH-PC60G CH-PC80G
Ambient temperature 23 23 23.9 23.9 24
Ambient humidity % 38 38 37
Oxygen flow rate LPM 1~4 2~8 3~10 5~17 8~20
Ozone concentration Mg/L 112~78 123~72 123~70 120-72 118-74
Ozone output G/Hr 6.7-18.7 14.8~34.6 22.1-42 36-73 56-88
Power Kw ≤0.22 ≤0.3 ≤0.4 ≤0.6 ≤0.8
Cooling method Water cooling for internal & external electrodes
Cooling water flow rate LPM ≥2
Cooling water temperature ambient temperature ± 8℃
Diameter of gas inlet/outlet mm 1.Air inlet & ozone outlet: EDφ8mm
Diameter of water inlet/outlet   EDφ10mm
Adjustable range % 20-100
Power supply V/Hz 110/220V 60/50HZ
Fuse A 3 5 10
Ozone tube dimension mm 285*160*125 340*160*125 460*160*125 600*160*125 705*160*125
Power supply dimension mm 212*90*95 189*146*95 210*146*62
Ozone tube weight Kg 2.5 3 3.6 4.9 5.45
Power supply weight Kg 1 2.4





Quality control



Every procedure has personnel inspection.

All the products must be tested and qualified before packaging.





After sales service



We provide 12 month free maintenance.

The buyer should return the product in the original conditions to us and should

bear the shipping costs for return.



Question and answer
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one death reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficently and resolve the harmful material in a short time.
