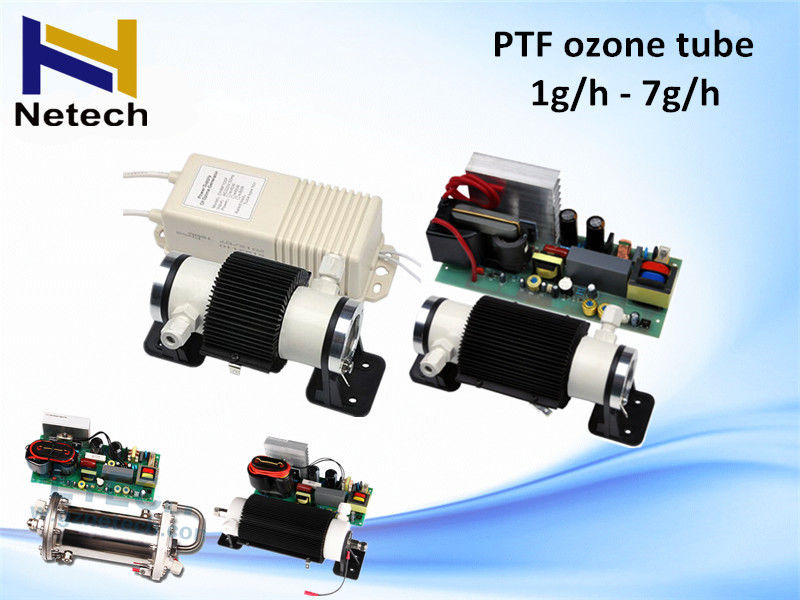

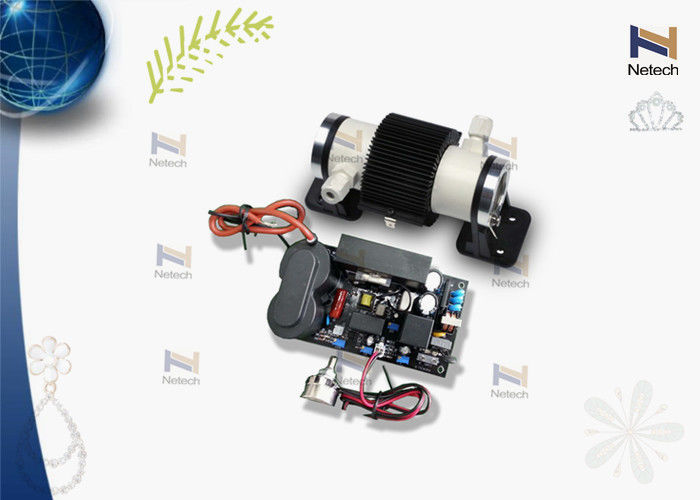

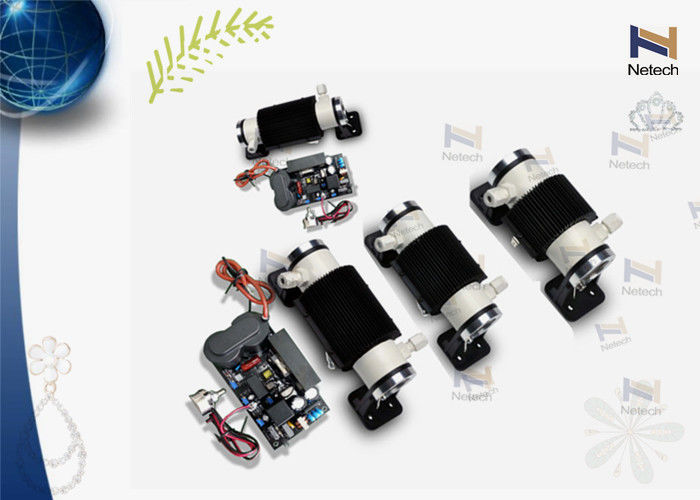

Air Cooling Ceramic Ozone Generator Tube 3g/hr 5g/hr 6g/hr 7g/hr Adjustable Ozone tube / Ceramic Ozone tube

Air Cooling Ceramic Ozone Generator Tube 3g/hr 5g/hr 6g/hr 7g/hr Adjustable Ozone tube / Ceramic Ozone tube

    • Air Cooling Ceramic Ozone Generator Tube 3g/hr 5g/hr 6g/hr 7g/hr Adjustable Ozone tube / Ceramic Ozone tube
    • Air Cooling Ceramic Ozone Generator Tube 3g/hr 5g/hr 6g/hr 7g/hr Adjustable Ozone tube / Ceramic Ozone tube
    • Air Cooling Ceramic Ozone Generator Tube 3g/hr 5g/hr 6g/hr 7g/hr Adjustable Ozone tube / Ceramic Ozone tube
    • Air Cooling Ceramic Ozone Generator Tube 3g/hr 5g/hr 6g/hr 7g/hr Adjustable Ozone tube / Ceramic Ozone tube
    • Air Cooling Ceramic Ozone Generator Tube 3g/hr 5g/hr 6g/hr 7g/hr Adjustable Ozone tube / Ceramic Ozone tube
    • Air Cooling Ceramic Ozone Generator Tube 3g/hr 5g/hr 6g/hr 7g/hr Adjustable Ozone tube / Ceramic Ozone tube
  • Air Cooling Ceramic Ozone Generator Tube 3g/hr 5g/hr 6g/hr 7g/hr Adjustable Ozone tube / Ceramic Ozone tube

    Product Details:

    Place of Origin: China(Guangzhou)
    Brand Name: Netech
    Model Number: NT-PTF-3g 5g 6g 7g

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 20-70/set
    Packaging Details: Cartons
    Payment Terms: D/P, L/C, D/A, T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 300 sets/month
    Contact Now
    Detailed Product Description
    Application: For Ozone Generator Voltage: 12V 24V 110V 220V
    Output: 3g 5g 6g 7g Cooling Way: Air Cooling
    Type: Ozone Ceramic Tube Impetus: Electricity

    Adjustable 3g/hr 5g/hr 6g/hr 7g/hr Ozone Generator Parts Air Cooling Ceramic Tube



    1.Extremely low rate of ozone decay & high ozone concentration.

    2.Domestic patent product-got domestic patent in 2008.

    3.Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.

    4.Low working voltage

    5.Small in size.

    6.Easy to maintain and install



    Material:


    Imported material of high pure ceramic, SS 316L of internal electrode, teflon connections which are best anti-oxidation material for ensuring several years running.



    Ozone tube for ozone generator cold storages:


    Even in controlled temperatures like that of cold storages, bacteria and organisms can spread resulting from bacteria already present in stored products like fruits and vegetables. The ripening process, if not checked regularly, can also contaminate other produce and accelerate the process.



    Netech Ozone:


    The presence of Netech Ozone in the air of a cold storage room can significantly slow down the propagation of organisms on the produce. What it does is it destroys mould and bacteria in the air as well as those on the surface of produce.


    Specification:

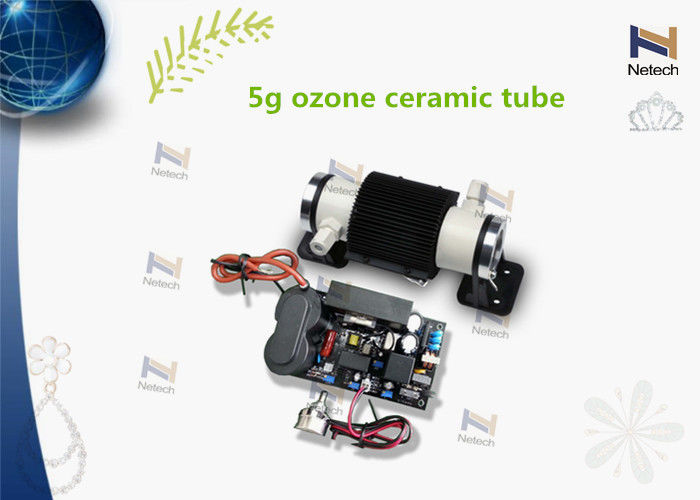

    Item Unit CH-PTF
    3GA-1 (12V,24V) 3GA-1 (220V) 3GA-1 (110V) 5GA-1 (12V,24V) 5GA-1 (220V) 5GA-1 (110V)
    Ambient temperature 21 21
    Ambient humidity % 40 40
    Power W(±10%) 50 55
    Working frequency KHz (±10%) 15.9 16
    Working voltage KV(±10%) 2.8 3
    Oxygen feed flow rate LPM 0.5-1 0.5-2.5
    Ozone concentration Mg/L 70-49 72-34
    Ozone output G/Hr 2.1-2.9 2.2-5.1
    Ozone output adjustable range % 20~100 20~100
    Line power supply V/Hz 12V 24V 110/60 220/50
    Cooling way / Air cooling
    Cooling fan / 150
    Diameter of cooling fan mm 120 120
    Diameter of gas inlet/outlet mm EDФ6
    Power supply dimensions mm 158*75*68 158*75*68
    ozone tube dimensions mm 165*95*93 185*95*93
    Ozone tube weight Kg 0.55 0.66
    Power supply weight Kg 0.6 0.6

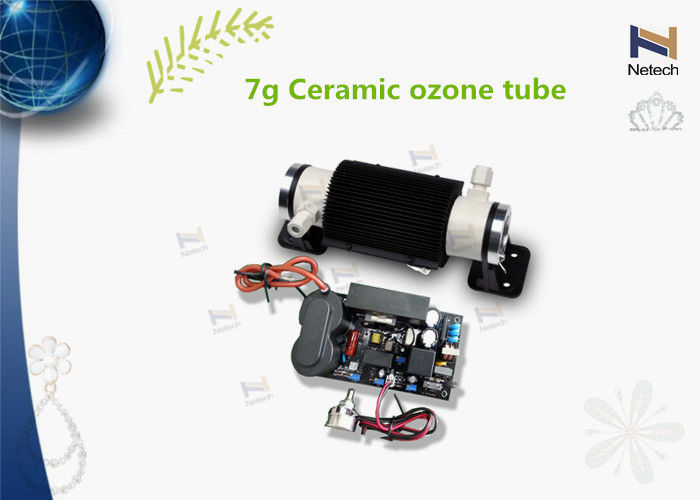

       CH-PTF6GA-1 ~7GA-1:


    Item Unit CH-PTF
    6GA-1 (12V,24V) 6GA-1 (220V) 6GA-1 (110V) 7GA-1 (12V,24V) 7GA-1 (220V) 7GA-1 (110V)
    Ambient temperature 26 26
    Ambient humidity % 49 49
    Power W(±10%) 80 90
    Working frequency KHz (±10%) 22.1 17.8
    Working voltage KV(±10%) 2.7 2.6
    Oxygen feed flow rate LPM 1~3 1~3
    Ozone concentration Mg/L 63-34 71-39
    Ozone output G/Hr 3.7-6.1 4.2-7
    Ozone output adjustable range % 20~100 20~100
    Line power supply V/Hz M:AC220V A:DC12V/DC24V/ AC220V/AC110V
    Cooling way / Air cooling
    Cooling fan / 150
    Diameter of cooling fan mm 150
    Diameter of gas inlet/outlet mm EDФ6
    Power supply dimensions mm 158*75*68 158*75*68
    ozone tube dimensions mm 200*95*93 212*95*93
    Ozone tube weight Kg 0.75 0.82
    Power supply weight Kg 0.6 0.6
