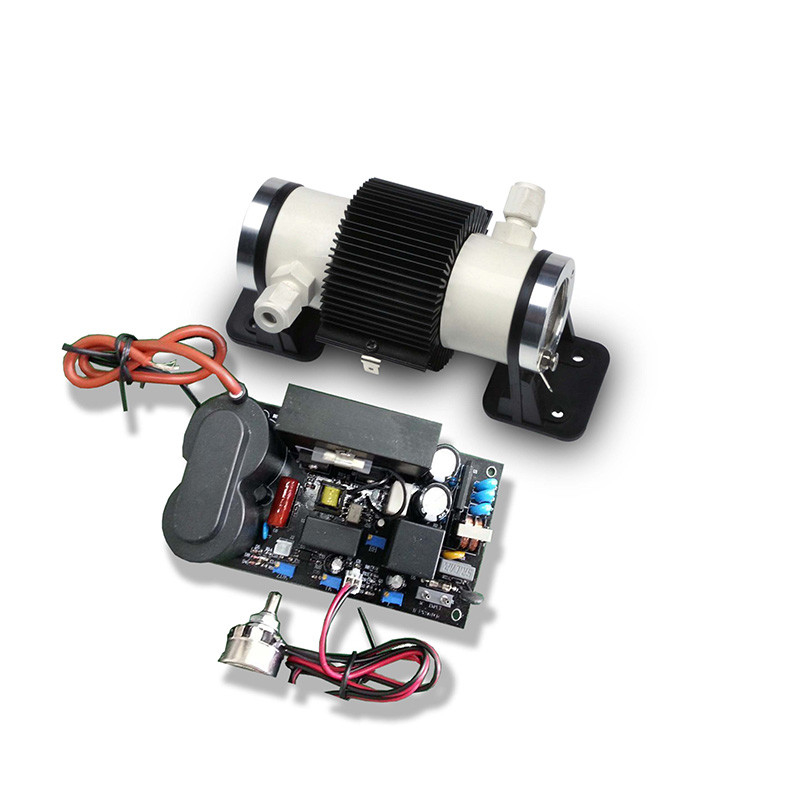

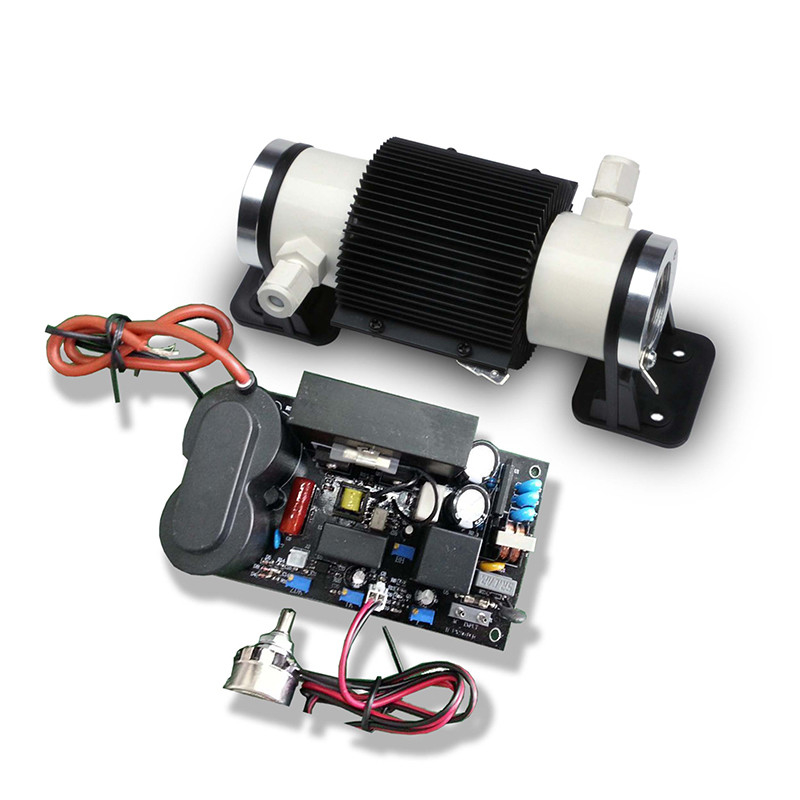

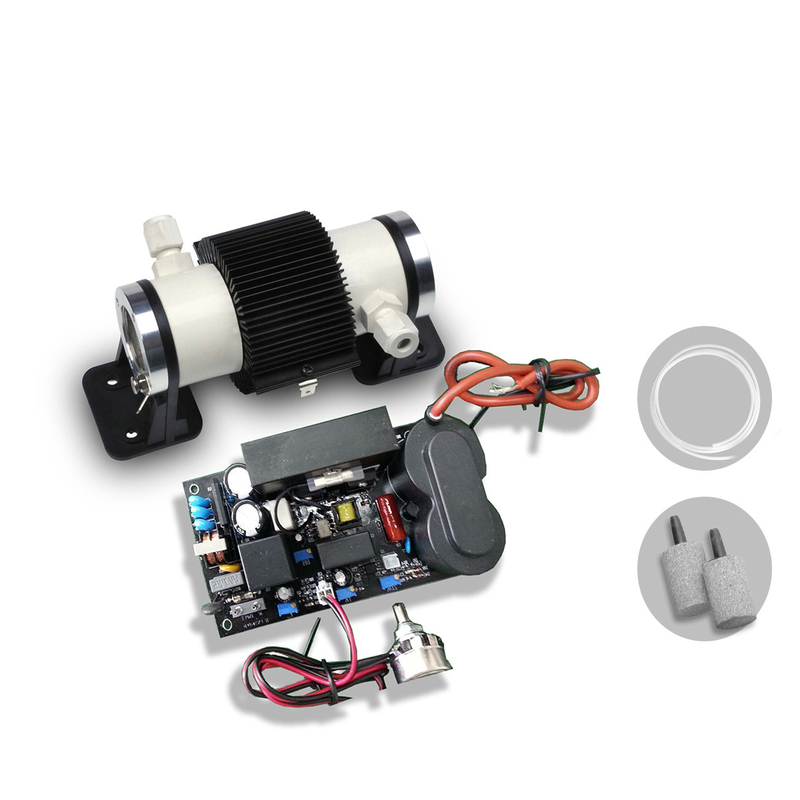

Air cooling ozone generator accessories ozone tube with circuit board for air and water treatment
Imported material of high pure ceramic, SS 316L of internal electrode, teflon connections which are best anti-oxidation material for ensuring several years running.
Features:
1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
2. Domestic patent product-got domestic patent in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
3. Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
5. Easy to maintain and install
Specifications
Item |
Unit |
CH-PTF*A-1 |
|||||
3GA-1 (12V,24V) |
3GA-1 (220V) |
3GA-1 (110V) |
5GA-1 (12V,24V) |
5GA-1 (220V) |
5GA-1 (110V) |
||
Power |
W |
≤80 |
≤80 |
||||
Diameter of cooling fan |
mm |
120 |
|||||
Diameter of gas inlet/outlet |
mm |
ED6 |
|||||
Power supply dimensions |
mm |
158*75*68 |
158*75*68 |
||||
ozone tube dimensions |
mm |
165×90*90 |
185*90*90 |
Item |
Unit |
CH-PTF*A-1 |
||||||
6GA-1 (12V,24V) |
6GA-1 (220V) |
6GA-1 (110V) |
7GA-1 (12V,24V) |
7GA-1 (220V) |
7GA-1 (110V) |
|||
Power |
W |
≤85 |
≤95 |
|||||
Diameter of cooling fan |
mm |
150 |
||||||
Diameter of gas inlet/outlet |
mm |
ED6 |
||||||
Power supply dimensions |
mm |
158*75*68 |
158*75*68 |
|||||
ozone tube dimensions |
mm |
200*90*90 |
212*90*90 |
Guangzhou OSUNSHINE Environmental Technology Co., Ltd., based on the parent company of Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. , which was established in 2006. Chuanghuan Ozone is a high-tech enterprise integrating industry and trade, focusing on the Development and Application of Ozone Tube, Ozone Generator (100mg-10kg / h ) Oxygen Machine(3-40LPM), Oxygen Concentrator Molecular Sieve .
