18-80g/Hr Ozone Water Cooling Ozone Tube With High Ozone Concentration

18-80g/Hr Ozone Water Cooling Ozone Tube With High Ozone Concentration

    • 18-80g/Hr Ozone Water Cooling Ozone Tube With High Ozone Concentration
    • 18-80g/Hr Ozone Water Cooling Ozone Tube With High Ozone Concentration
    • 18-80g/Hr Ozone Water Cooling Ozone Tube With High Ozone Concentration
    • 18-80g/Hr Ozone Water Cooling Ozone Tube With High Ozone Concentration
  • 18-80g/Hr Ozone Water Cooling Ozone Tube With High Ozone Concentration

    Product Details:

    Place of Origin: China Guangzhou
    Brand Name: Netech
    Certification: ISO
    Model Number: NT-PC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Safe double carton package with foam inside for protection
    Delivery Time: 3 to 5 days
    Payment Terms: paypal,western union,T/T,credit card
    Supply Ability: 1000 per weeks
    Contact Now
    Detailed Product Description
    Warranty: 1 Year MOQ: 1 Set
    Ozone Output: 18g/hr 30g/hr 40g/hr 60g/hr 80g/hr Adjustable: 20% To 100%
    Cooling Way: Internal / External Water Cooled Usage: Ozone Machine Assemble

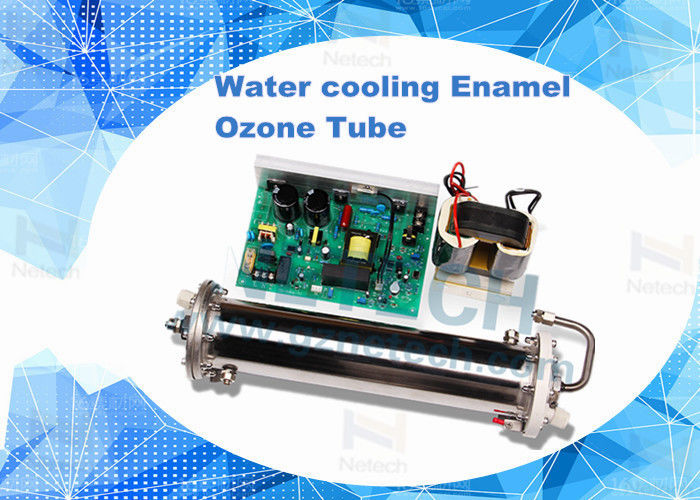

    18-80g/hr Ozone Water Tube Ozone Generator Parts With High Ozone Concentration





    Quick Detail



    ozone generator parts

    1. concentration up to 95%

    2. 20%-100% adjustable range

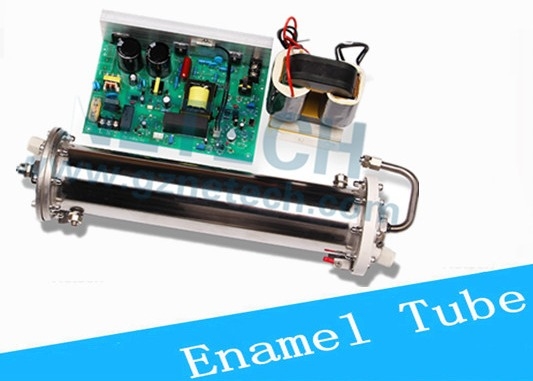

    3. water cooling ozone enamel tube

    4. high efficiency ozone output,





    Description



    MOQ 1 sets

    ozone produced medium enamel

    ozone tube weight 4.90kg

    adjustable range 20%-100%

    ozone produced method corona discharge

    voltage 220V/ 50Hz or 110V/60Hz

    cooling way internal & external water cooling

    warranty repair or change new parts during 12 month

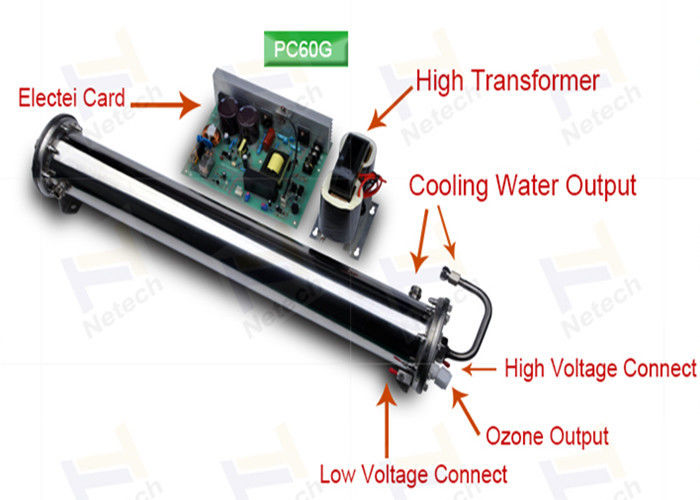

    Electrodes:



    Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless steel external electrode, it produces high concentration ozone output. It uses insulation materials for connections, for preventing creepage.





    Cooling way



    Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.





    Adjustable ozone output: 20-100%.



    Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.

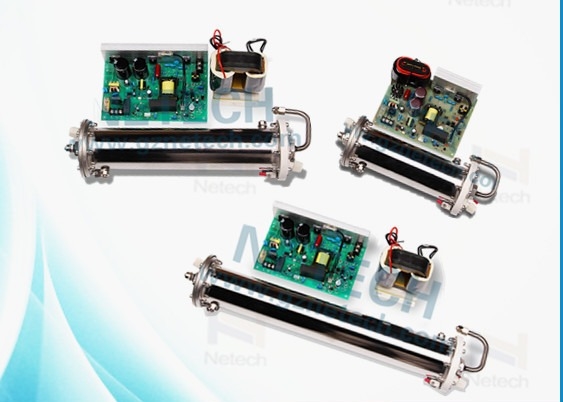

    CH-PC 18-80G/Hr



    Item Unit CH-PC18G CH-PC30G CH-PC40G CH-PC60G CH-PC80G
    Ambient temperature 23 23 23.9 23.9 24
    Ambient humidity % 38 38 37
    Oxygen flow rate LPM 1~4 2~8 3~10 5~17 8~20
    Ozone concentration Mg/L 112~78 123~72 123~70 120-72 118-74
    Ozone output G/Hr 6.7-18.7 14.8~34.6 22.1-42 36-73 56-88
    Power Kw ≤0.22 ≤0.3 ≤0.4 ≤0.6 ≤0.8
    Cooling method Water cooling for internal & external electrodes
    Cooling water flow rate LPM ≥2
    Cooling water temperature ambient temperature ± 8℃
    Diameter of gas inlet/outlet mm 1.Air inlet & ozone outlet: EDφ8mm
    Diameter of water inlet/outlet   EDφ10mm
    Adjustable range % 20-100
    Power supply V/Hz 110/220V 60/50HZ
    Fuse A 3 5 10
    Ozone tube dimension mm 285*160*125 340*160*125 460*160*125 600*160*125 705*160*125
    Power supply dimension mm 212*90*95 189*146*95 210*146*62
    Ozone tube weight Kg 2.5 3 3.6 4.9 5.45
    Power supply weight Kg 1 2.4





    Quality control



    Every procedure has personnel inspection.

    All the products must be tested and qualified before packaging.





    After sales service



    We provide 12 month free maintenance.

    The buyer should return the product in the original conditions to us and should

    bear the shipping costs for return.



    Question and answer


    Is ozone harmful to human body ?
    Once the ozone concentration fails to meet the hygiene and safety standard,
    we can notice with our sense of smell and dodge away or take actions to avoid
    further leakage.
    So far there is no one death reported caused by ozone poisoning.
    Does the ozone generator work efficently ?
    Undeniably, ozone can sterilize and remove odor and formaldehyde.
    It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
    bacteria efficently and resolve the harmful material in a short time.
