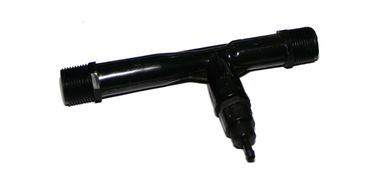

100 mm Length Venturi Injector 0.1-1 T / Hr Mixing Ozone For Water Treatment

100 mm Length Venturi Injector 0.1-1 T / Hr Mixing Ozone For Water Treatment

Products - Other Ozone Generator Subsidiary Facilities
  • High Light

    aquarium protein skimmer

    ,

    refrigerated air dryer

  • Model
    A25100
  • Material
    PVDF
  • Water Flow Rate
    0.1-1 T/Hr
  • Flexible Hose
    1/4’’
  • Length
    100 Mm
  • Application
    For Water Treatment
  • Place of Origin
    China
  • Brand Name
    Netech
  • Model Number
    NT-Venturi
  • Minimum Order Quantity
    1 piece
  • Price
    For further discussion
  • Packaging Details
    with froth in carton or wooden case
  • Delivery Time
    1 to 2 working days after payment confirmed
  • Payment Terms
    Paypal,T/T,Western union,credit card
  • Supply Ability
    3000 per weeks

100 mm Length Venturi Injector 0.1-1 T / Hr Mixing Ozone For Water Treatment

  • 100 mm Length Venturi Injector 0.1-1 T / Hr Mixing Ozone For Water Treatment
  • 100 mm Length Venturi Injector 0.1-1 T / Hr Mixing Ozone For Water Treatment
  • 100 mm Length Venturi Injector 0.1-1 T / Hr Mixing Ozone For Water Treatment
Get Price Contact Now

Venturi Injector 0.1-1 T / Hr Mixing Ozone For Water Treatment





Quick Detail:

Material PVDF, which is Corrosion, high temperature, durable,etc.
Usage Connect with ozone / oxygen generator
MOQ 1 piece
Application For water treatment, it needs to connect with ozone generator
Water flow Depends on the model
Capacity 0.5T/H -50T/H, depends on models



Venturi is designed to be used with an ozone generator for water treatment. It is made of anti-ozone material, PVDF. Connected to your existing filtration system it allows an ozone injection point, where the vacuum effectively sucking the ozone gases into the water flow



Various Applications:



1. Air purification, removing odors, smoke, mold, etc.

2. Water clean for home, commercial, industrial used.

3. ozone for drinking water treatment and bottling clean.

4. ozone for aquaculture water purification.

5. ozone for removing iron and manganese.


Specification:



Marks Model

Quantity

(PC)

Size

(mm)

 100 mm Length Venturi Injector 0.1-1 T / Hr Mixing Ozone For Water Treatment 0
1 A12057 1 57
2 A25100 1 100
3 A32235 1 235
5 A48275 1 275
6 A58295 1 295

Model: A12057
Material:PVD
Water flow rate:0.05-0.25 T/Hr
Specification:

1. Inlet & Outlet diameter 1/5'' external screw thread

2. Valve bonnet of Gas Inlet is 1/8’;

3. flexible hose is 1/4’’;

4. Length: 57 mm

Model: A25100
Material:PVDF
Water flow rate: 0.1-1 T/Hr
Specification:

1. Inlet & Outlet diameter 1/2’'external screw thread

2. Valve bonnet of Gas Inlet is 1/4’;

3. flexible hose is 1/4’’;

4. Length: 100 mm

Model : A32235
Material: PVDF
Water flow rate:3-10 T/Hr
Specification:

1. Inlet & Outlet diameter 1’'external screw thread.

2. Valve bonnet of Gas Inlet is 1/2’;

3. flexible hose is 3/8’

4. Length: 230 mm

Model: A25152
Material: PVDF
Water flow rate: 1~3 T/Hr
Specification:

1. Inlet & Outlet diameter3/4’'external screw thread

2. Valve bonnet of Gas Inlet is 1/4’;

3. flexible hose is 1/4’’;

4. Length: 152 mm

Model: A48275
Material: PVDF
Water flow rate:10~25 T/Hr
Specification:

  1. Inlet & Outlet diameter 1.5’' screw thread
  2. Valve bonnet of Gas Inlet is 1/2’;
  3. flexible hose is 1/2’’;
  4. Length: 275mm

Model: A58295
Material: PVDF
Water flow rate: 25~50T/Hr
Specification:

1. Inlet & Outlet diameter 2’' screw thread

2. Valve bonnet of Gas Inlet is 1.25’;

3. flexible hose is 1/2’’;

4. Length: 295mm



Application:



1. All kinds of factories and enterprises clean and cleanion, food factory, beverage factory, mineral water factory, pharmaceutical factory, health products factory workshop, warehouse, packing material room, buffer room, locker room, food antisepsis etc.

2. Public places cleanion, clean, removing odor:Organs and units, school, nursery school, office, classroom, conference room, hall, restaurant, dormitory, recreation room, bathroom etc.

3.Warehouse and agriculturalproducts keep fresh and anti-corrosion:
Food, eggs, Chinese herbal medicine, fruits, vegetables, aquatic products, meat products, such as warehouse cleanion, clean, anticorrosion, preservation, remove residual pesticide, decomposition hormone.

4.Breeding industry clean, cleanion and deodorant:
Indoor chicken farm, pig farm, animal feed farm, aseptic inoculation and cultivation etc.

5.Archives and libraries: archives clean, mould proof, insect repellent, moth-proofing, etc.

6. Water treatment: tap water treatment, waste water treatment, waste water bleaching, color decoloration, reduce BOD and COD.
7. Waste air treatment: Odor removal, treatment aromatic hydrocarbon, Benzodiazepines etc.



 100 mm Length Venturi Injector 0.1-1 T / Hr Mixing Ozone For Water Treatment 1

Why choosing us?

1.Having 10 years production experienced .We are trusty business partner.



2.Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.



3.Venturi Production Capacity: 3000 pcs per month.



4.We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.



5.We supply OEM service according to customers' requests and give out professional suggestions.



Distributors Offer : Welcome to be our distributor.
