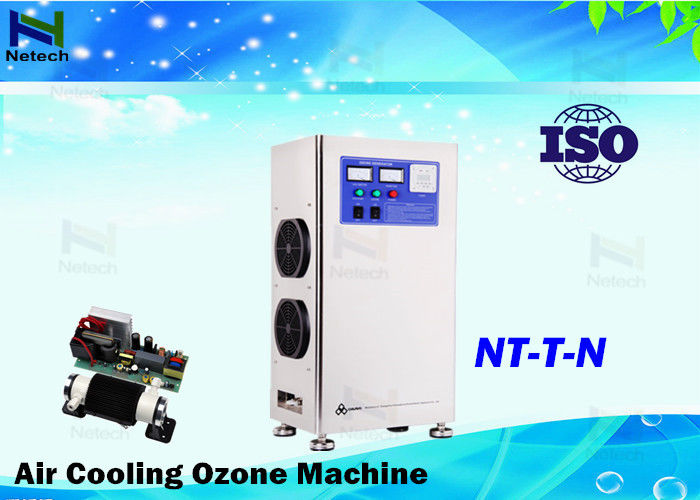

10g Air Cooling Corona Discharge Ozone Generator For Food And Beverage Industry

10g Air Cooling Corona Discharge Ozone Generator For Food And Beverage Industry

    • 10g Air Cooling Corona Discharge Ozone Generator For Food And Beverage Industry
    • 10g Air Cooling Corona Discharge Ozone Generator For Food And Beverage Industry
  • 10g Air Cooling Corona Discharge Ozone Generator For Food And Beverage Industry

    Product Details:

    Place of Origin: China
    Brand Name: Netech
    Model Number: NT-T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: For further discussion
    Packaging Details: Carton case / Wooden case
    Delivery Time: 3 to 5 days after payment
    Payment Terms: Western union, paypal, T/T, credit card
    Supply Ability: 1300 per weeks
    Contact Now
    Detailed Product Description
    Gas Source: Oxygen / Air Oxygen Flow Rate: 1-18LPM
    Material: Ceramic Tube Power Supply: 220V,50/60HZ
    Ozone Output: 2g/3g/5g/6g/10g/15g/20g Size: 360*260*610/400*300/770mm
    Cooling Way: Air Cooling Usage: For Air Purify And Water Treatment

    10G/H Air Cooling Corona Discharge Ozone Generator For   Food and Beverage Industry

    Quick details
    Brand Name:                    Netech
    Model Number:                NT-T
    Certification:                    domestic
    Ozone output way:          air cooling
    Warranty:                        one year warranty
    Adjustable rate:               20-100% adjustable ozone




    Description

    Gas sourceOxygen / Air
    Oxygen flow rate1-18LPM
    MaterialCeramic tube
    CoolingAir cooling
    Power supply220V,50/60HZ
    CommodityOzone water system
    Ozone output2g/3g/5g/6g/10g/15g/20g
    Size360*260*610/400*300/770mm



    How to use ?

    1. Before use this machine, put it in a stable flat place which can hold its weight.
    2. Use the power equipped with the machine;
    3. The machine use for air purification, firstly attach the silicone tube into the
    ozone outlet and then turn on the power;
    4. Set the timer and then come out ozone, and put the tube into the room.
    5. When use for room air purification, it requires nobody is present, after 30
    minutes people can walk into the room.
    6. If use for water treatment, the air stone should be attached into the silicone
    tube and put into the water.
    7. Attention,the machine should be placed higher than the water, incase that the water reflux occur.





    Control panel:



    Voltmeter, Ampmeter, Switch, Timer,

    Working light, Power light etc.
    Timer: One or Two recycle working time



    Applications:


    1. Medical treatment industry: clean sickroom, operating room, medical treatment equipment, aseptic room, etc
    2. Fruits and vegetables: keep fruits and vegetables fresh and store them
    3. Sea food factory: Remove smell of sea food factory and kill bacterias , clean production water supply.
    4. Slaughtering: Remove smell of slaughtering and kill bacterias, clean production water supply.
    5. Poultry factory: Remove smell of poultry factory and kill bacterias ,clean water for poultry feeding.
    6. Commercial use in House, hotel, Office, KTV, Super Market, Fruit shop etc.
    Air Purifier: Remove formaldehyde, benzene compounds, Smoke, Odors, Molds, Virus to fresh air.
    Water purifier: clean production Water supply.
    7. Bottle Water, Domestic Water, Well Water, Pool Water cleanion & clean



    Features:


    1. Builted in Domestic ed Product -Air cooling ceramic ozone generator
    2. Builted in Automatic air dryer, Feed dryed air or outside oxygen source
    3. Connect with external ozone injector for water treatment
    4. It can be Movable with wheels & Handles or Wall mounted.
    5. No breakdown with easy operation and maintenance.




    NT-T



    ItemUnitNT-T
    2G3G5G6G10G15G20G
    Oxygen flow rateLPM0.5~21~31.2~31.5~3.52.4~63.6~93~10
    Ozone concentrationMg/L28~5028~6532~6028~5632~6032~6038.9~42
    Ozone outputG/Hr1.5~3.04~5.04.3~5.75.0~5.88.6~14.513~1718.6~20
    PowerW115135160185260330400
    Air flow rate (Suggested)LPM40~6050~7550~90
    Compressed air pressureMpa0.025
    Fuse of power supplyA3555
    Sizecm36×26×6140×30×77
    Net Weightkg11.2511.3011.50182035



    Question and answer
    ♦ Is ozone harmful to human body ?
    Once the ozone concentration fails to meet the hygiene and safety standard,
    we can notice with our sense of smell and dodge away or take actions to avoid
    further leakage.
    So far there is no one dead reported caused by ozone poisoning.


    ♦ Does the ozone generator work efficiently ?
    Undeniably, ozone can clean and remove odor and formaldehyde.
    It is reported that ozone is a widely used bactericide.It can kill escherichia coli,
    bacimethrin efficiently and resolve the harmful material in a short


    Quality control
    Every procedure has personnel inspection.
    All the products must be tested and qualified before packaging.


    After sales service
    We provide 12month free maintenance.
    The buyer should return the product in the original conditions to us and should
    bear the shipping costs for return.

    Question and answer
    Is ozone harmful to human body ?
    Once the ozone concentration fails to meet the hygiene and safety standard,
    we can notice with our sense of smell and dodge away or take actions to avoid
    further leakage.
    So far there is no one dealth reported caused by ozone poisoning.
    Does the ozone generator work efficently ?
    Undeniably, ozone can clean and remove odor and formaldehyde.
    It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
    bacimethrin efficently and resolve the harmful material in a short time.
