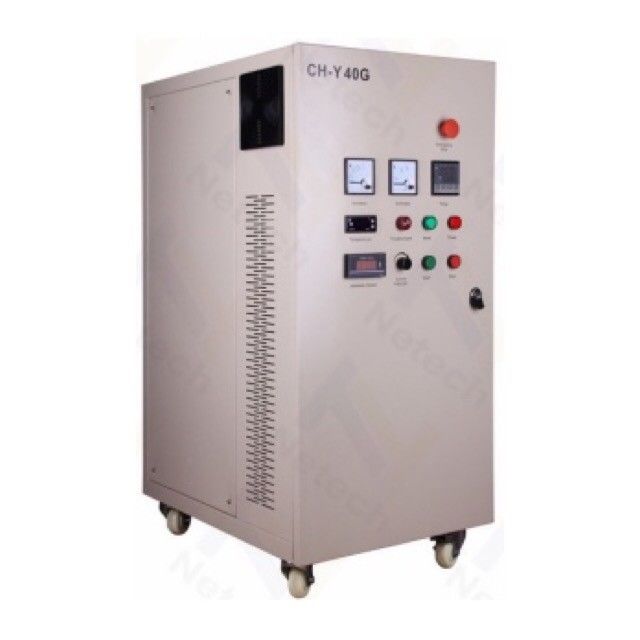

100g/hr Food / Beverage Production Line Bottled Water Treatment Ozone Generator
Quick details
Brand Name: Netech
Model Number: NT-Y
Certification: domestic
Ozone output way: corona discharge
Warranty: one year warranty
Adjustable rate: 20%-100% adjustable ozone
Cooling way: water cooling
Description
Gas source | Oxygen | ||
Oxygen flow rate | 1-18LPM | ||
Material | Enamel tube | ||
Cooling | Water cooling | ||
Power supply | 220V , 50HZ | ||
Commodity | Ozone water system | ||
Ozone output |
40g 50g 60g 80g 100g 200g 300g |
Features:
1. With built-in oxygen system, carbon steel sprayed with plastic or SS housing complete ozone generator
2. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time
3. Adjustable ozone range: 20%--100%, it can working automatic
4. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety
Control panel:
Ozone output adjuster, Voltmeter, Ampere, Timer, Cooling water temperature indicator, Ozone Ampere, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm
Specifications
Item | Unit | NT-Y40G | NT-Y50G | NT-Y100G |
Oxygen flow rate | LPM | 5~15 | 8~18 | 16-32 |
Ozone concentration | Mg/L | 90~56 | 90~60 | 90~58 |
Ozone output | G/Hr | 27~50 | 43~64 | 86~111 |
Power | Kw | ≤1.62 | ≤1.85 | 3.5 |
Fuse | A | 15 | 20 | 20 |
Cooling water flow | LPM | 48 | ||
Size | mm | 650×1030×1230 | 650×1030×1230 |
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug
Question and answer
♦ Does the ozone generator work efficiently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide.It can kill escherichia coli,
bacteria efficiently and resolve the harmful material in a short time.
And it won't produce second polluction.
