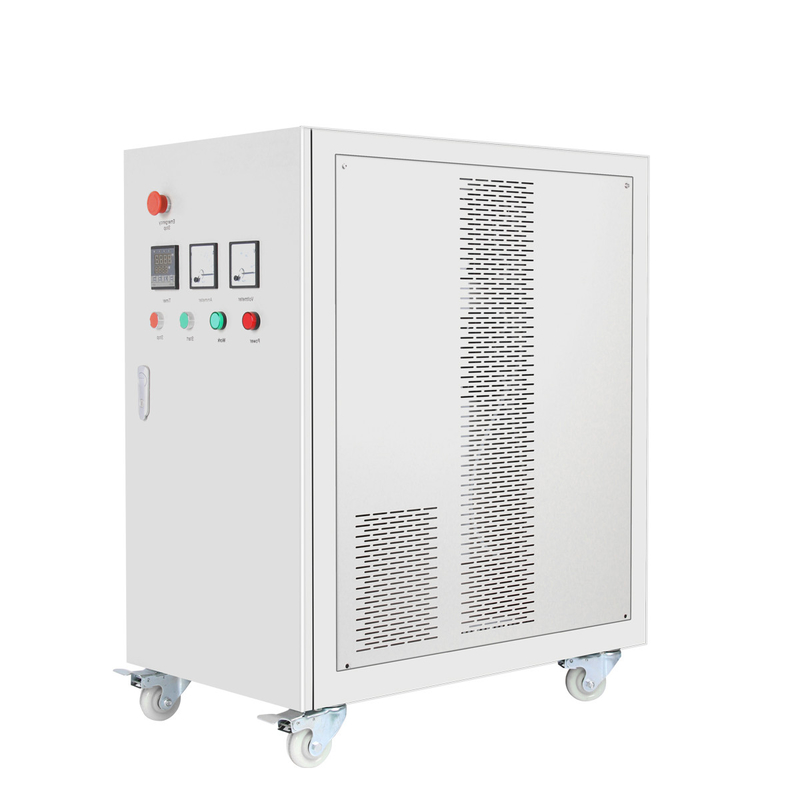

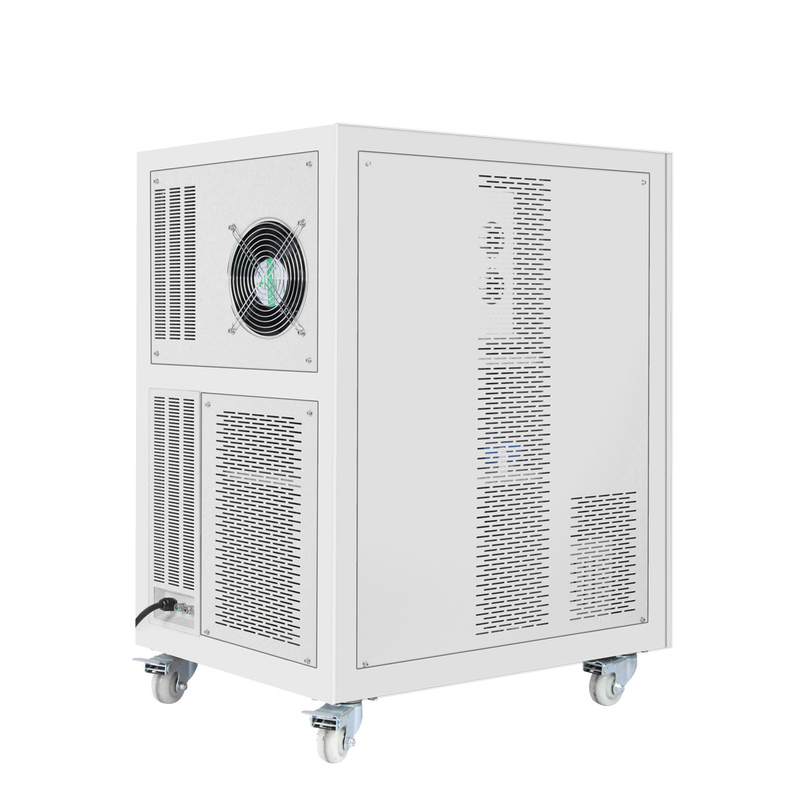

100g/hr Food / Beverage Production Line Bottled Water Treatment Ozone Generator
Quick details
Brand Name: Netech
Model Number: NT-Y
Certification: domestic
Ozone output way: corona discharge
Warranty: one year warranty
Adjustable rate: 20%-100% adjustable ozone
Cooling way: water cooling
Description
Gas source | Oxygen | ||
Oxygen flow rate | 1-18LPM | ||
Material | Enamel tube | ||
Cooling | Water cooling | ||
Power supply | 220V , 50HZ | ||
Commodity | Ozone water system | ||
Ozone output |
40g 50g 60g 80g 100g 200g 300g |
Features:
1. With built-in oxygen system, carbon steel sprayed with plastic or SS housing complete ozone generator
2. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time
3. Adjustable ozone range: 20%--100%, it can working automatic
4. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety
Control panel:
Ozone output adjuster, Voltmeter, Ampere, Timer, Cooling water temperature indicator, Ozone Ampere, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm
Specifications
Item | Unit | NT-Y40G | NT-Y50G | NT-Y100G |
Oxygen flow rate | LPM | 5~15 | 8~18 | 16-32 |
Ozone concentration | Mg/L | 90~56 | 90~60 | 90~58 |
Ozone output | G/Hr | 27~50 | 43~64 | 86~111 |
Power | Kw | ≤1.62 | ≤1.85 | 3.5 |
Fuse | A | 15 | 20 | 20 |
Cooling water flow | LPM | 48 | ||
Size | mm | 650×1030×1230 | 650×1030×1230 |
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug
Question and answer
♦ Does the ozone generator work efficiently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide.It can kill escherichia coli,
bacteria efficiently and resolve the harmful material in a short time.
And it won't produce second polluction.
Application of Ozone in Sterilization and Disinfection of Fruits and Vegetables
Fruits and vegetables can develop bacteria and mold that shorten their expiration dates and can lead to serious health problems.
Simple rinsing does not adequately disinfect mold and bacteria.
Thorough cleaning of fruits and vegetables is accomplished by atomizing water with ozone.
Ozone atomized products have a long storage time and will not deteriorate during transportation and on the shelf. This can reduce product spoilage by up to 50%, resulting in higher profits.
