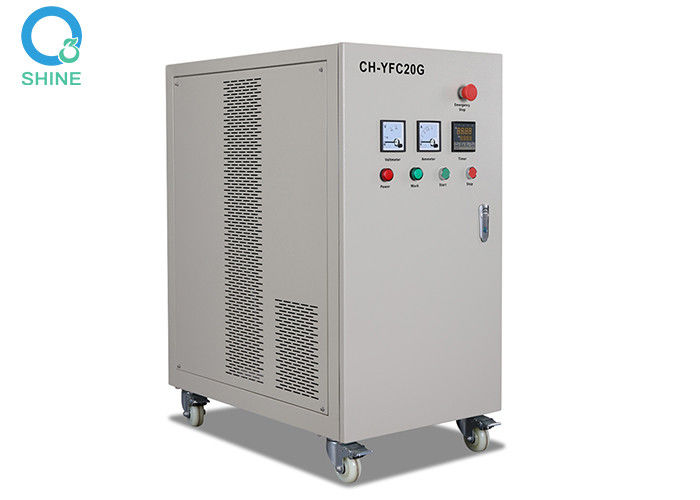

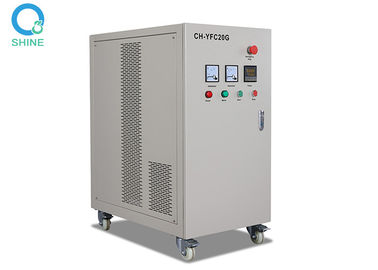

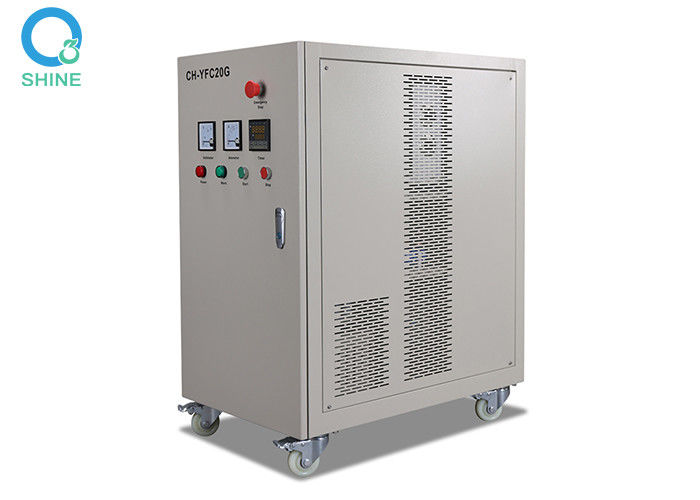

Adjustable Water Ozone Generator , Home Use Ozone Generator Machine
Features:
1. Carbon steel sprayed with plastic housing;
2. Built-in PSA high purity twelve tower oxygen sieve;
3. Built-in patent of product –Air cooling Ceramic ozone tube with high frequency electric board, high ozone concentration and stable ozone capacity, long life time;
4. Built-in Oil-free air compressor;
5. Built-in Air dryer and filters. To supply cool, dry, clean air source for air compressor and PSA oxygen concentrator;
6. Manual control, easy operation and maintenance.

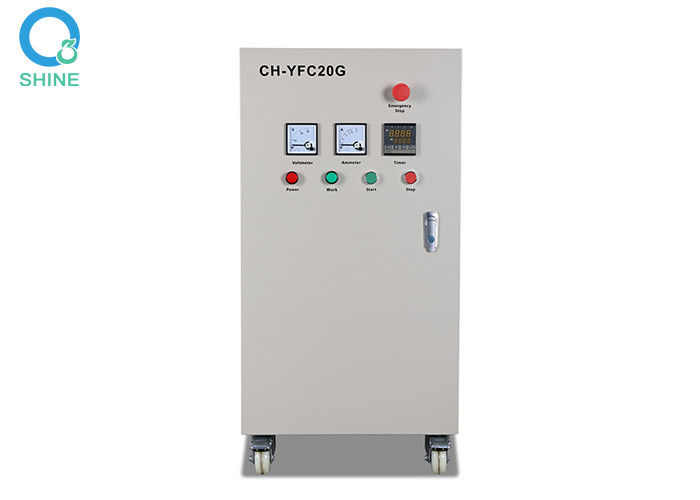

Control panel:
Voltmeter, Amp meter, Timer, Ozone Amp meter, Main switch, Power supply switch, Emergency stop, working light, Power light, Alarm
Control protection:
Over current protection
Electric leakage protection
Short circuit protection
Over heat of air compressor protection
Time delay system protection
Application
1. treatment industry: disinfect sickroom, operating room, treatment equipment, aseptic room, etc;
2. Laboratory: industrial oxidation of flavor and pharmaceutical intermediate;
3. Food processing industry: keep fruits and vegetables fresh and cold storage; rice & wheat storage; or storage room air sterilization.
4. Sea food factory: Remove smell of sea food factory and kill bacteria;
5. Slaughtering: Remove smell of slaughtering and kill bacteria;
6. Poultry factory: Remove smell of poultry factory and kill bacteria;
7. Green house: air sterilization and kill bacteria.
8. Agricultural: fish farm water treatment
9. Swimming pool water treatment
10. Drinking water treatment
Specifications and Price
| Item | Unit | CH-YFC5G | CH-YFC10G | CH-YFC15G | CH-YFC20G | CH-YFC30G |
| Oxygen flow rate | LPM | 3 | 3.5 | 5 | 5 | 10 |
| Ozone concentration | Mg/L | 48.5~52.3 | 48.5~52.3 | 49.5~51.2 | 38.9~41.7 | 53.2~56.1 |
| Ozone output | G/Hr | 5 | 10~11 | 14.8~15.4 | 18.6~20 | 32~34 |
| Power | KW | ≤0.48 | ≤0.81 | ≤0.924 | ≤1.00 | ≤1.23 |
| Current | A | 2.2 | 3.6 | 4.2 | 4.5~4.7 | 5.6±5% |
| Voltage | V | 220V/50HZ | ||||
| NW | KG | 64 | 86 | 89 | 92 | 97 |
| Size | cm | 45x50x84 | 50×66×95 | 45*93*118 | ||
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug
