High ozone concentration ozone generator for water olive oil treatment
Features:
1. Corona Discharge technology
2. Built in Domestic Patent-Ceramic ozone tube with electric board
3. Feed outside oxygen source only with high ozone concentration
4. Ozone adjustable range: 20%-100%
5. Digital Timer : one or two recycle working time
6. Stylish, small size, plug& play
7. Changeable plug for different country.
8. Output : 3G/Hr, 5G/Hr, 6G/Hr, 7G/Hr.
9. Suitable used for the line which required high ozone concentration
10. Components in the package: 2 meter teflon tube, 1*power cord, User manual

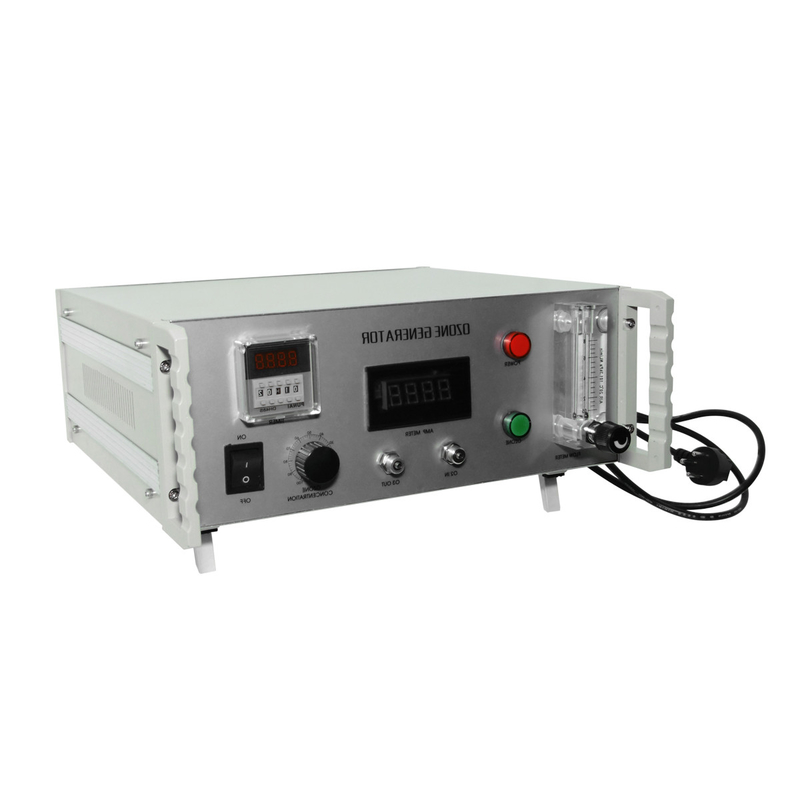

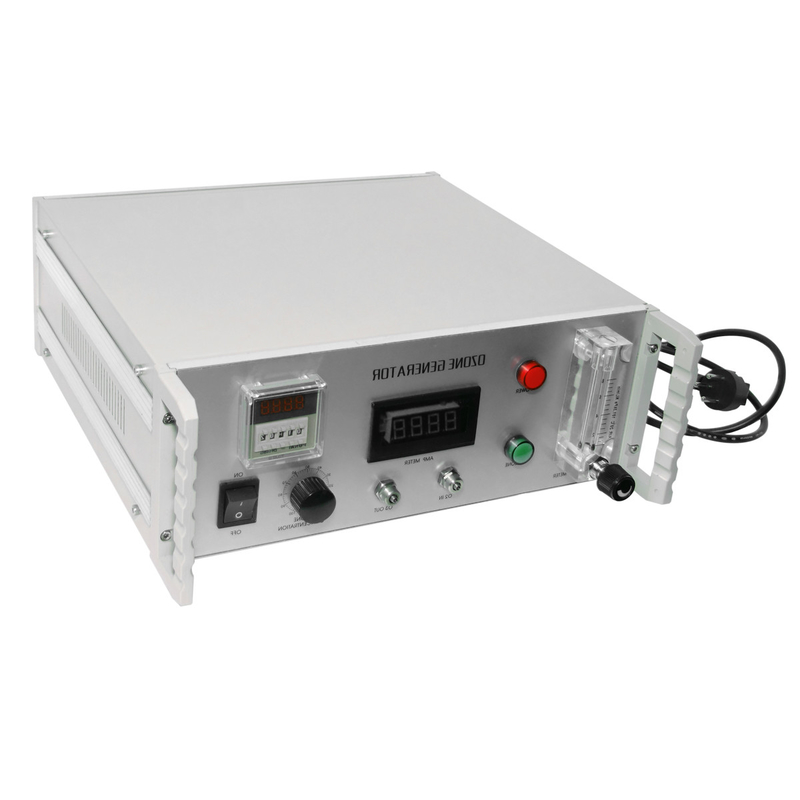

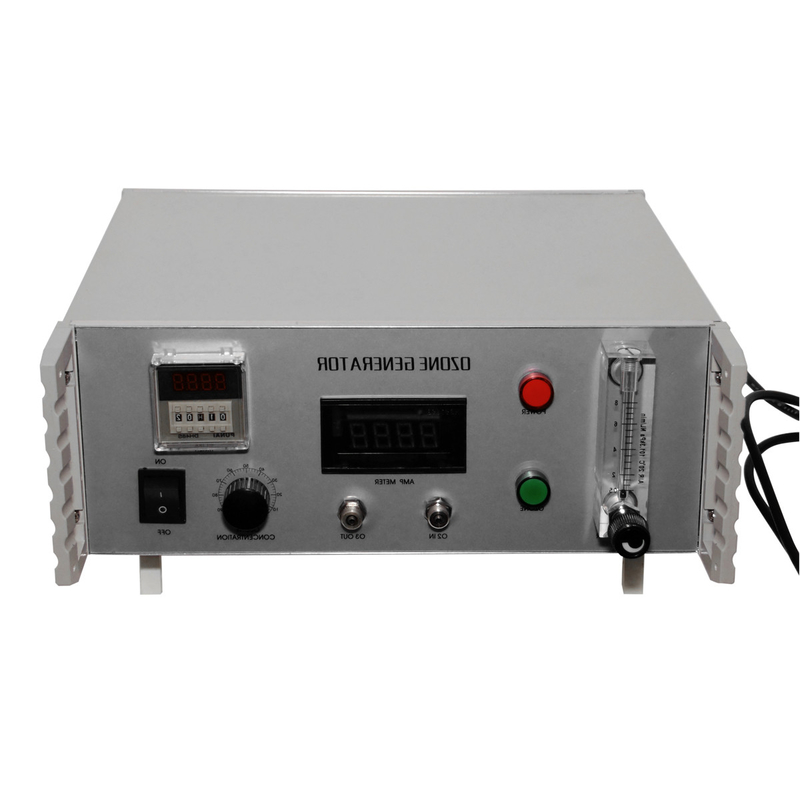

Control panel:
Flow meter, Ozone adjuster, Oxygen input, Ozone output, Ampmeter, Switch, Timer, Working light, Power light
Specification
Item |
Oxygen flow rate |
Power |
Output gas tube |
Fuse |
Size |
NW |
Model |
LPM |
W |
mm |
A |
mm |
Kg |
CH-ZTW 3G |
1-3 |
90 |
φ6 |
3 |
360*370*150 |
8.2 |
CH-ZTW 5G |
1-3 |
100 |
8.3 |
|||
CH-ZTW 6G |
2-5 |
120 |
8.4 |
|||
CH-ZTW 7G |
2-5 |
130 |
8.5 |
Notice:
1. This machine can only be use oxygen sources to operate.
2. The above data is for reference only, because the data will change with the use environment (temperature,air humidity, etc.).
3. We don’t have medical certificate for this equipment. If it is used for medical purposes, please make sure to operate it under the professional doctor.
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
Question and answer
1. Is ozone harmful to human body ?
re: Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one dealth reported caused by ozone poisoning.
2. Does the ozone generator work efficently ?
re: Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacimethrin efficently and resolve the harmful material in a short time.
