Laboratory Ceramic air purifier Ozone Generator With Meter /  ozone machines

Laboratory Ceramic air purifier Ozone Generator With Meter / ozone machines

  • High Light

    automotive ozone generator

    ,

    medical ozone generator

  • Place of Origin
    Guangdong China
  • Brand Name
    Netech
  • Model Number
    NT-ZTW
  • Minimum Order Quantity
    1 set
  • Packaging Details
    Carton case/sea wooden case
  • Delivery Time
    5-10 days after payment confirmed
  • Payment Terms
    EXW/FOB/CIF
  • Supply Ability
    2000sets/month

Laboratory Ceramic air purifier Ozone Generator With Meter / ozone machines



Laboratory Ceramic air purifier Ozone Generator With Meter / ozone machines






Quick details

Model Number:NT-ZTW
Brand name: Netech
Power Source: Electrical
Type: Ozone Generator
Ozone Output :.3G 5G 6G 7G
Working time:0-30 Mins Timer
Ozone Adjustable Range: 20% - 100%
Usage: using



Description

Installation Portable
Capacity (CFM) 98%
Power (W) 90
Voltage (V) 110
Net Weight 5.15Kg
Ozone Generator Timer 0-99 hours
Working Voltage 110V / 220V  50hz / 60hz
warranty 12 months from purchasing date
Ozone Generator Applications dental clinic , lab , hospital , home , industrial
Treatment  gynecological cervicitis , uterine
other usage operating rooms , tools clean , waste water treatment
Industrial used food factory working shop clean , packing clean







Applications:

Laboratory: Chemical oxidation for raw material of flavors and fragrances,small water treatment experiment
Pharmaceutical industry: Water,air conditioner, workshop, dressing room, clean room etc
: Ward,operating room, devices, clean room etc



how to use ?


1. Before use this machine,put it in a stable flat place which can hold its weight.

2. Use the power equipped with the machine;

3. The machine use for air purification,fisrtly attach the silicone tube into the

ozone outlet and then turn on the power;

4. Set the timer and then come out ozone, and put the tube into the room.

5. When use for room air purification, it requires nobody is present , after 30

minutes people can walk into the room.

6. If use for water treatment, the air stone should be attached into the silicone

tube and put into the water.
7. Attention, the machine should be placed higher than the water, incase that the water reflux occur.




Features:


  1. Corona Discharge technology
  2. Built in Domestic -Ceramic ozone tube with electric board
  3. Feed outside oxygen source only with high ozone concentration
  4. Ozone adjustable range: 20%-100%
  5. Digital Timer : one or two recycle working time
  6. Stylish, small size, plug& play
  7. Changeable plug for different country.
  8. Output : 3G/Hr, 5G/Hr, 6G/Hr, 7G/Hr.
  9. Suitable used for the line which required high ozone concentration

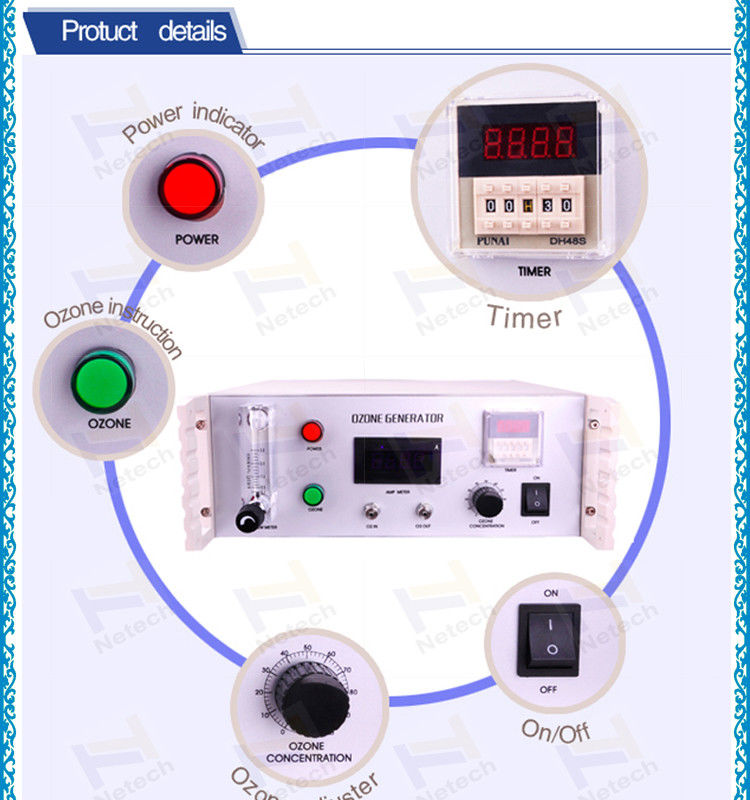

Control panel:

Flow meter, Ozone adjuster, Oxygen input, Ozone output, Ampere meter, Switch, Timer, Working light, Power light

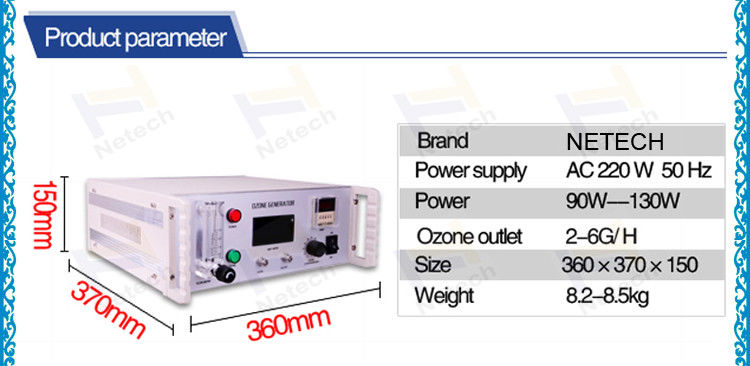

Specifications



Item Oxygen flow rate Ozone output Power Output gas tube Fuse Size NW
Model LPM G/Hr W mm A mm Kg
NT-ZTW 3G 1-3 3 90 φ6 3 360*370*150 8.2
NT-ZTW 5G 1-3 5 100 8.3
NT-ZTW 6G 2-5 6 120 8.4
NT-ZTW 7G 2-5 7 130 8.5







Above ozone capacity were tested under oxygen source

Net weight will be 10% different for different plug.





Quality control



Every procedure has personnel inspection.

All the products must be tested and qualified before packaging.





After sales service



We provide 12 month free maintenance.

The buyer should return the product in the original conditions to us and should

bear the shipping costs for return.



Question and answer



1. Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one death reported caused by ozone poisoning.



2.  Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficently and resolve the harmful material in a short time.
