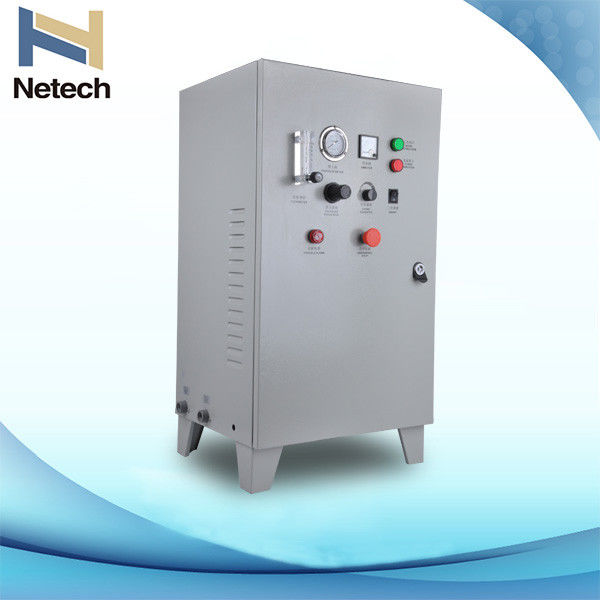

W Enamel Cold Food Processing Ozone Generator Water Cooling , o3 ozone equipment
|Ozone Output Way||Water Cooling|
|Warranty||One Year Warranty|
|Ozone Concentration||High Concentration|
|Cooling way||Air Cooling|
|Ozone output||10g 20g 30g 40g 50 g/hr|
|Commodity||Ozone Water Purifier|
|Timer||0-30 mins or working continuously|
|Functions||clean, Detoxication, Remove Odor...|
How To Use ?
1. Before use this machine, put it in a stable flat place which can hold its weight.
2. Use the power equipped with the machine;
3. The machine use for air purification, firstly attach the silicone tube into the
ozone outlet and then turn on the power;
4. Set the timer and then come out ozone, and put the tube into the room.
5. When use for room air purification, it requires nobody is present , after 30
minutes people can walk into the room.
6. If use for water treatment, the air stone should be attached into the silicone
tube and put into the water.
7. Attention, the machine should be placed higher than the water, incase that the water reflux occur.
Drinking water treatment, Spring water treatment ozone generator, Vegetable and fruits wash machine, Chemical oxidation, Decolour and bleach ozone machine, Ocean Ranch equipment, Ocean Ranch ozone generator, Aquaculture water clean ozone generator, Aquaculture equipment, Remove alga equipment, Aquaculture ozone generator, Aquaculture recycle water treatment equipment, Raw water aquaculture equipment, Connect with outside gas feeding ozone generator, Nursery aquaculture equipment
1. SS housing / carbon steel sprayed with plastic housing
2. It must connect with outside oxygen generator or oxygen tank
3. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time
4. Small in size, adjustable ozone range: 20%--100%
5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety
Ozone output adjuster, Flow meter , Pressure regulator, Voltmeter, Ammeter, Switch, Emergency stop, Working light, Power light, Alarm
|Oxygen flow rate||LPM||1~3||2~7||3~10||5~10||8~18|
|Cooling water flow rate||LPM||30||48|
Question And Answer
♦ Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
So far there is no one dead reported caused by ozone poisoning.
♦ Does the ozone generator work efficiently?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficiently and resolve the harmful material in a short time.
In order to ensure the best quality, every ozone generator has been strictly tested
We promise the good performance and all parts completely
according to your
Gold supplier--Guangzhou Netech Environmental Technology Co., Ltd ,15 years of experience in Water Treatment and Environment R&D and Engineering,
we are able to solve all your solutions in Environmental Protection and Water Treatment.
Every procedure has personnel inspection. All the products must be tested and qualified before packaging. AFTER SERVICE
We provide 12 month free maintenance. The buyer should return
the product in the original conditions to us and should bear
the shipping costs for return.
If any part is required to be replaced,the buyer should also pay for th costs of the parts to be replaced.
1. 3-7 days for portable ozone generator/ozone generator spare parts order;
2. 10-30 days for industrial/middle size ozone generator order;
3. Shipping could be courier, airline or sea
|A) Inner layer: plastic bag|
|B) Middle layer: EPE(Expandable Polyethylene)|
|C) Outer Layer: carton/composite wooden|
We are the trusty partner! Buy base on the trust !
