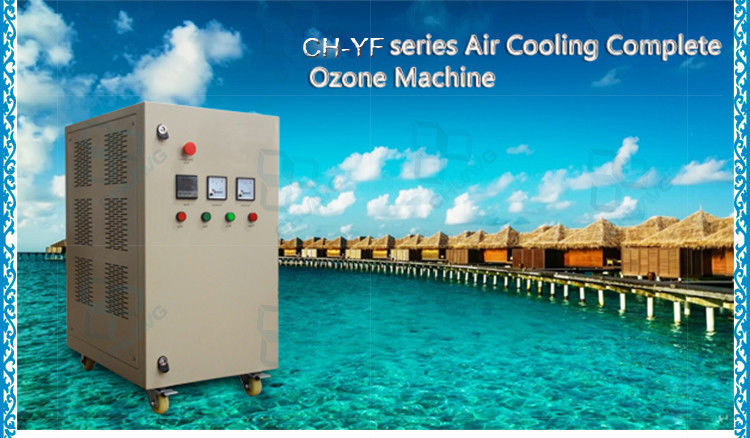

Air cool Ceramic Tube Food Ozone Generator / Storage Ozone Generator

Air cool Ceramic Tube Food Ozone Generator / Storage Ozone Generator

  • High Light

    odor free ozone generator

    ,

    food processing ozone generator

  • Oxygen Flow Rate
    3 - 10 LPM
  • Ozone Output
    5g - 30g
  • Power
    0.48 - 1.23 KW
  • Current
    2.2 - 5.6 A
  • Voltage
    220V/50HZ
  • Size Cm
    45 * 50 * 84 / 50 * 66 * 95 / 45 * 93 * 118
  • Place of Origin
    China
  • Brand Name
    Netech
  • Model Number
    NT-YFC
  • Minimum Order Quantity
    1
  • Price
    For further discussion
  • Packaging Details
    Wooden case with foam inside for protection
  • Delivery Time
    5 - 9 working days
  • Payment Terms
    T/T,paypal,western union,credit card, D/P, D/A, L/C
  • Supply Ability
    380 per week

Air cool Ceramic Tube Food Ozone Generator / Storage Ozone Generator

Air cool Ceramic Tube Food Ozone Generator / Storage Ozone Generator


   Quick details

   Model Number:                 NT-YFC
   Brand Name:                    Netech
   Ozone output way:           air cooling

Certification:                    domestic

Warranty:                        one year warranty
Adjustable rate:               20% -100% adjustable ozone




 Control panel:



 Voltmeter, Ammeter, Timer, Ozone Ammeter, Main switch, Power supply switch, Emergency stop,  working light, Power light, Alarm



How to use ?


1. Before use this machine, put it in a stable flat place which can hold its weight.

2. Use the power equipped with the machine;

3. The machine use for air purification, firstly attach the silicone tube into the

ozone outlet and then turn on the power;

4. Set the timer and then come out ozone, and put the tube into the room.

5. When use for room air purification, it requires nobody is present, after 30

minutes people can walk into the room.

6. If use for water treatment, the air stone should be attached into the silicone

tube and put into the water.

  7. Attention,the machine should be placed higher than the water, incase that the water reflux occur.




Applications:



1. treatment industry: clean sick room, operating room, treatment equipment, aseptic room, etc
2. Fruits and vegetables: keep fruits and vegetables fresh and store them
3. Sea food factory: Remove smell of sea food factory and kill bacteria, clean production water supply.
4. Slaughtering: Remove smell of slaughtering and kill bacteria, clean production water supply.
5. Poultry factory: Remove smell of poultry factory and kill bacteria,clean water for poultry feeding.
6. Commercial use in House, hotel, Office, KTV, Super Market, Fruit shop etc.
Air Purifier: Remove formaldehyde, benzene compounds, Smoke, Odors, Molds, Virus to fresh air.
Water purifier: clean production Water supply.
7. Bottle Water, Domestic Water, Well Water, Pool Water cleanion & clean


 Features:

1. Carbon steel sprayed with plastic housing;
2. Built-in PSA high purity twelve tower oxygen sieve;
3. Built-in  of product - Air cooling Ceramic ozone tube with high frequency electric board, high ozone concentration and stable ozone capacity, long life time;
4. Built-in Oil-free air compressor;
5. Built-in Air dryer and filters. To supply cool, dry, clean air source for air compressor and PSA oxygen concentrator;
6. Manual control, easy operation and maintenance.





Specifications



Item

Unit

NT-YFC5G

NT-YFC10G

NT-YFC15G

NT-YFC20G

NT-YFC30G

Oxygen flow rate

LPM

3

3.5

5

8

10

Ozone concentration

Mg/L

48.5~52.3

48.5~52.3

49.5~51.2

38.9~41.7

53.2~56.1

Ozone output

G/Hr

5

10~11

14.8~15.4

18.6~20

32~34

Power

KW

≤0.48

≤0.81

≤0.924

≤1.00

≤1.23

Current

A

2.2

3.6

4.2

4.5~4.7

5.6±5%

Voltage

V

220V/50HZ

NW

KG

64

86

89

92

97

Size

cm

45x50x84

50×66×95

45*93*118





Quality control

Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.


After sales service

We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.

Question and answer

♦ Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one dead reported caused by ozone poisoning.


♦ Does the ozone generator work efficiently ?

Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide.It can kill escherichia coli,
bacteria efficiently and resolve the harmful material in a short
